Step 4: Create a Basic Activation Configuration with Parameterized Template in Litmus Edge Manager

1min

To apply the Parameterized Template during activation, you need to create a basic activation configuration in LEM.

To create a basic activation configuration with Parameterized Template:

  1. Navigate to Activation > Configuration and click Add activation config icon.

    Activation > Configuration page
    Activation > Configuration page

  2. Start configuring the Limits, Licenses, and License Type. See Steps 1-2 of Set Up an Activation Configuration to learn more.
  3. To add a template, go to the Templates pane and click the Add template (+) icon.

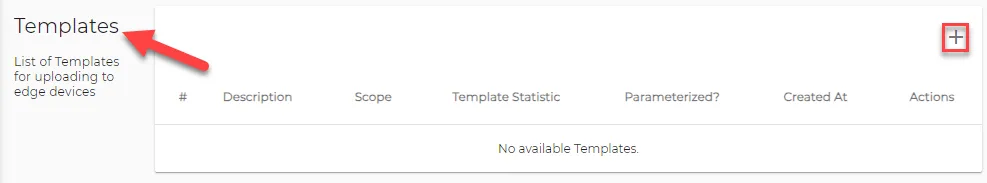

    Activation > Configuration > Templates pane
    Activation > Configuration > Templates pane

  4. The Template Select dialog box appears. Tick the checkbox for parameterized template and click SELECT.

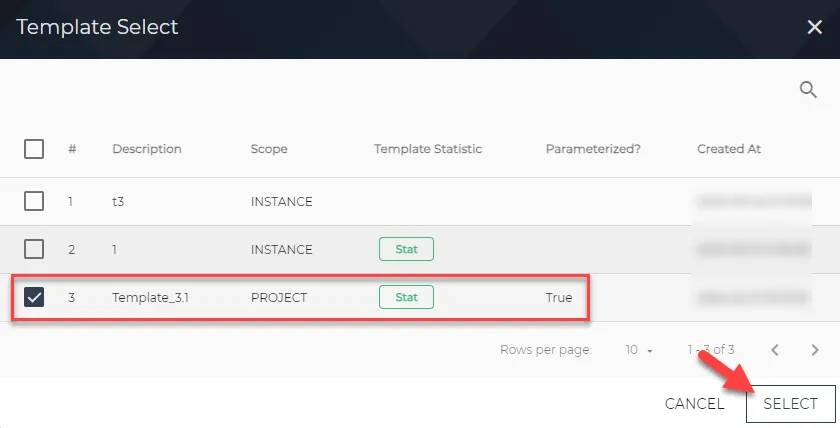

    Template Select dialog box
    Template Select dialog box

  5. When done configuring the Activation Configuration, click Save.

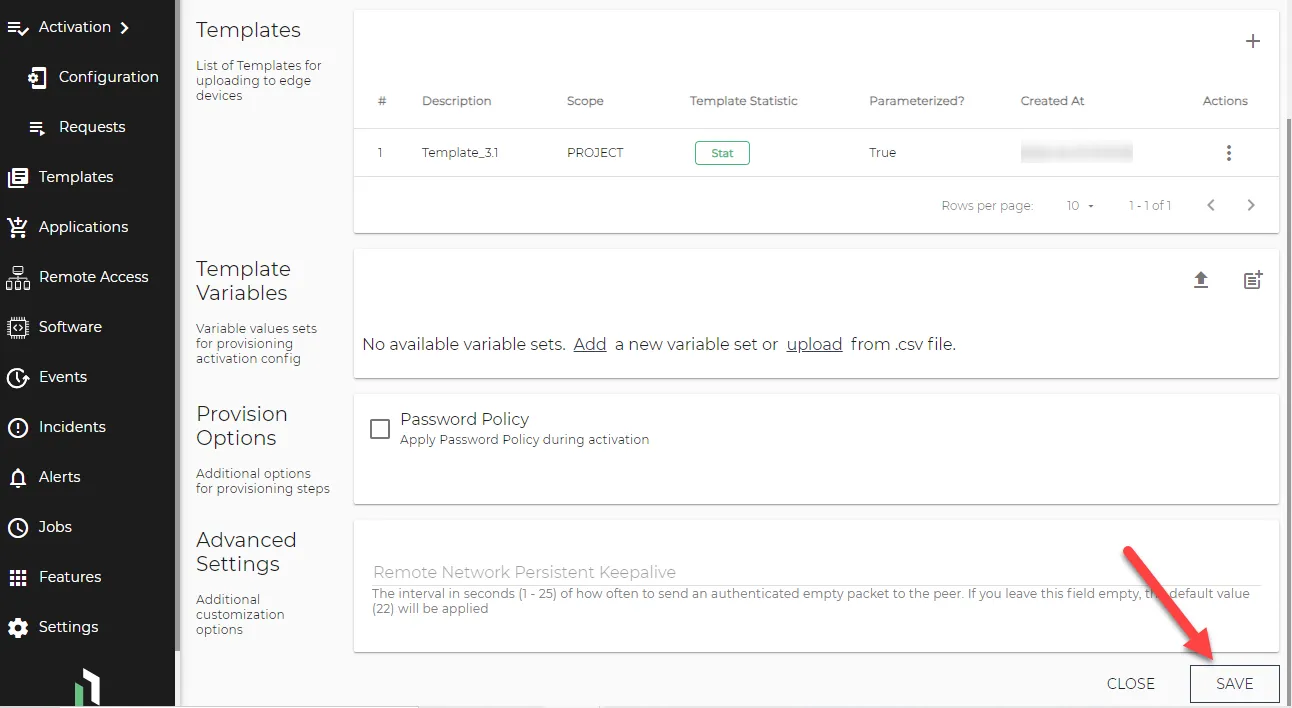

    Activation Configuration save button
    Activation Configuration save button

  6. Once saved, the activation code will then be generated in the Activation Code field. This code and the Activation URL will be needed when activating a Litmus Edge instance.

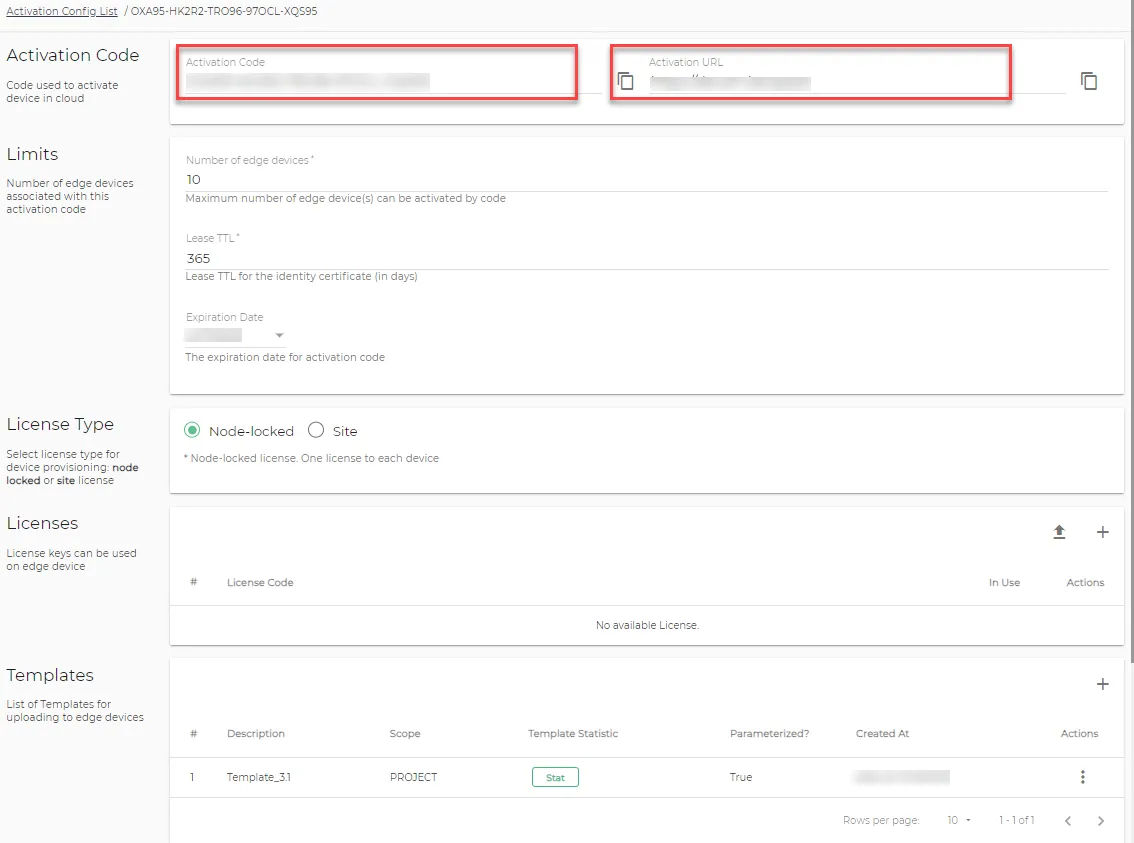

    Activation Configuration page
    Activation Configuration page


Next Step

After creating an activation configuration in LEM, you will Create an Activation Request in Litmus Edge.
