Admin Console Licenses

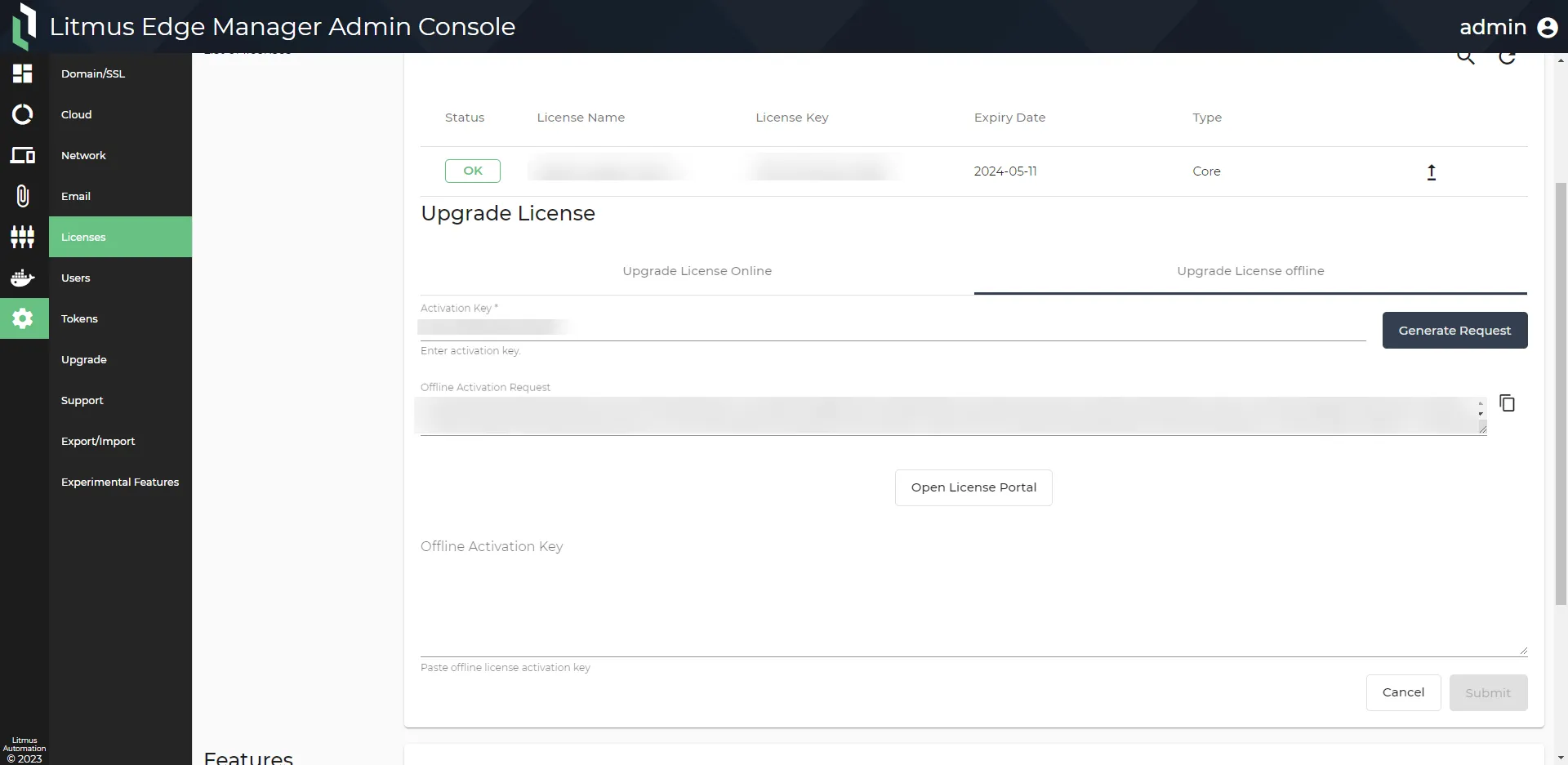

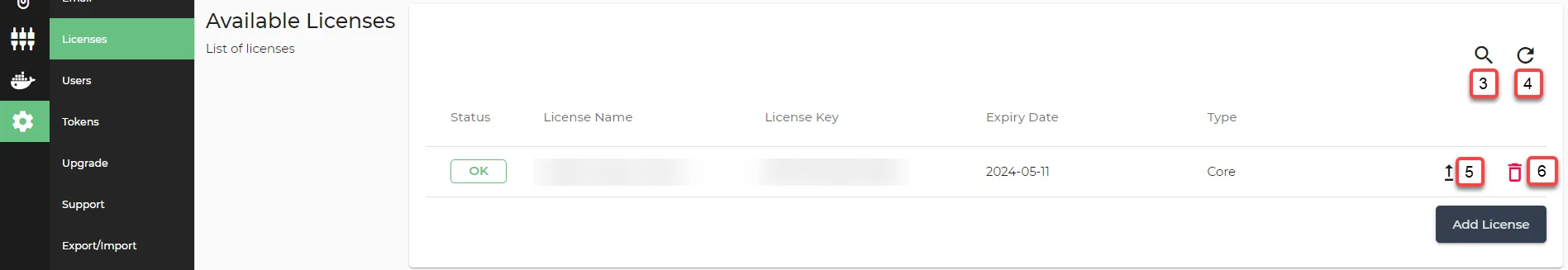

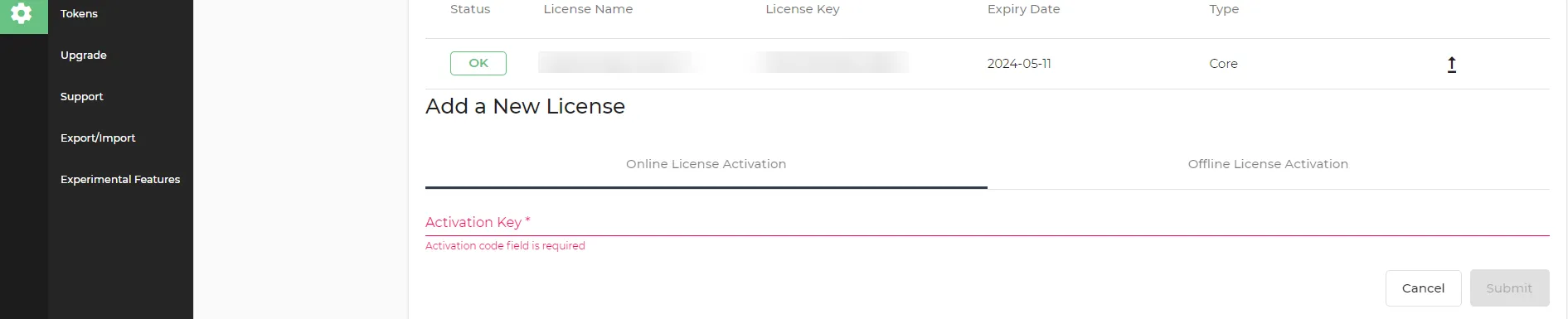

the licenses module provides information for the available licenses and features related to your plan for more detailed information on licenses, see site and node locked license overview for litmus edge manager docid\ jvibd0mbsj97zcpdfhab9 you have the following options for adding a license to add/upgrade a node locked license (online or offline), continue with the sections below to add a site license (offline only), see license server management docid 5u hnnsavs e5hqjeq0o contact your litmus representative to request a license key the license pane has three sections license settings switch between using a node locked or a site license for litmus edge manager available licenses view the applied licenses for litmus edge manager online license activation and upgrade license online activate (add) or upgrade a license if the litmus edge manager is connected to the internet offline license activation and upgrade license offline activate (add) or upgrade a license if the litmus edge manager is not connected to the internet features view the enabled features associated with your applied licenses warning before activating the license, ensure all hardware / vm configuration steps that can modify the media access control (mac) address (add/replace a network interface controller (nic) card) are finalized the license host id depends on the mac address for the device the mac address identifies the devices on a network changing the mac address will invalidate the license license settings a litmus edge manager (lem) license can be either node locked or site a node locked license is one that's locked onto the lem to enable the instance to be used at anytime without a connection to the license server a site license requires a reachable connection to a licensing server \[1] select license setting \[2] save license setting available licenses viewing, adding, and upgrading node locked licenses notes as of litmus edge manager version 2 10 1, the available licenses section is only visible when selecting a node locked license it is unavailable when a site license is selected as of litmus edge manager version 2 11 0 the add license and upgrade core license features are part of the available licenses section as of litmus edge manager version 2 14 0, you have the option of deleting an existing license in the available licenses section \[3] show filter / hide filter search by license \[4] refresh available licenses \[5] upgrade core license \[6] delete license only available for litmus edge manager version 2 14 0 and later you can add (activate) a new or upgrade an existing litmus edge manager node locked license contact your litmus representative to request a license key you can activate your node locked license either online or offline you can add a core or an add on node locked license while multiple add on node locked licenses can be added as needed, only one core license can exist important any license added (activated) /upgraded for a litmus edge manager is bound to its mac address in case the litmus edge manager has to be reinstalled, assign the same mac address again to be able to reuse all licenses activate or upgrade a node locked license online online activation allows you to add (activate) /upgrade a litmus edge manager node locked license directly with the litmus licensing system the user interface below is identical to upgrade license online to add(activate)/upgrade a license online ensure the litmus edge manager establishes a connection with the internet in the activation key field, enter the litmus edge manager node locked license key you received from the litmus customer success team the key has the following structure <4 digits> <4 digits> <4 digits> <4 digits> click submit after a successful add/upgrade, the license will be loaded and will be displayed in the available licenses and features section respectively activate or upgrade a node locked license offline offline activation allows you to add(activate)/upgrade a litmus edge manager node locked license if enterprise cybersecurity rules do not allow for direct access with the litmus licensing system through the internet the user interface below is identical to upgrade license offline before you begin make sure you have access to a web browser that is connected to the internet to complete this activation if your web browser is on a separate computer, use a text file to copy the host id, activation url and offline response step 1 obtain offline activation request from the offline license activation / upgrade license offline section enter the node locked license key in the activation key field click generate request the activation request appears in the offline activation request field next to the offline activation request field, click the copy activation request icon the activation request is copied to your clipboard click open license portal the licensing portal opens in a new tab step 2 obtain activation result from licensing portal from the licensing portal ( https //litmus activate id/offline ) tab paste the activation request in the activation request field, and then click make license (you may need to verify i'm not a robot ) the encoded license appears in the activation result field next to the activation result field, click the copy content to clipboard icon to copy the encoded license return to the offline license activation / upgrade license offline section step 3 submit offline activation key from the offline license activation / upgrade license offline section again paste the encoded license in the offline activation key field click submit the license is added features you can filter and view features that are available for your plan from the features section in the licenses module this section allows you to monitor which features are unlocked and available by the licenses you can filter for a specific feature or group of features \[6] show filter / hide filter search by features
