MQTT

1min

The MQTT tab displays the Data Topic for an edge device to which you can subscribe. See About MQTT﻿ for more info about MQTT.
Notes:
The Connected state in the MQTT tab indicates that the browser is connected to the Litmus Edge Manager MQTT server with your edge device's configuration settings (username, password, MQTT host), and that you have the correct edge device settings configured.
The connection status of the physical device can be found in the Devices list.
Refer to the following actions you can take on the Litmus Edge Manager User UI's Edge Devices Details MQTT tab.

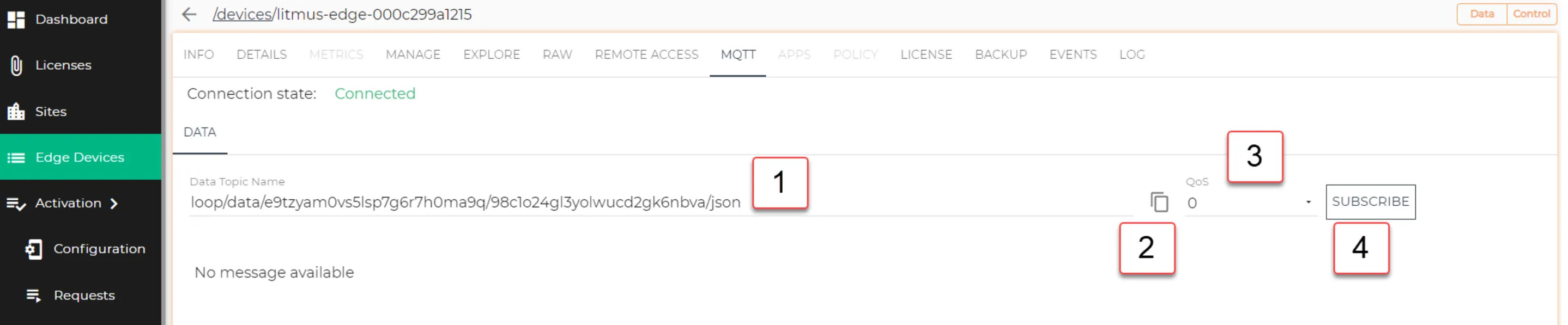

MQTT tab
﻿
Action
Details
[1] Modify Data Topic Name
Change the name of the data topic for the edge device.
[2] Copy Data Topic Name
Duplicate the current data topic name to the clipboard.
[3] Select Quality of service (QoS)
Choose the level of service for message delivery: 0, 1, or 2.
[4] Subscribe/Unsubscribe
Start or stop receiving messages from the selected data topic; note that messages will be unavailable if you navigate away from the MQTT tab.
﻿

Action	Details
[1] Modify Data Topic Name	Change the name of the data topic for the edge device.
[2] Copy Data Topic Name	Duplicate the current data topic name to the clipboard.
[3] Select Quality of service (QoS)	Choose the level of service for message delivery: 0, 1, or 2.
[4] Subscribe/Unsubscribe	Start or stop receiving messages from the selected data topic; note that messages will be unavailable if you navigate away from the MQTT tab.

Updated 06 Jan 2025
