GCP Pub/Sub Integration

9min
To configure the GCP Pub/Sub integration, complete the following steps.
Step 1: Add Device
﻿
Step 2: Add Tags
﻿
Step 3: Add Google Cloud Pub/Sub Connector
To add the Kafka connector in Litmus Edge:
Navigate to Integration.
Click Add a connector icon.
The Add a connector dialog box appears.
Select Google Cloud Pub/Sub provider from the drop-down list.
Complete the following information for the Google Cloud Pub/Sub connector as shown in the screenshot and click Update.

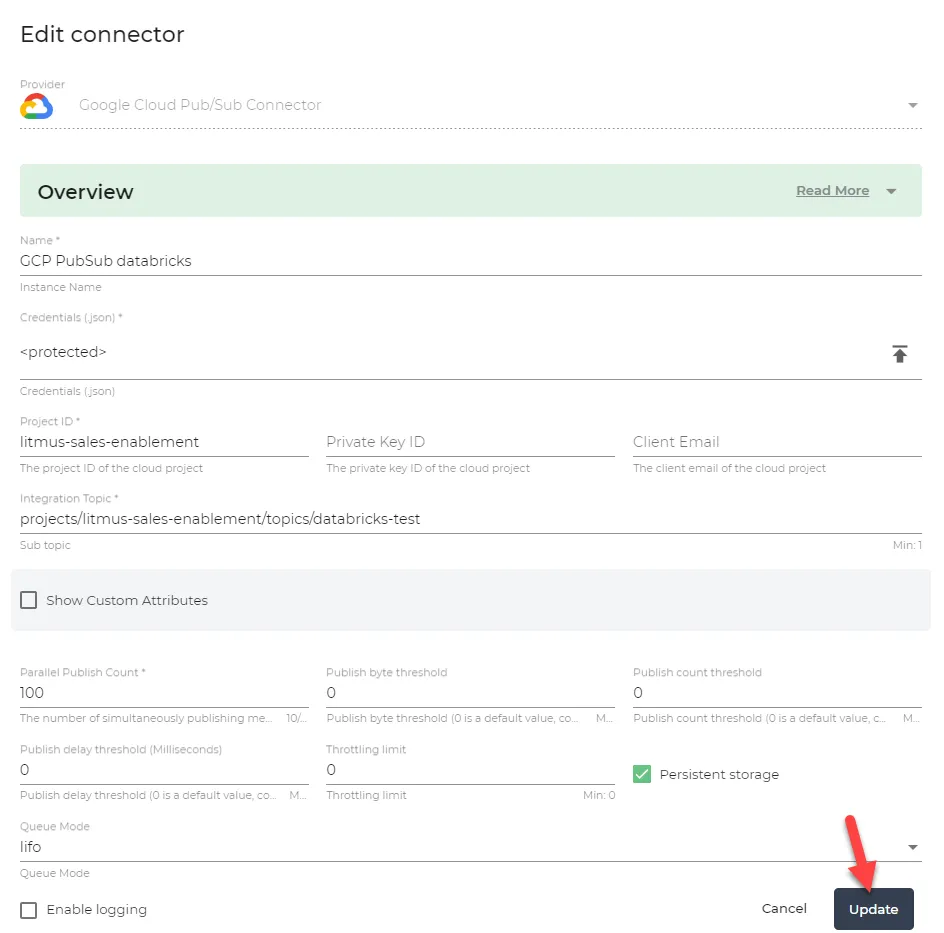

Edit a connector dialog box
﻿
Click the Google Cloud Pub/Sub connector tile.
The connector Dashboard appears.
Click the Topics tab.
Click the Import from DeviceHub tags icon and select all the tags to send data to Databricks.

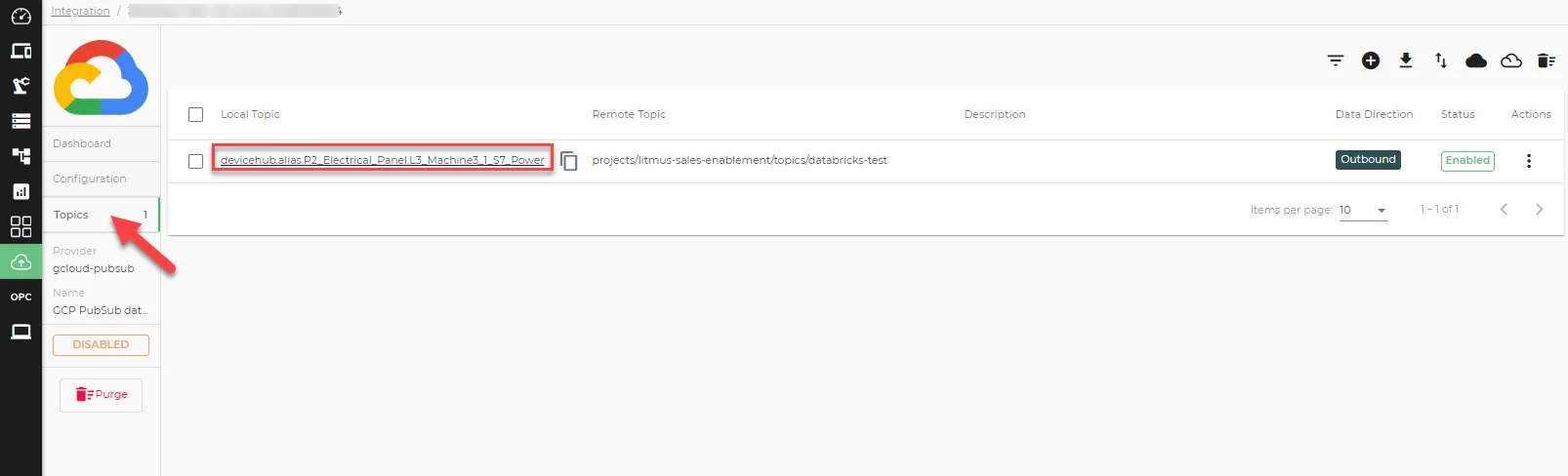

Topics tab in Google Cloud Pub/Sub connector
﻿
Step 4: Set Up Databricks for GCP Pub/Sub Streaming
In Databricks, you can configure GCP Pub/Sub connector parameters from a Python notebook file. You need to authenticate using service account credentials and specify Pub/Sub topic.
To set up Databricks for GCP Pub/Sub Streaming:
1. Navigate to Databricks workspace using your log in credentials.
2. Create a new notebook in Databricks. Follow the Databricks Pub/Sub Streaming Guide to set up Google Pub/Sub streaming.
3. Once the data is loaded, it will be in the following format:

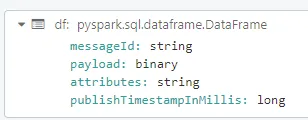

Dataframe format
﻿
The payload sent by LE will be in the payload field in binary format.
Example Notebook for GCP Pub/Sub Streams
Note: The user can create their own notebooks and customize them as needed. This example notebook will explain how to ingest the standard DeviceHub JSON Payload.
Open a new notebook and follow the steps:
1. Import the necessary libraries and dependencies to handle Pub/Sub data streams and process data using PySpark. ﻿
Python
import pyspark.sql.types as T
import pyspark.sql.functions as F
from pyspark.sql.types import StructType, StructField, StringType, IntegerType, DoubleType, BooleanType, TimestampType, LongType
from pyspark.sql.functions import from_unixtime
import pyspark.sql.types as T
import pyspark.sql.functions as F
from pyspark.sql.types import StructType, StructField, StringType, IntegerType, DoubleType, BooleanType, TimestampType, LongType
from pyspark.sql.functions import from_unixtime
﻿
2. Define the credentials and GCP Pub/Sub information that will be used to authenticate and connect to the Pub/Sub service.
Note: End-users should use secure methods of passing their Pub/Sub credentials.
Python
# for both topic and subscription topic, you only need to pass the topic and sub-topic name. Not the full path
# example = databricks-test
# not the full path in GCP PubSub, which is "projects/litmus-sales-enablement/topics/databricks-test"

authOptions = {"<GCP_PUBSUB_SA_KEY>"}

pubsub_topic = "<GCP_PUBSUB_TOPIC>"
pubsub_subscription = "<GCP_PUBSUB_SUB_TOPIC>"
projectId = "<GCP_PROJECT_ID>"
# for both topic and subscription topic, you only need to pass the topic and sub-topic name. Not the full path
# example = databricks-test
# not the full path in GCP PubSub, which is "projects/litmus-sales-enablement/topics/databricks-test"

authOptions = {"<GCP_PUBSUB_SA_KEY>"}

pubsub_topic = "<GCP_PUBSUB_TOPIC>"
pubsub_subscription = "<GCP_PUBSUB_SUB_TOPIC>"
projectId = "<GCP_PROJECT_ID>"
﻿
3. Configure Spark to read data streams from the Pub/Sub topic.
Note: Ensure to include the subscription ID, topic ID, project ID, and authentication options.
Python
df = (spark.readStream
  .format("pubsub")
  .option("subscriptionId", pubsub_subscription)
  .option("topicId", pubsub_topic)
  .option("projectId", projectId)
  .options(**authOptions)
  .load()
)
df = (spark.readStream
  .format("pubsub")
  .option("subscriptionId", pubsub_subscription)
  .option("topicId", pubsub_topic)
  .option("projectId", projectId)
  .options(**authOptions)
  .load()
)
﻿
This will output the following:
Dataframe format
﻿
Note: This guide covers the DeviceHub JSON Payload. Please update the notebook if you are sending a different payload to Databricks.
4. Define the schema that matches the expected structure of the incoming data and parse the Pub/Sub stream data accordingly.
This involves decoding the payload, extracting attributes, and structuring the parsed data into a DataFrame.
Python
schema = StructType([
  StructField("deviceName", StringType(), True),
  StructField("tagName", StringType(), True),
  StructField("deviceID", StringType(), True),
  StructField("success", BooleanType(), True),
  StructField("datatype", StringType(), True),
  StructField("timestamp", LongType(), True),
  StructField("value", DoubleType(), True),
  StructField("metadata", StringType(), True),
  StructField("registerId", StringType(), True),
  StructField("description", StringType(), True)
])

table = "<DATABRICKS_TABLE_NAME>"

query = (df
  .withColumn("payload", F.decode(F.col("payload"), "UTF-8"))
  .withColumn("attributes", F.from_json(F.col("attributes"), T.MapType(T.StringType(), T.StringType())))
  .withColumn('parsed_value', F.from_json(F.col('payload').cast('string'), schema))
  .withColumn("LE_timestamp", from_unixtime(F.col('parsed_value.timestamp')/1000, "yyyy-MM-dd HH:mm:ss.SSS"))
  .select("messageId","attributes","publishTimestampInMillis",'parsed_value.*', "LE_timestamp")
  .writeStream
  .format("delta")
  .outputMode("append")
  .option("checkpointLocation", "/tmp/delta/"+ table + "/_checkpoints/").toTable(table)
)
schema = StructType([
  StructField("deviceName", StringType(), True),
  StructField("tagName", StringType(), True),
  StructField("deviceID", StringType(), True),
  StructField("success", BooleanType(), True),
  StructField("datatype", StringType(), True),
  StructField("timestamp", LongType(), True),
  StructField("value", DoubleType(), True),
  StructField("metadata", StringType(), True),
  StructField("registerId", StringType(), True),
  StructField("description", StringType(), True)
])

table = "<DATABRICKS_TABLE_NAME>"

query = (df
  .withColumn("payload", F.decode(F.col("payload"), "UTF-8"))
  .withColumn("attributes", F.from_json(F.col("attributes"), T.MapType(T.StringType(), T.StringType())))
  .withColumn('parsed_value', F.from_json(F.col('payload').cast('string'), schema))
  .withColumn("LE_timestamp", from_unixtime(F.col('parsed_value.timestamp')/1000, "yyyy-MM-dd HH:mm:ss.SSS"))
  .select("messageId","attributes","publishTimestampInMillis",'parsed_value.*', "LE_timestamp")
  .writeStream
  .format("delta")
  .outputMode("append")
  .option("checkpointLocation", "/tmp/delta/"+ table + "/_checkpoints/").toTable(table)
)
﻿
5. Once the data is published to the Databricks table, you can query the table to verify that the data ingestion process is successful.

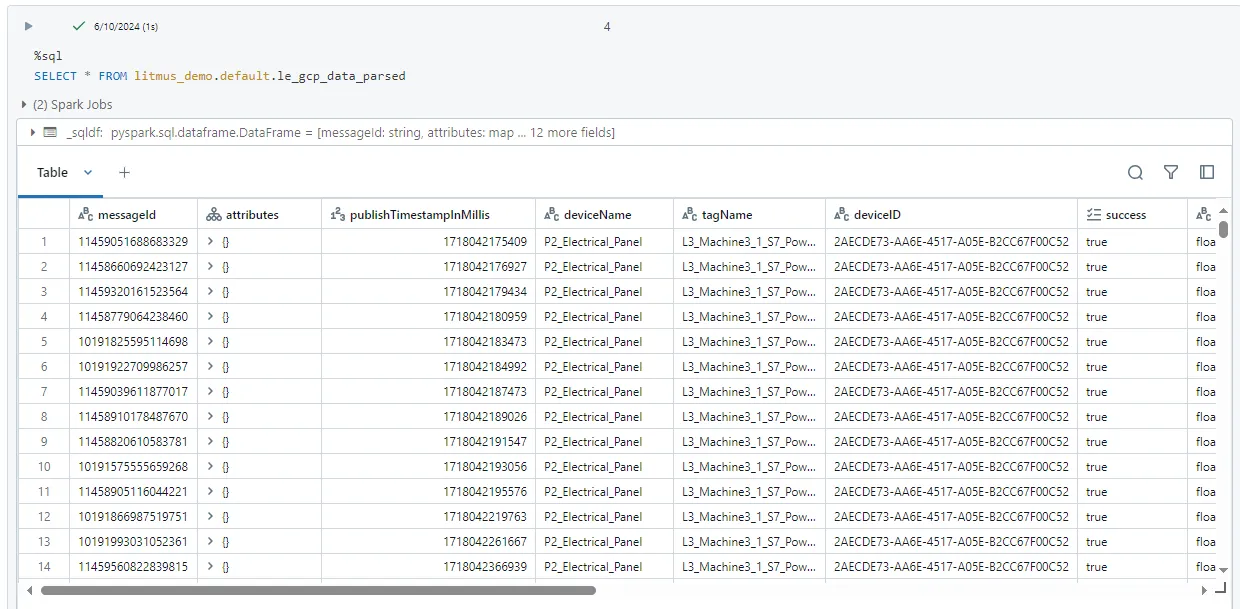

Databricks table
﻿
﻿
Updated 26 Jun 2024
