Network

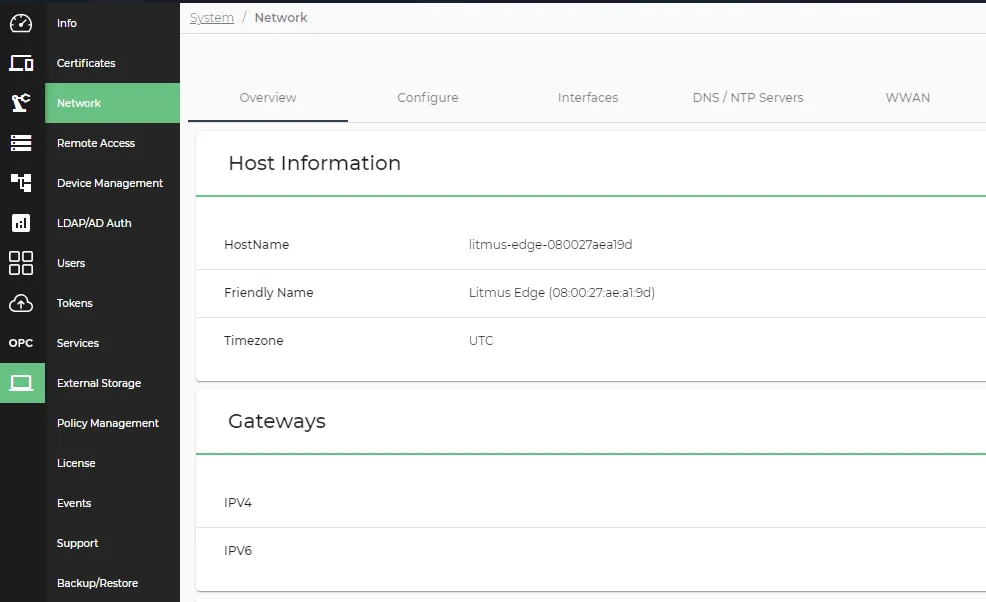

on the network pane, you can view and configure network settings access system network ui to access the system network pane log in to litmus edge from the navigation panel, select system > network the network pane appears the pane includes the following tabs overview includes the host information, gateways, interfaces list, modem interfaces, and docker interface sections where you can view information configure includes the host information, timezone, and docker interface sections where you can perform changes to the friendly name, country and docker binding ip address interfaces includes the interfaces section, where you can update the eth0 network and eth1 private network interfaces dns/ntp servers includes the fallback dns resolvers, ntp client status (available for litmus edge version 3 11 0 and later), ntp servers, and host file sections you can add, modify or delete dns resolvers, ntp servers, and the host file firewall (available for litmus edge version 3 11 0 and later) displays firewall rules that open ports for inbound communication you can create and edit firewall rules routes (available for litmus edge version 3 11 0 and later) allows you to control the routing of messages by adding static routes only ipv4 and ipv6 routes are supported wwan includes the modem configuration section, where you can modify the modem configuration, if available wi fi this tab only appears if your edge device supports wi fi you can select a network for your edge device to connect to you can also disconnect any device that appears on the wi fi pane litmus edge wi fi uses wpa for authentication to ensure a secure wireless network you must configure the wlan0 network interface in the interfaces tab before it appears here note if you are on litmus edge version 3 5 6 or earlier, the wi fi pane is a separate menu item under system in the navigation panel litmus edge includes two ethernet interfaces eth0 is always connected to the internet it is located in the dmz (demilitarized zone), a separate network that has restricted access to a company's internal network eth1 is connected to a private network with a dhcp server there are two optional wireless network interfaces wlan0 represents a wi fi network connection if your device supports wi fi, the interface appears on the wi fi pane in the system module, where you can establish a connection wwan0 represents a connection to an lte mobile network you must set up an lte modem for this type of connection if your device supports lte, after you configure the associated apn, you can view its information in the info pane in the system module under the modem interfaces section important for cloud deployment before activating the license, ensure all hardware / vm configuration steps that can modify the mac address (add/replace a network interface controller (nic) card) are finalized the license host id depends on the media access control (mac) address for the device the mac address identifies the devices on a network changing the mac address will invalidate the license next steps configure the network settings docid\ jw2n7vohntfagknzoylqc configure network interfaces docid\ vzke6bctdxbg0wsyreznf configure dns/ntp servers docid\ pz9d0wpbqbugyh0mh6wyx manage firewall rules docid 7epau9hxqovl546scor1q manage static routes docid\ co qnoa4j7r84ffbxezql configure a modem docid 23mjdswnvjrn6oki5ybix configure an lte modem docid\ jwamcqywzotkhkzzalvrf
