Configure DNS/NTP Servers

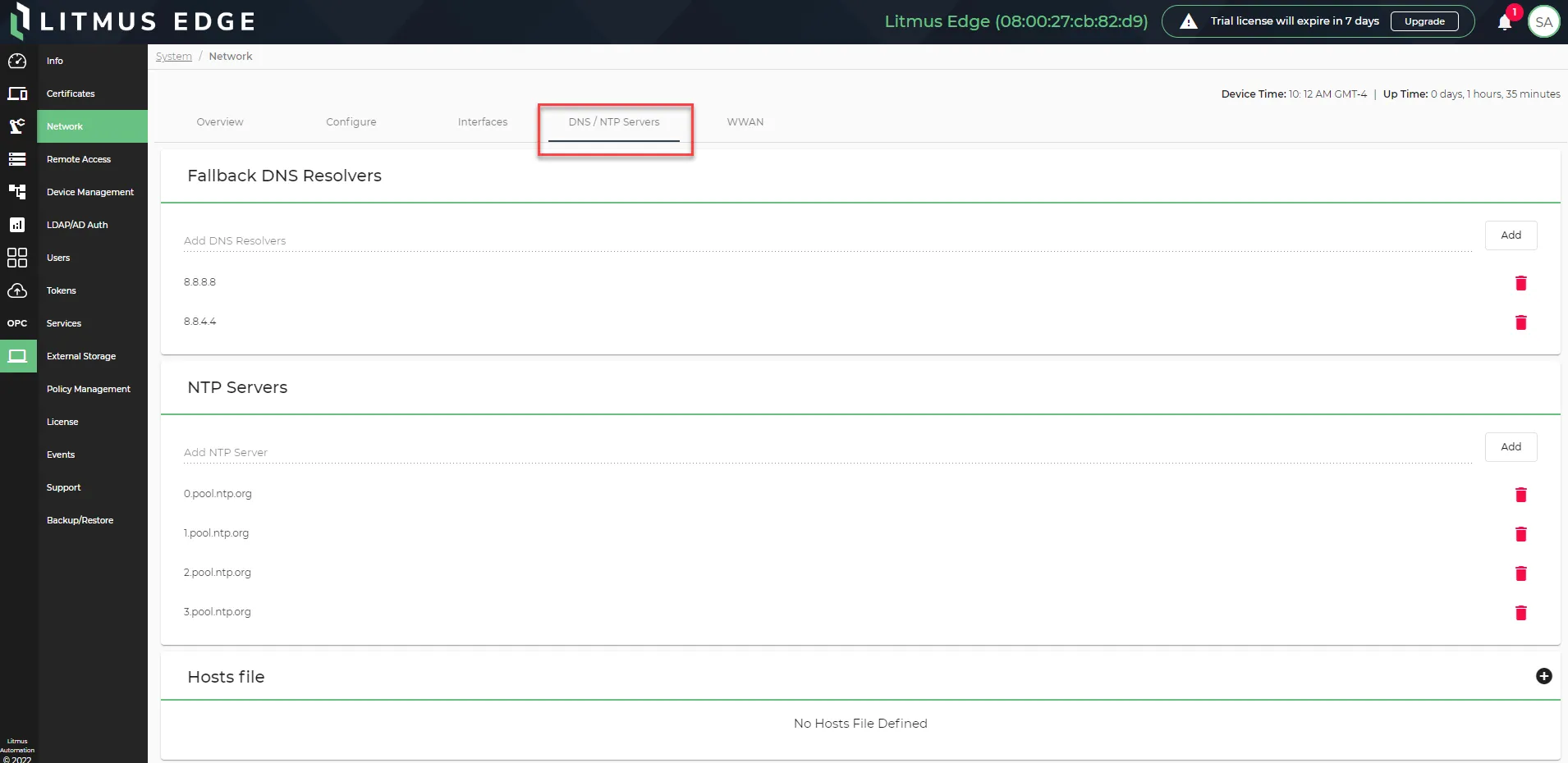

you can configure dns/ntp servers by navigating to system > network and clicking the dns / ntp servers tab before you begin before making changes to the dns/ntp servers, make sure your configuration is using the same network on which your device is located fallback dns resolvers the litmus edge software package installation includes a default configuration for the fallback dns resolvers that is only suitable for the open internet you must delete and replace the default entries with your own network information to remove a fallback dns resolver, click the trash icon next to the one you want to remove to add a dns resolver, enter the ip address for a dns resolver in the add dns resolvers field and click add ntp client status note this section is available for litmus edge version 3 11 0 and later the information provided in this section assists in assessing activation and license provisioning the following information is available status the current status of the ntp client server the location of the server stratum the hierarchy within the ntp network system time the difference between the device time and the ntp system time ntp servers the litmus edge software package installation includes a default configuration for the ntp server ports that is only suitable for the open internet you must delete and replace the default entries with your own network information to remove an ntp server, click the trash icon next to the one you want to remove to add an ntp server, enter the server port for an ntp server in the add ntp server field and click add for example 0 pool ntp org hosts file you can add a new host binding the host binding supplies configuration metadata, allowing you to set properties on an element or component for the host you can then generate events on the host to add a host binding, click the add icon, enter the details, and then click create ip address enter the ip address for the host names enter one or more names for the elements or components that generate events to remove a host binding, click the action menu for the host binding and select remove
