Services

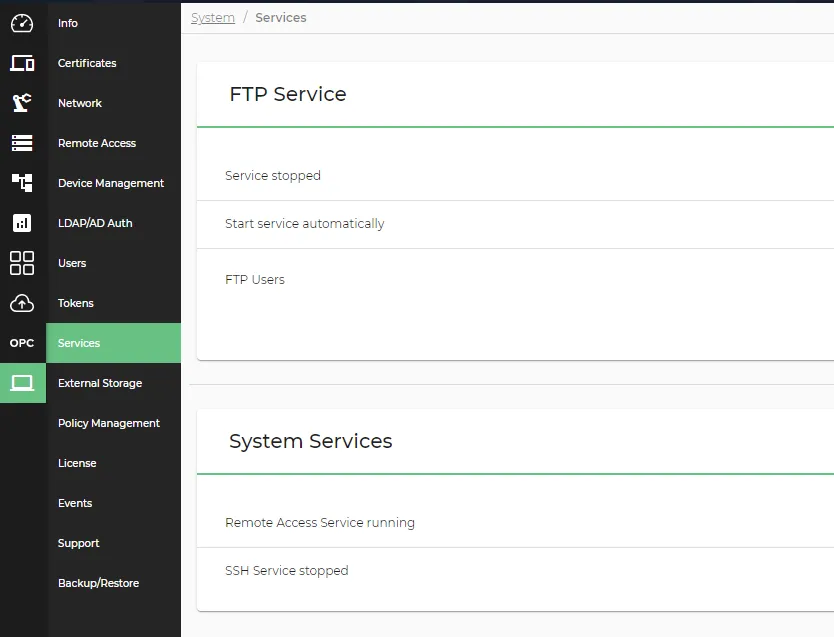

you can navigate to the services pane to manage services you can manage following services ftp (file transfer protocol) server ssh (secure socket shell) remote access services (no longer available as of litmus edge version 3 11 0) ftp server note if you reboot litmus edge, the ftp server will not start unless start service automatically is enabled and at least one ftp user is created ftp is a standard network protocol used to transfer files between a client and server on a computer network litmus edge supports ftp, which allows devices to securely exchange files with the edge device litmus edge is the server in this exchange and the client is running on the device that is on the same network as litmus edge ftp can be used to transfer data through a csv file or similar formats it also can be used to read a file from the drive and send data to the cloud the ftp client must be running on a device that is on the same network as litmus edge use the following details to configure the ftp client, to establish a connection to the litmus edge server host the ip address of the litmus edge device username the litmus edge ftp username password the password that was generated port the default ftp port is 21 the default ssh port is 22 sftp uses port 22 filezilla https //filezilla project org/ works well as the ftp client communicating with litmus edge to establish a connection with litmus edge (the ftp server) from filezilla, you enter the host, username, and password values (as described above), then click quickconnect once connected, drag files from their source location to the default ftp directory in litmus edge this directory is /ftp data system services important as of litmus edge version 3 11 0, remote access functionality is no longer available contact your account representative to learn more this section helps you manage remote access service and ssh service you can enable/disable these services from this section by default it is enabled access services ui to access the services pane log in to litmus edge from the navigation panel, navigate to system > services the services pane appears next steps manage ftp and system services docid\ v290priyfyisr9ywdfymx add an ftp user docid 7brk nih3pgczebydmjcw manage ftp users docid\ n3be d2xxv4djejpzx kh
