AB CompactLogix (Gen1)

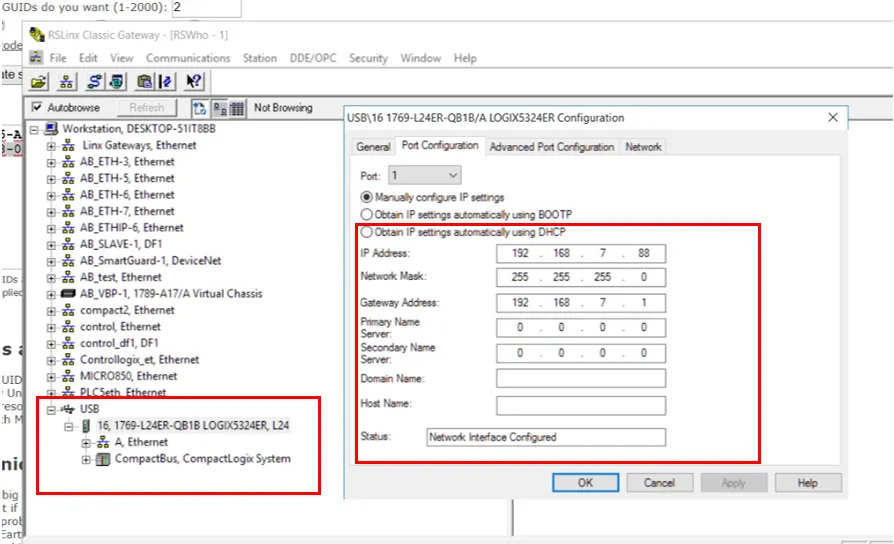

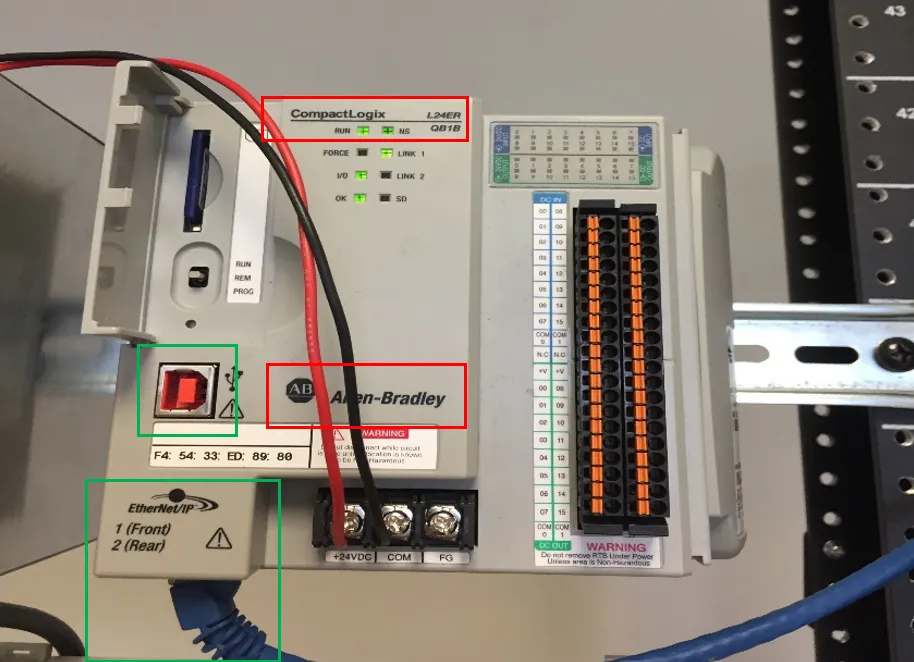

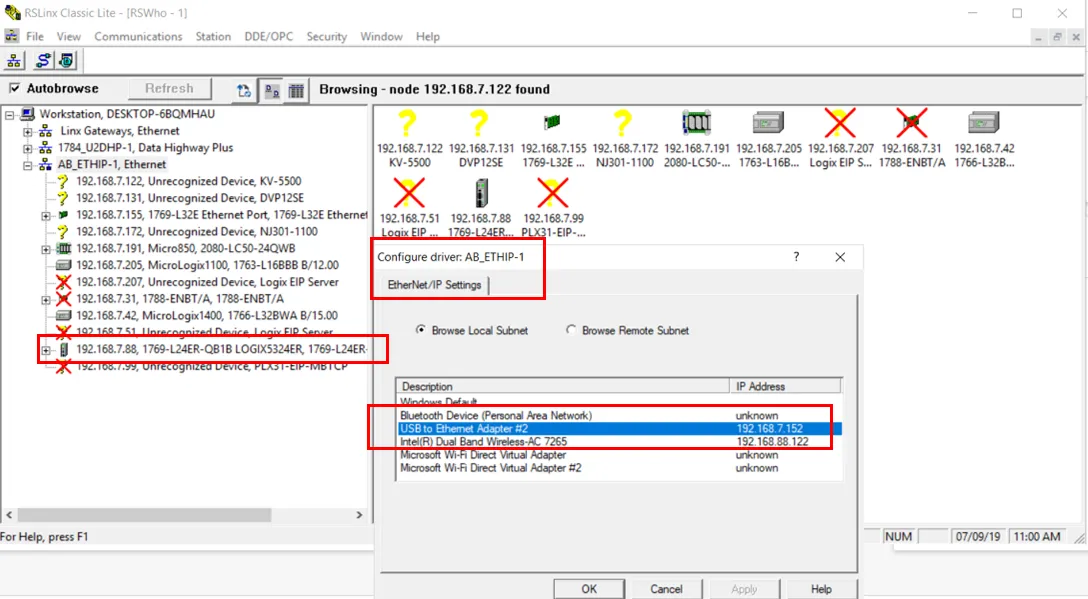

important this driver was deprecated in litmus edge version 3 5 2 we recommend using the gen 2 ab compactlogix ethernet freetag docid\ rnjtfl6l5lxb52iff6qjm review the following information for setting up and configuring the ab compactlogix (gen1) driver litmus edge compatible series 237,415 false true false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type to set up and configure this device in litmus edge, you will need to do the following step 1 set up and configure the plc device step 2 set up the plc device in litmus edge devicehub step 3 configure the list of registers step 1 set up and configure the plc device if the device is configured for ethernet access, find its network parameters otherwise, follow the steps below to configure your device 1\ note down the following information and refer to it when needed device ab compactlogix l24er qb1b communication i/f ethernet, usb refer to the following figure 2\ connect the device to a pc using a usb port 3\ launch rockwell's driver configuration tool, rxlinx classic, and add the smartguard usb driver 4\ right click the device and configure the module 5\ add driver ethernet/ip device 6\ choose adapter make sure it's the same subnet as the device 7\ detect the device step 2 set up the plc device in litmus edge devicehub configure the following parameters when you connect a device docid 3eyafppweuvmblcey17sq with this driver update default values to the specific setup of your device 174,380 false true false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type step 3 configure the list of registers when you add tags docid 8se7z3pmrfwl1nmzcwalx to the connected device, use the following tag/register mapping table note the browse icon displayed on the device tile means that this plc uses browse tags see add tags docid 8se7z3pmrfwl1nmzcwalx for more information certain device drivers do not have a list of register names in the devicehub add tag form these are free tag plcs for free tag requirements, see troubleshooting devicehub docid\ okfkycmkriryz8gtrqmh9 caution because this device belongs to a free tag plc, the case sensitive register name must be entered exactly as it is defined in the plc the device does not display a connected status until a tag with a correct register name is created 125,372 false true false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type false unhandled content type
