Browse Tags
The Browse Tags functionality allows you to search, select, and download selected tags available for a device.
Devices that support searching for device tags display a tag icon in the top-right corner of the device card.
Notes:
- Make sure the device you are searching has a status of CONNECTED in DeviceHub. The pre-defined device tags in the Roc800 Ethernet driver are hard-coded in the device, so it doesn't need to be connected to browse tags.
- When browsing for tags with the BacnetIP driver, only tags with the property of Present_Value will be identified.
Interactive Demo
View an interactive demo on browsing for tags.
Browse for Tags

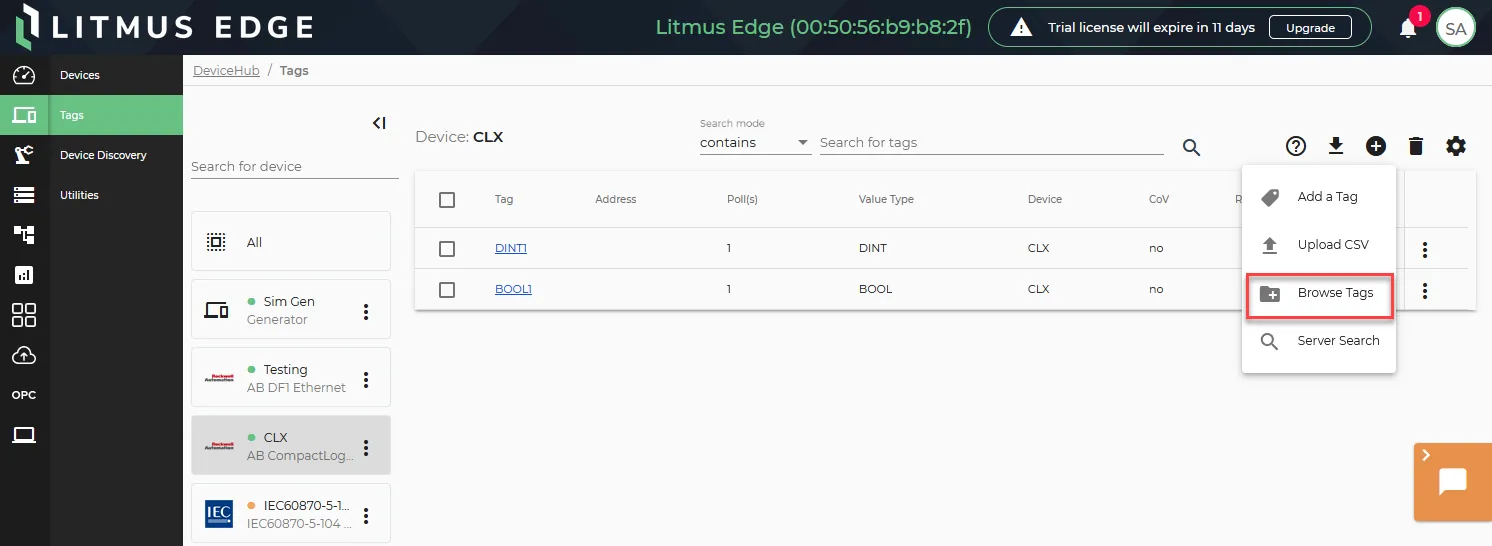

From the Tags pane, click the Add icon, and then select Browse Tags. The Browse Tags dialog box appears.
- Select a device from the Select Device drop-down list. The Tags List drops down in the Browse Tags dialog box.
- Select tags to add to the DeviceHub device and click Add.
Refer to the following tasks you can complete from the Browse Tags dialog box.
Action | Details |
|---|---|
[1] Search tags | This option allows you to search for specific tags within the Browse Tags dialog box. |
[2] Cancel pending requests | Use this option to cancel any pending tag requests that have not yet been processed. |
[3] Select all | Clicking this option will select all the tags listed in the Browse Tags dialog box. |
[4] Clear selection | This option clears any selected tags in the Browse Tags dialog box. |
[5] Reload device tags | Use this option to refresh and reload the list of device tags in the Browse Tags dialog box. |
[6] Download tags as CSV | Clicking this option allows you to download the selected tags in a CSV format for further use. |
