Litmus offers a renewable 2-hour trial that gives you access to all functionality in Litmus Edge. The trial is suitable for developers who want to get started quickly with exploring, developing, and testing in Litmus without needing to set up a production environment. After the 2-hour time period expires, you can simply renew to continue using Litmus Edge with your data preserved.

Decide on whether to install Litmus Edge on a VM, ISO, or a container

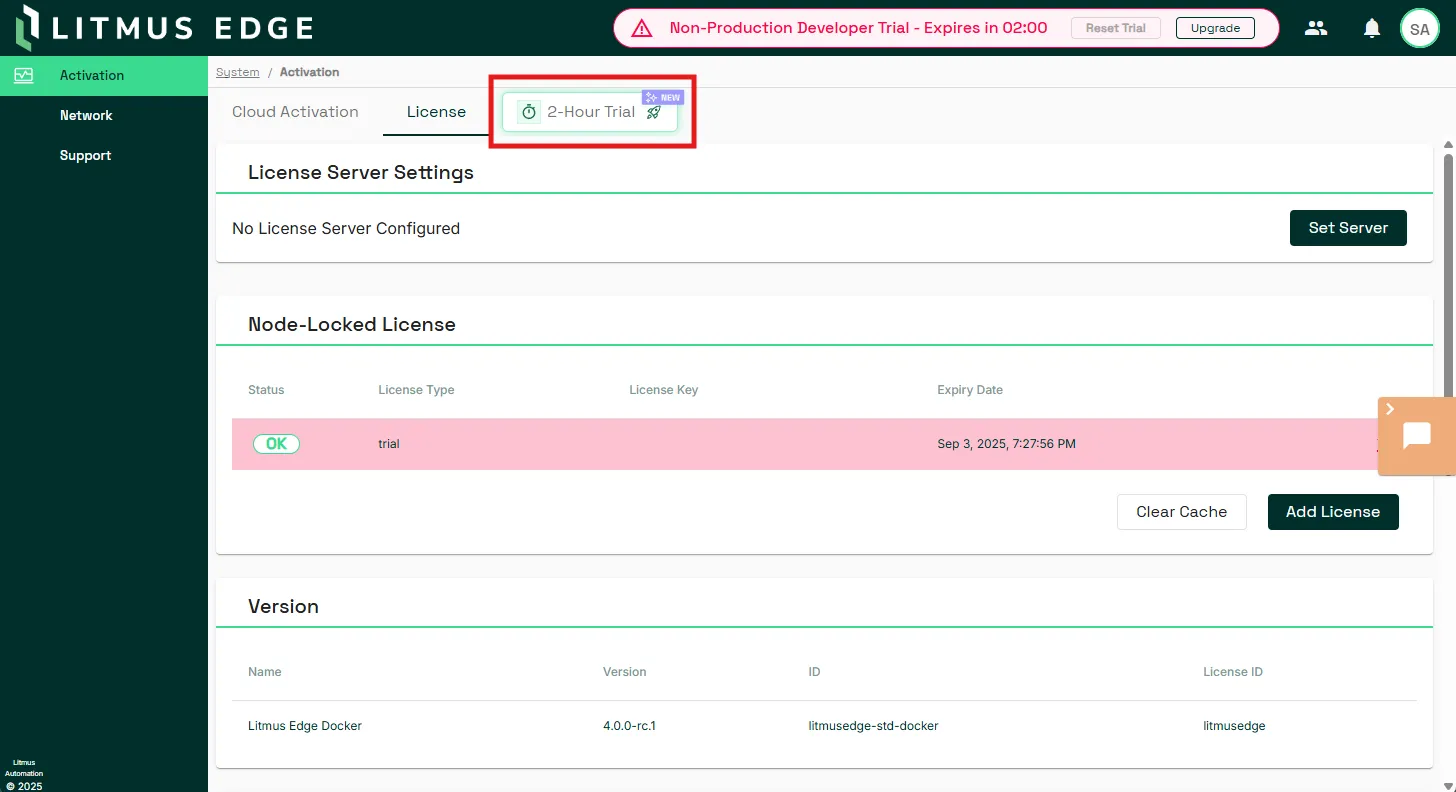

Access the Litmus Edge in your browser and activate your trial

 Your browser requires an internet connection to activate the 2-Hour Trial.

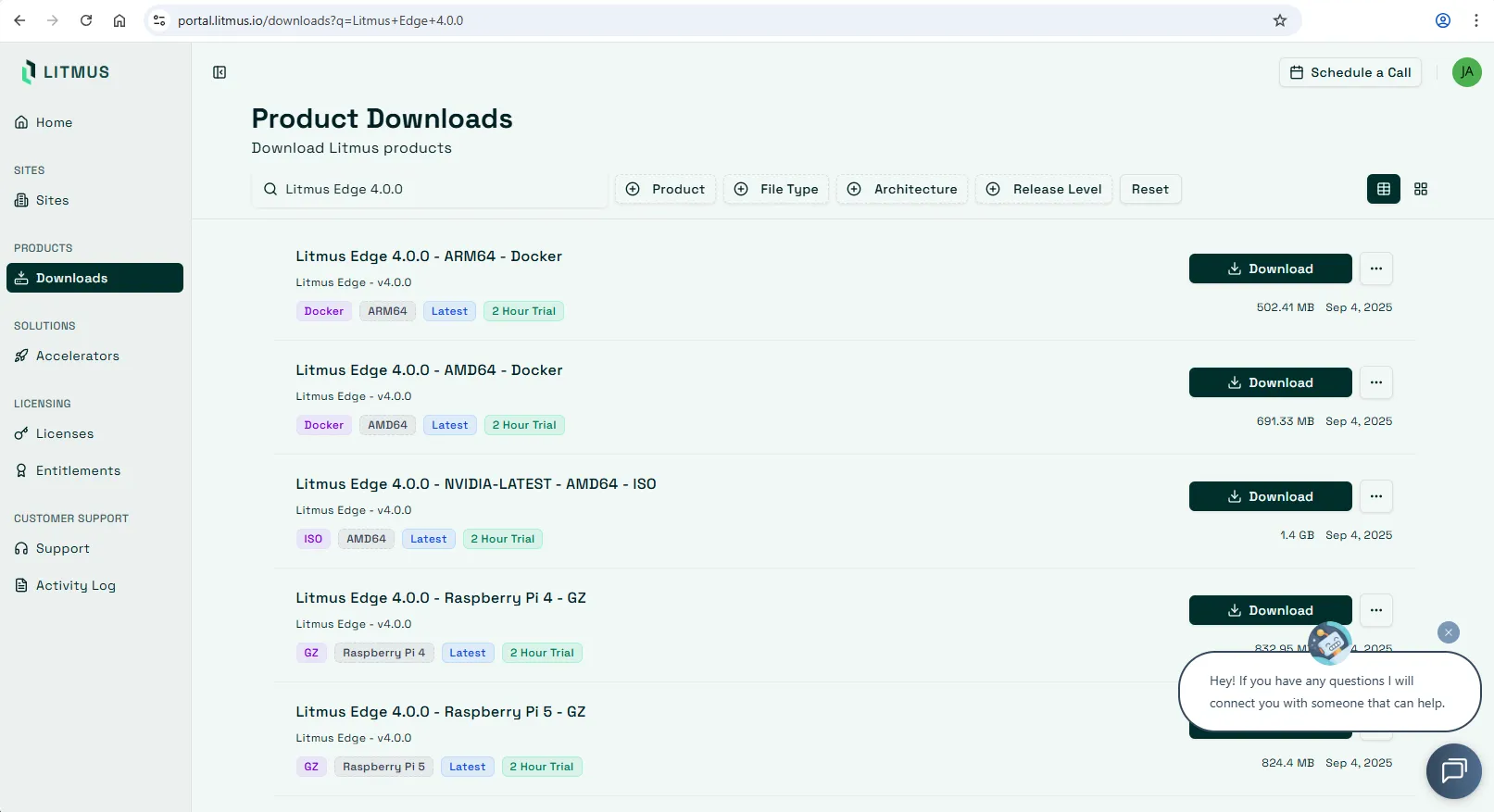

You can install Litmus Edge on a VM, with an ISO, or on a container such as Docker.

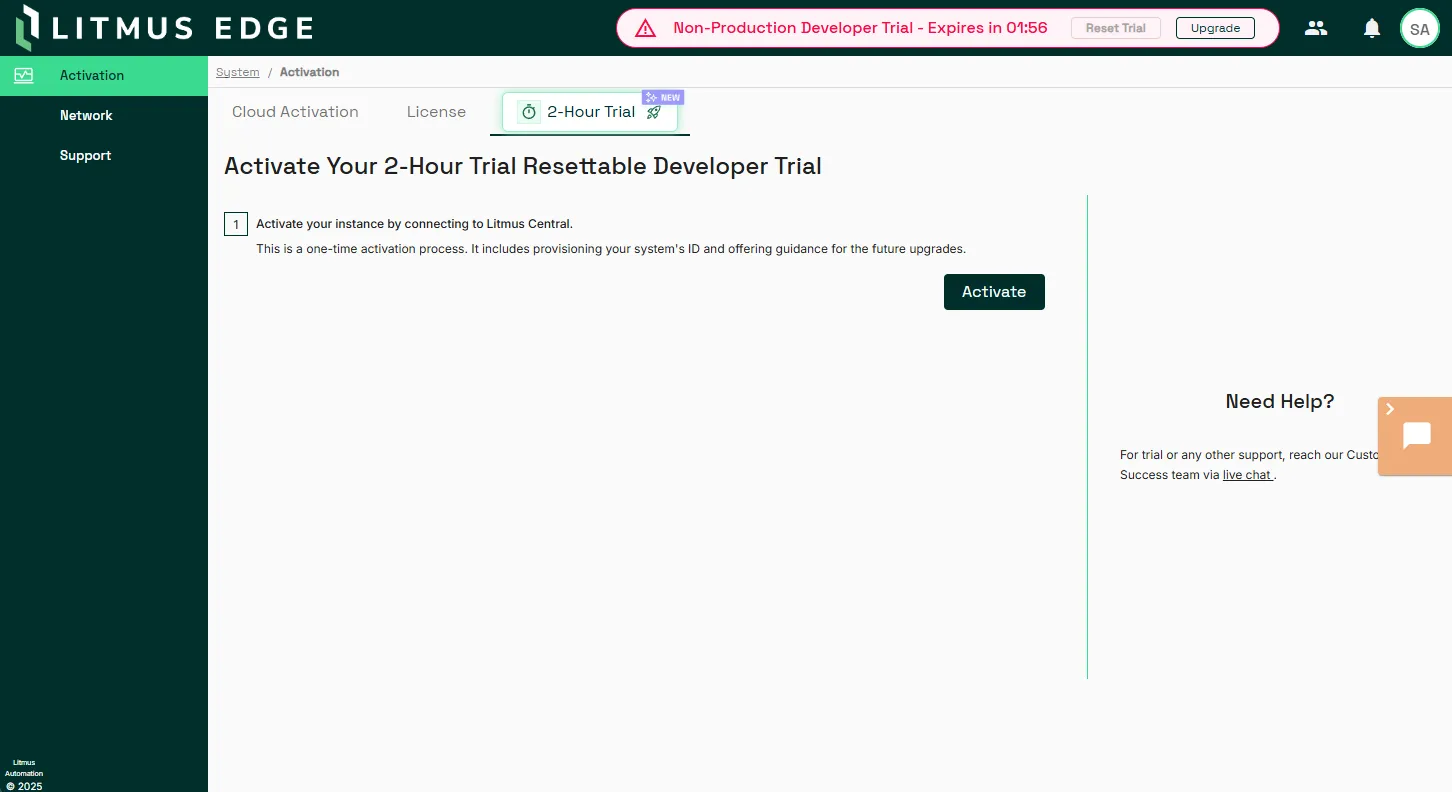

Activate your 2-Hour trial to begin working in Litmus Edge.

 When you login to Litmus Edge Manager for the first time, provide the default credentials

. Change the initial password after being prompted to do so.

Litmus Edge authenticates to Central Portal to get product and solution updates.

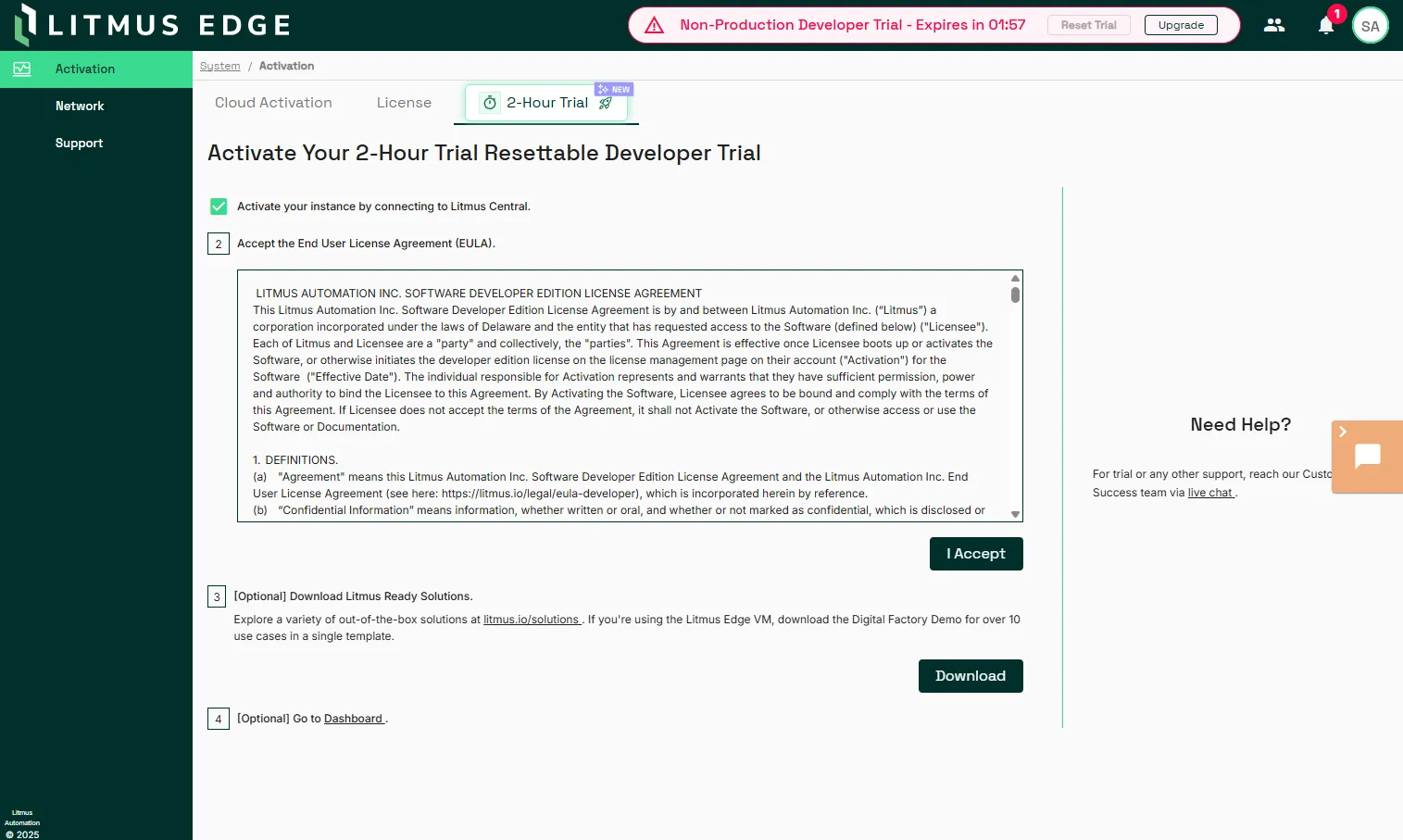

Accept the End User License Agreement (EULA).

Optionally, download Digital Factory Demo to populate Litmus Edge with sample data. For more information on installing the demo, see

 and complete the reCAPTCHA to continue your trial. Your data is fully preserved and you can pick up exactly where you left off.
Some services may take a few minutes to return online.
