Product Features
...
Analytics
Statistical Functions
JavaScript Processor
3min
This processor function enables users to use JavaScript as a programming language for manipulating and managing data coming from input tags.
- This processor uses JavaScript scripting
- Simple Use case: The output you receive from DeviceHub message or from Analytics, might not be helpful, and you want to change the name of a field within that message
- In general, if you want to add, remove or modify ANY field in the input, this scripting processor is very useful
- e.g Instead of "value" you want your data to show "furnace pressure"
- e.g Instead of having all fields of the message, you only want to have "success", "deviceId" and "value" and skip everything else
- e.g You want to add a custom field to the message, based on the "value" field, such as: if value = 2, "error": "overheating"
- e.g You only want to change the timestamp to human readable format instead of Unix timestamp, but keep otherwise keep the message as-it-is
- Single Input: Every message from the input, is stored as an array called "values"
- Using "for i, message in values{}" statement, allows to access this input and manipulate it
- Here "i" represents what is the definition defined in the connection wire, more useful for multi-inputs, to identify and distinguish between each inputs, so for single input, "i" can be replaced with "_"
- "message" contains the entire message in the input, and you can perform your manipulations to this "message" parameter
- Note: "i" and "message" can be any custom variable name
- Multiple Input: Suppose you have 3 different inputs attached to this scripting processor, with the connecting wires named A, B and C
- "for i, message in values{}" will now have 3 inputs
- "i" represents from which connection wire is the input coming from
- with if-else statements, every input can be manipulated in isolation, or a common manipulation can be applied to all inputs
- You can choose to output "result" only for one input, or all of the inputs
Parameters | Details |
|---|---|

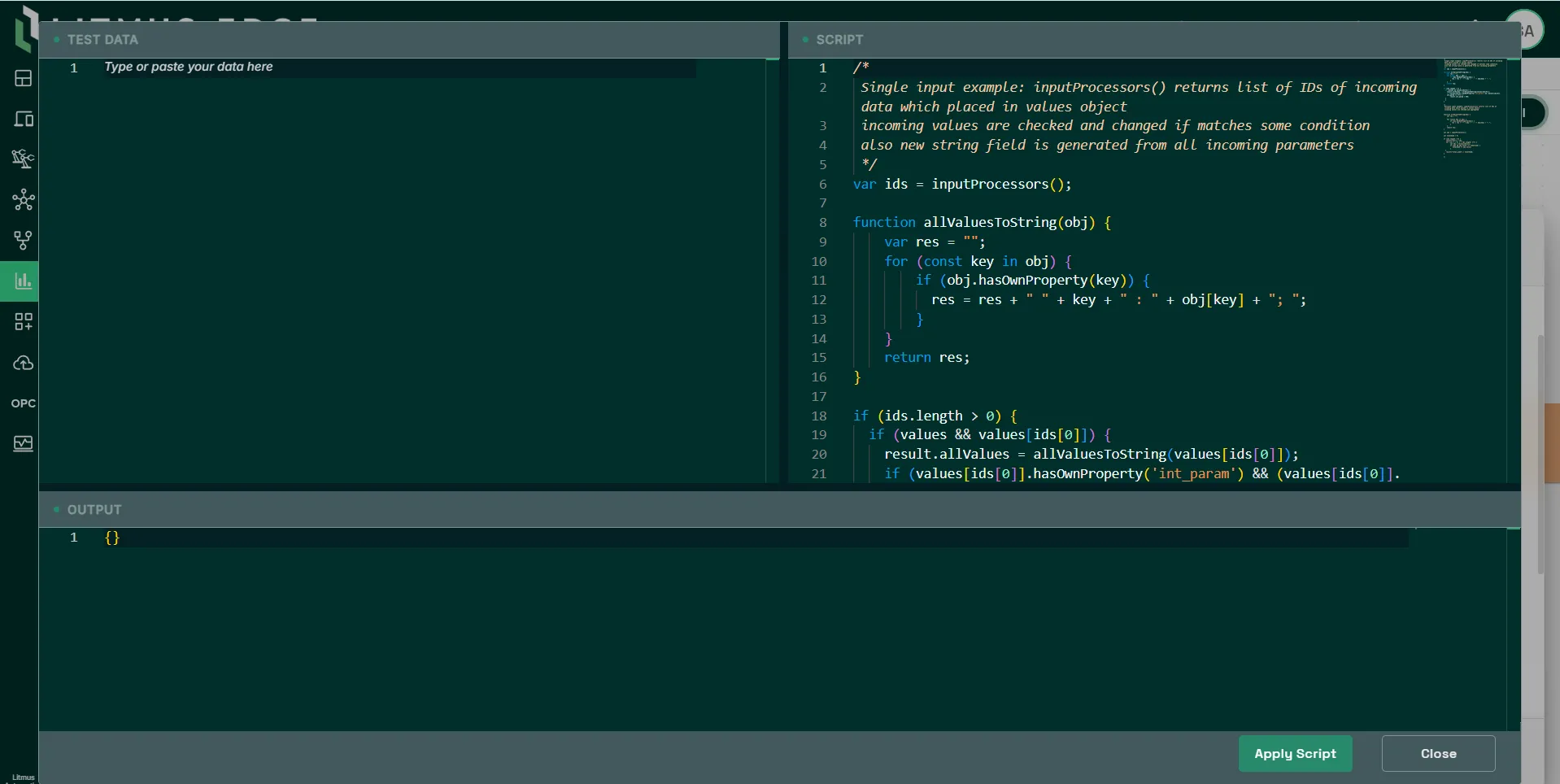

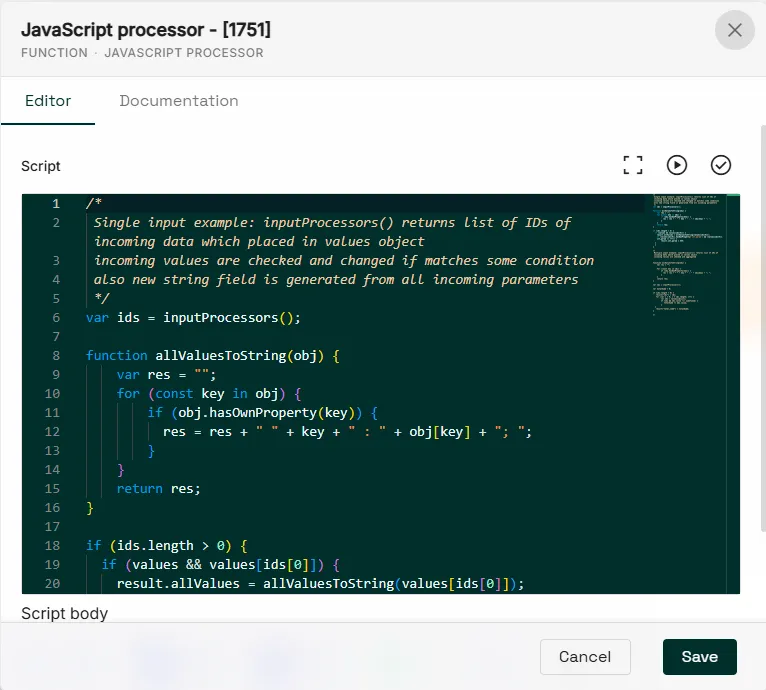

Text Editor | Write the JavaScript code you want to execute. Learn more here. |
Note: When creating an analytics flow with JavaScript Processor processor, refer the Use the JavaScript Processor Function guide for more details.
