Deploy a Marketplace Application
2min
A Marketplace catalog contains an inventory of available applications that can be installed with a script. The initial Litmus Edge environment includes a Default Public Marketplace catalog.
To review use cases for specific applications, see Applications Guides.
- You can add a public catalog from Litmus Edge Manager. See Push Marketplace catalogs to Edge devices section of Manage Applications.
- You can add a private catalog from which you want to deploy the application. See Add a Marketplace Catalog for more information.
- For a Private Marketplace Catalog, make sure you create a Docker image and add a Docker registry. See Create a Docker Image to Deploy to Your Private Repository and Add a Registry for more information.
- To access data from the application, it must be running on the same network as the Litmus Edge device.
To deploy an application:

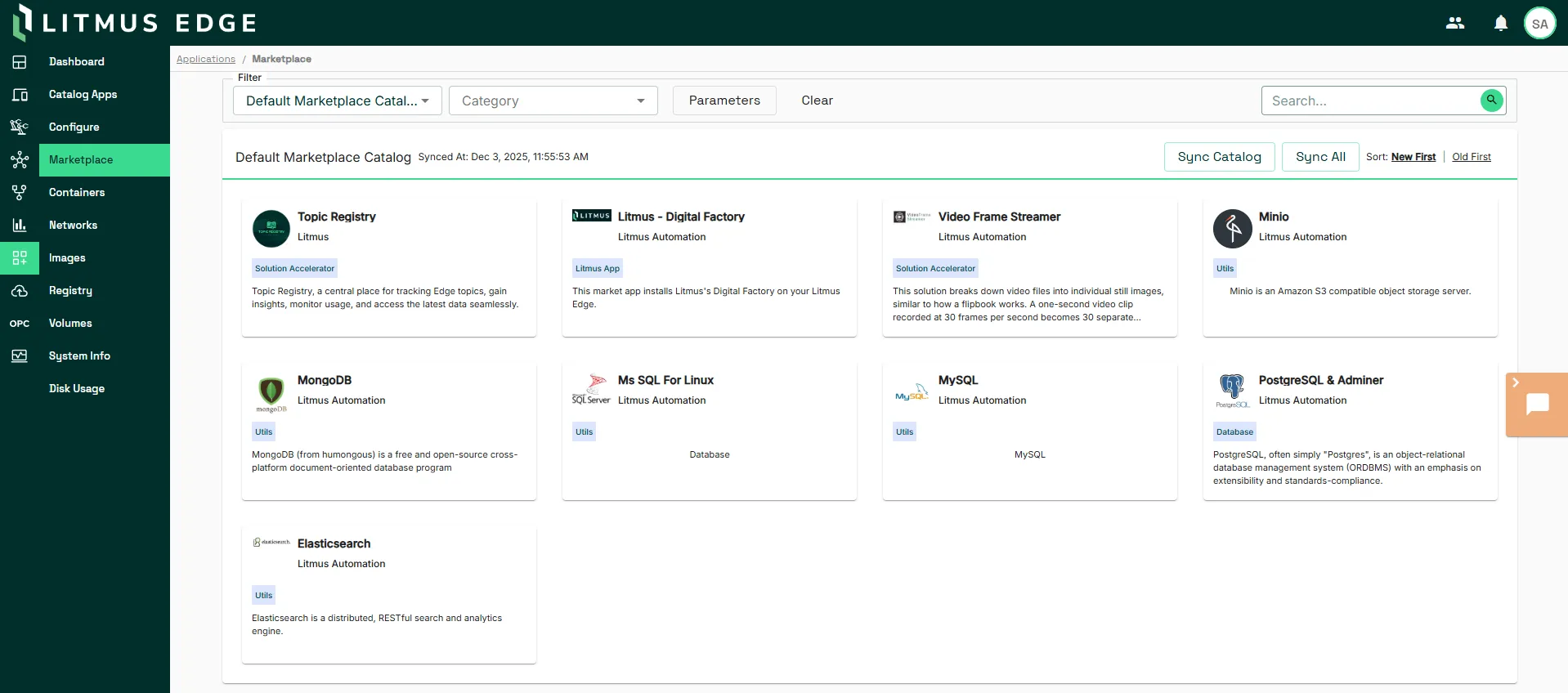

- Navigate to Applications > Marketplace. The Marketplace pane appears.
- Click the Marketplace List drop-down list and select a Marketplace catalog. The selected Marketplace appears, displaying its associated applications.

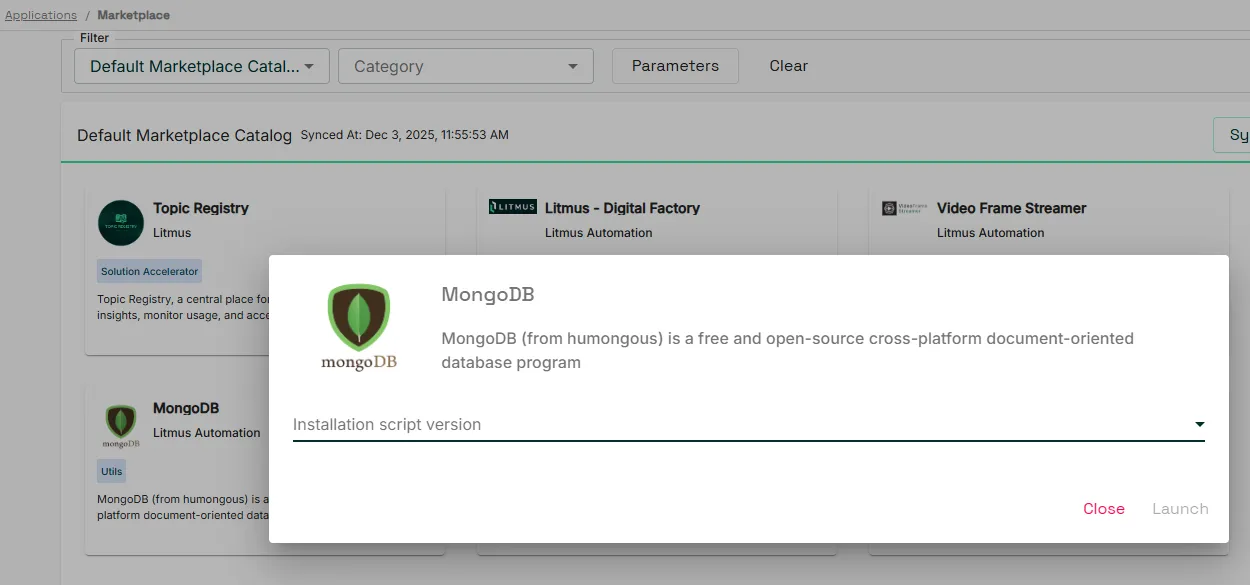

- Click an application tile. The selected application Launch dialog box appears.
- Click the Installation script version field, and then select a script version from the drop-down list.

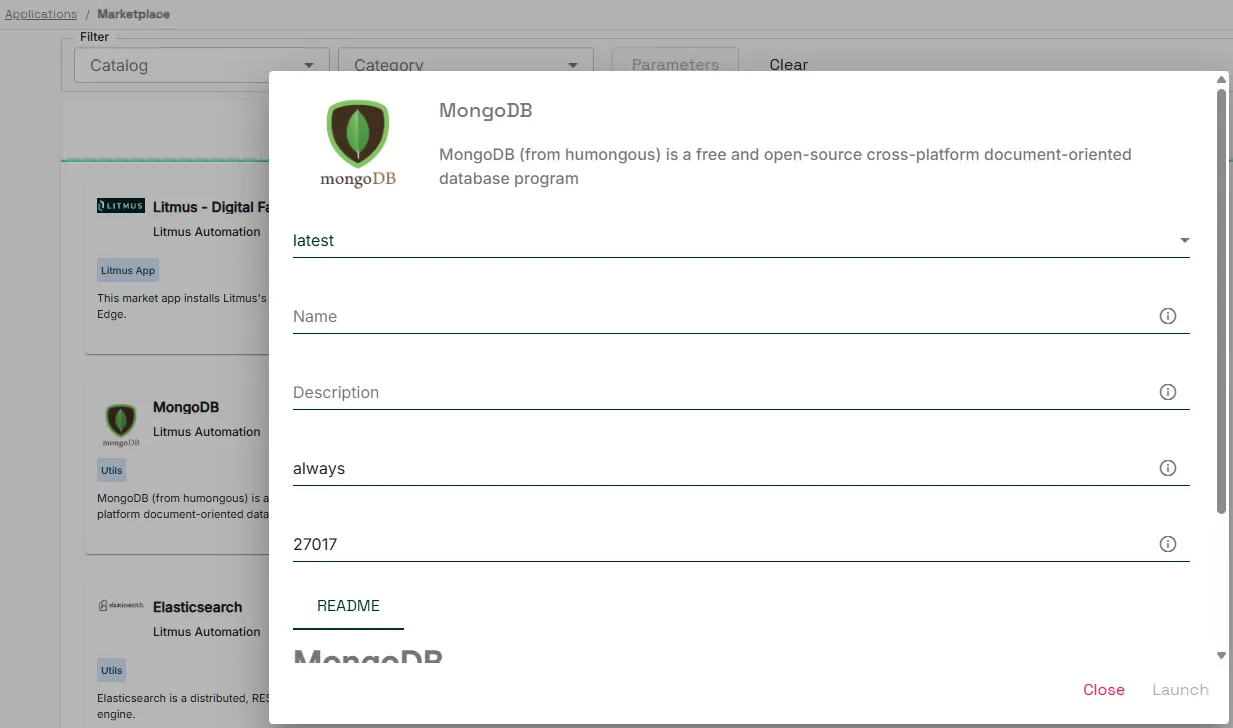

- Enter a name and complete any applicable parameters for the application.
- A name for the incoming Docker container
- (If applicable) A number for the port. A number cannot be used if it’s already in use by another Docker container.
- Complete any applicable parameters by entering a respective value. For others, select a value from its respective drop-down list. These parameters will be passed as runtime variables to the respective Docker container.
- Click Launch.
