Dashboard Site

2min

The Site tab allows you to make selections affecting your dashboard, format the date and configure the size, spacing and padding for widgets and groups.

The Title field allows you to set the title of the dashboard.

The following options are available for further configuration of the dashboard website:

Option

Available configurations

Title Bar

  • Show the title bar
  • Hide the title bar

Side Menu

  • Click to show side menu
  • Always show side menu
  • Always show icons only

Tabs

  • No swipe between tabs
  • Allow swipe between tabs
  • Allow swipe (+mouse) between tabs
  • Swipe to open/close menu

Theme

  • Node-RED theme everywhere
  • Use Angular theme in ui_template
  • Angular theme everywhere

The date format can be set up by entering what you would like to see on the Dashboard.

Example: DD/MM/YYYY

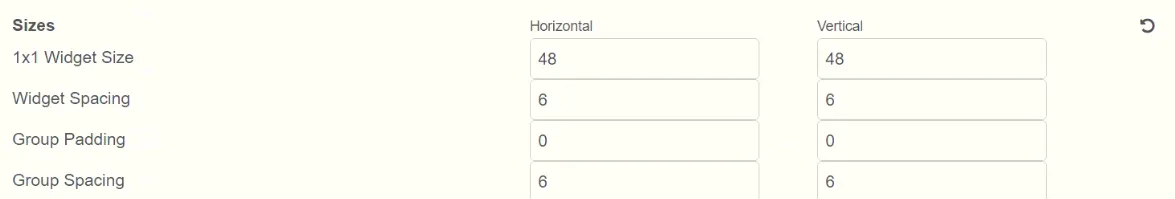

You can control the size and spacing of widgets as well as the padding and spacing of groups on the Dashboard.

Widget and group configuration options.
Widget and group configuration options.
