Events
The Events pane displays a list of events that have occurred in Litmus Edge.
Events are the actions the edge device performs, identifies, and then logs during its operation.
You can view information for each of the listed events: the edge device component where the event occurred, the event severity, and so on.
Events are tracked for the following components:
- Integration
- DeviceHub
- System
- Authentication (auth)
- Marketplace
- Licensing
- OPC UA
- Flows Manager
- Digital Twins
- Analytics
Limitation: Delete and restart events are not tracked.
See Generated System Events for more information.
You can view and copy the topic name for system events.

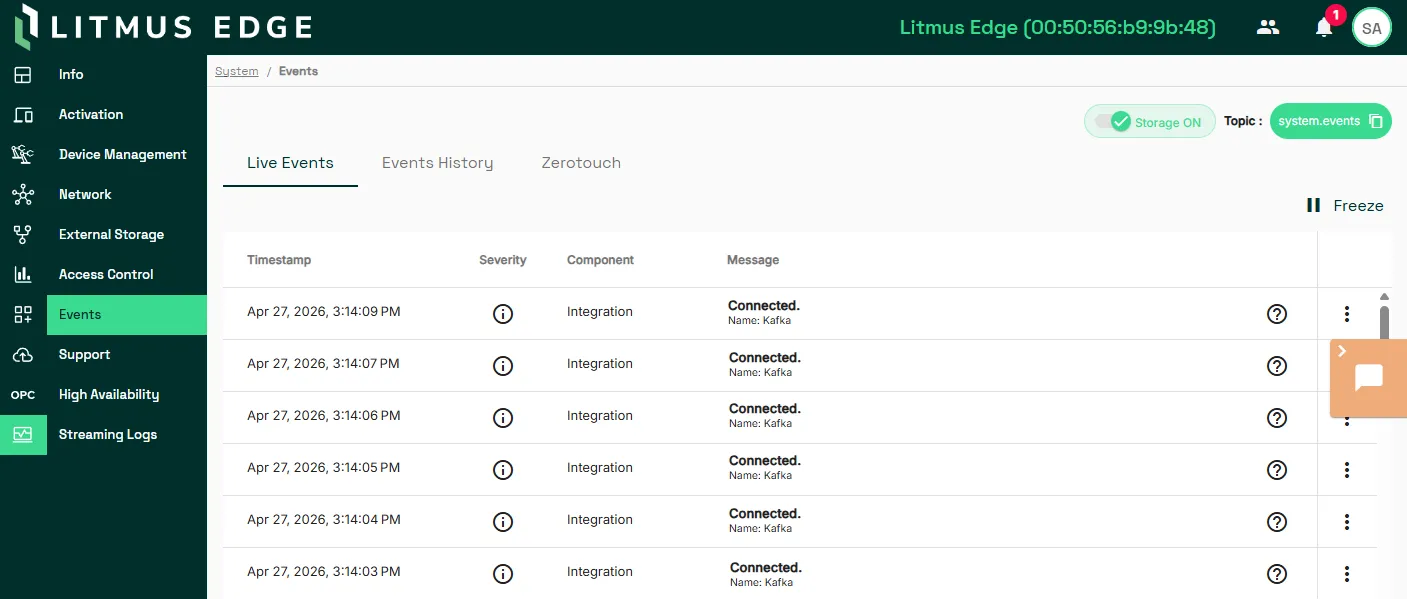

The Events pane includes two tabs:
- Live Events: Shows events as they occur in inverse chronological order.
- Events History: Filter and sort the events using a number of criteria: date and time range, component name, and so on.
The Live Events tab allows you to view the following columns for each event:
- Timestamp for when the event occurred
- Severity of the event
- Component for which the event occurred
- Message explaining the event action
- Event Information icon allowing you to view information about the event
- Action icon allowing you to select History for the event
Note: The events logs may display <nil> when the tag count is large. In a future release, we will update it to show only the number of tags.
Note: Hovering over the Event Information icon allows you to view the severity, driver, connector, message, user, name, tags added and tags removed depending on the component for the event selected.
You can click Freeze to stop the logging of live system events. Click Resume to start the logging of live system events.
You can view events history from the Events pane.
To view the event history of an individual live event, click the Action menu for the event in the Live Events tab and select History.
The filtering is preloaded and the events history for the selected live event appears in the Events History tab.
You can use the Events History tab to enter filter criteria and view specific event history.
Enter your filter criteria for viewing event history and click Load. To use the search function, make sure you have loaded an event history with filtering criteria before entering search terms.
You can view the following columns for each event:
- Timestamp for when the event occurred
- Severity of the event
- Component for which the event occurred
- Message explaining the event action
- Event Information icon allowing you to view information about the event
- Action icon allowing you to select Event History for the event
You can download your event history in a CSV file by selecting the Events History tab, and then clicking the Download as CSV icon.
You can purge your event history by selecting the Events History tab, and then clicking the Purge all icon.
