Digital Factory Demo
Digital Factory Demo

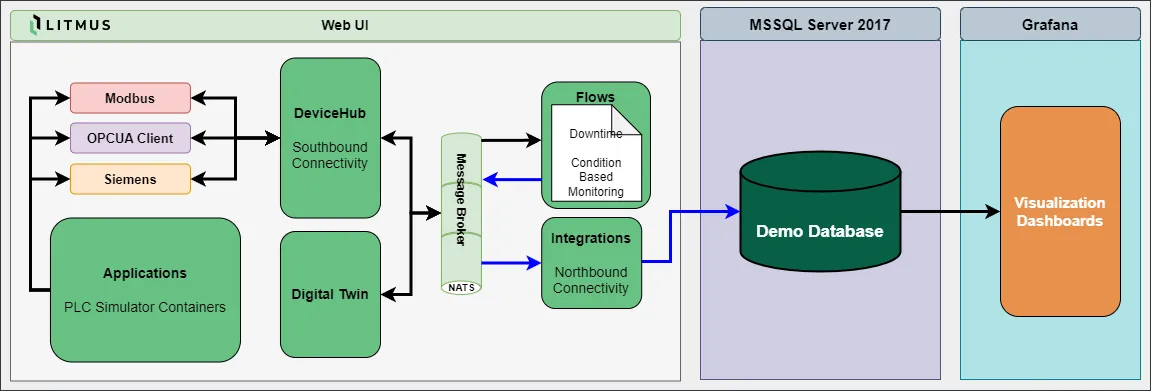

A multi-line factory simulation that streams PLC data through Litmus Edge into MSSQL/MySQL and visualizes it in Grafana. Ships as a single "demo install" container that loads (or pulls) all dependencies and configures Litmus Edge automatically.
What deploys
Inside Litmus Edge's docker engine, five containers come up on a dedicated 172.172.0.0/24 bridge:
Container | Purpose |
|---|---|
simulation_servers | 16 simulated PLCs: 4 each of OPC UA (4840-4843), Modbus (502-505), Siemens S7 (102-105), Rockwell EtherNet/IP (44818-44821), plus a Simulator Control Center UI on :3300 |
demo_mssql | MSSQL with fault and reason-code lookup tables seeded |
demo_mysql | MySQL with CBM / work-order tables seeded |
demo_grafana | Grafana with provisioned datasources and dashboards |
template_applyer | One-shot configurator; uploads the LE template, wires devices/tags/flows/SQL connectors, then exits |
template_applyer finishing in Exited (0) is expected: its job is done on first run.
Minimum requirements
- Litmus Edge 3.16.x or later
- ~5 GB disk for all bundled images
- 3 GB RAM headroom
This Solution might be removed in the future if valid license is not installed
Prerequisites
To be able to run the Digital Factory Demo you need a running Litmus Edge instance of version 3.16.x or greater.
For a quick start, Litmus offers two Options:
- Litmus Edge Developer Edition with a 2 hour rolling license.
Products with 2 Hour Trial have a specific Tag ("2 Hour Trial"). Make sure to download one of these Versions.
Products for 15 Day Trial have a specific Tag ("LTS"). Make sure to download one of these Versions.
Our Documentation Portal provides guidance on Installation and Deployments, First Time LogIn.
The documentation portal provides guidance on installation, deployments, and first-time login procedures. If you require further assistance, contact your sales representative or account executive.
Installation Options
Online Installation Digital Factory Demo - LE has internet; the install image pulls every component from litmusedge.azurecr.io at deploy time.
Offline Installation Digital Factory Demo - LE has no internet; the install image carries every component as bundled tarballs (~3 GB single artifact).
Digital Factory Demo via Portainer - fastest path on a Docker Desktop host; uses a published Portainer app template.
Endpoints after install
- Grafana: http://<le-host>:3000 (default admin/admin)
- Simulator Control Center: http://<le-host>:3300
- Litmus Edge UI: https://<le-host>:8443 (or :443, depending on LE deployment)
- MSSQL: <le-host>:1433 (sa/Demo1234)
- MySQL: <le-host>:3306 (sa/Demo1234)
