Sending Data to InfluxDB Using REST API Integrations : Walk-through

5 min

Pre-requisite

Download the helper template from central portal, and Upload it to your LitmusEdge

Write data with the InfluxDB API (v1.x)

A recommended reference to review when writing data using InfluxDB APIs is located here. The below example is extracted from the template file that was shared with the solution. It is a raw API call with a sample piece of data that is being sent to the database.

Sending a POST request to the InfluxDB that is running on tsdata IP address is http://10.17.9.53 and the port is 8087
- The -u is followed by username:password
- The information in the URL consists of the database and the precision. database is tsdata and precision is seconds
- Data-binary is the measurement (mymeas in the example) and the key/value pairs that are being sent ( in this format key=value)
- Note: if there are no timestamps with the data, the database will publish the timestamp that it receives the data at

curl -i -XPOST -u litmus:Example@123 "http://10.17.9.53:8087/write?db=tsdata&precision=s" --data-binary 'mymeas,mytag=1 myfield=90,myfield2=123'

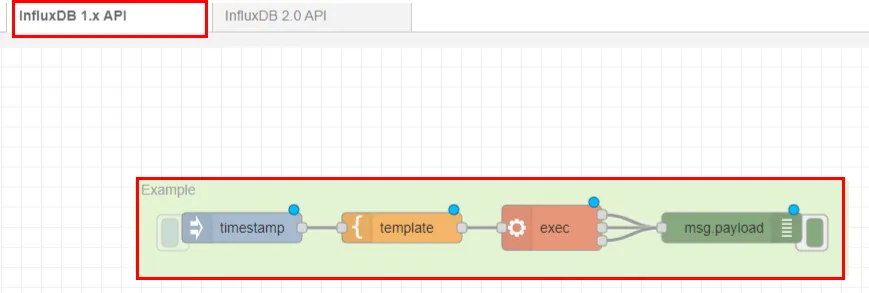

This can be further explored in this flow:

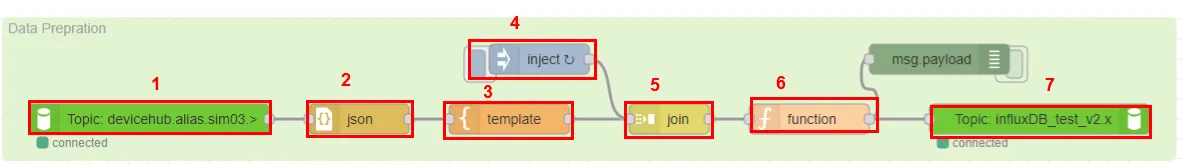

To further understand the payload that needs to be sent via NATS, see the explanation below related to the flow shown below:
Note: nodes 1- 5 are preparing the data schema
1. Bring in all the tags from device sim03
2. Convert string to object
3. Start preparing the schema by having key=value
4. Send a msg.complete to the join node. Put this as repeating on a regular interval (once per second) to send the data compiled through every second
5. Join the key/value pairs into one payload with commas separated
6. Add the measurement name to the payload
7. Send the data to a topic
Once the data is published to a topic, you will be ready for the next step (preparing the Integrations).

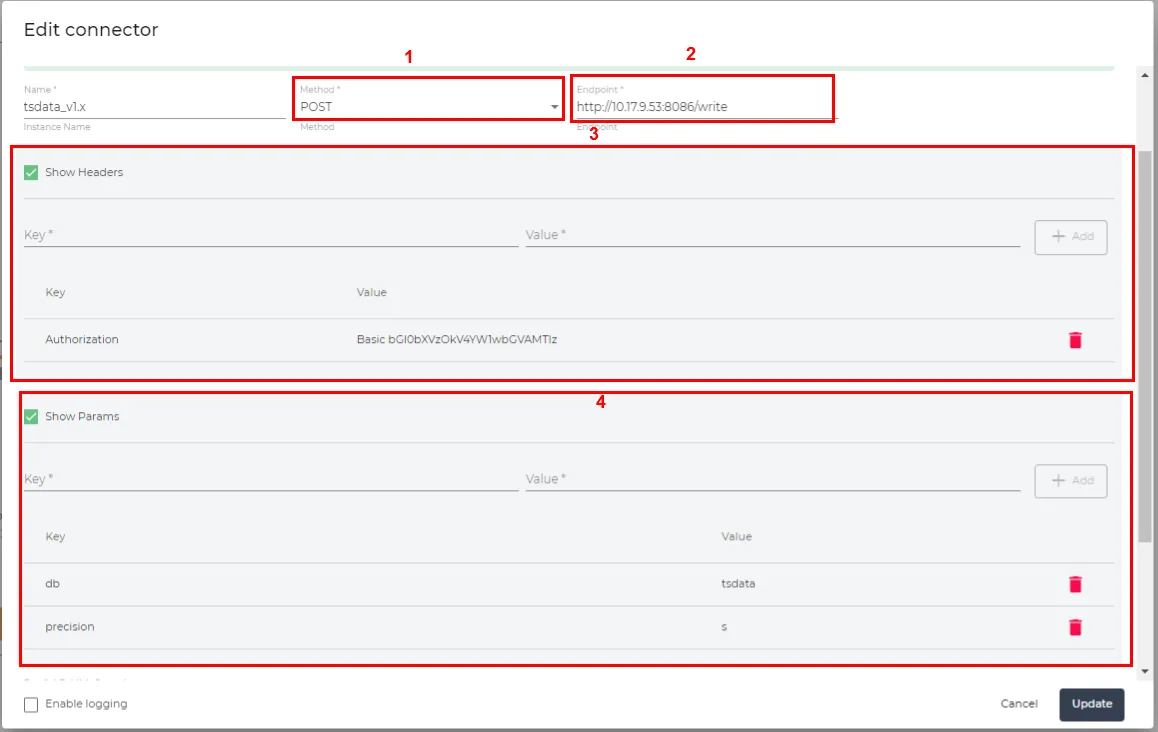

1. Method: Choose POST
2. Endpoint: http://<IP_Address>:/write
3. Headers (key : value pair):
  - Authorization: Basic username:password (converted to base_64, eg. litmus:Example@123 converted to base_64)
4. The following information could be either in the Params or in the topic of the Integrations
  - db (database that your system is set up with, eg. tsdata)
  - precision: (s for seconds, ns for nanoseconds)
Note: alternatively you can input the information in the Remote Topic of the Integrations. The topic can be set up as follows:
- http://<IP_Address>:/write?db=litmus&precision=s

You are now set up to send data to InfluxDB v1.x via API calls!

Write data with the InfluxDB API (v2.x)

A recommended reference to review when writing data using InfluxDB APIs is located here. The below example (extracted from the template that was shared under the Files and References section), is a raw API call with a sample piece of data that is being sent to the database. The information is as follows:

Sending a POST request to the InfluxDB that is running on tsdata IP address is http://10.17.9.53 and the port is 8087
The org is litmus, bucket is litmus and precision is nano-seconds
Header carries the authorization, content type and formating accepted.
Data-binary is the measurement (airSensors) and the key/value pairs that are being sent.
Note: if there are no timestamps with the data, the database will publish the timestamp that it receives the data at

curl --request POST "http://10.17.9.53:8087/api/v2/write?org=litmus&bucket=litmus&precision=ns" --header "Authorization: Token cr9hOZAHRm8j-VD2Nk6o6bWrNEubsZ1KFtad0ZNX4nmrgFhgfRsgN1ybF6Ylv41Fo82K6JXCmRDXksAo42wamg==" --header "Content-Type: text/plain; charset=utf-8" --header "Accept: application/json" --data-binary 'airSensors,sensor_id=TLM0201 temperature=73.97038159354763,humidity=35.23103248356096,co=0.48445310567793615'

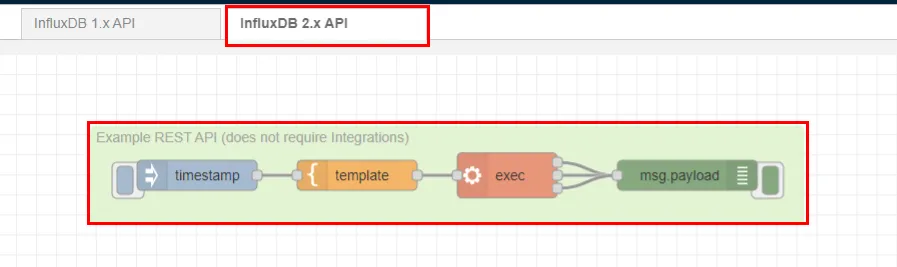

This can be further explored in this flow:
To further understand the payload that needs to be sent via NATS, see the explanation below related to the flow shown below:
Note that nodes 1- 5 are preparing the data schema
1. Bring in all the tags from device sim03
2. Convert string to object
3. Start preparing the schema by having key=value
4. Send a msg.complete to the join node. Put this as repeating on a regular interval (once per second) to send the data compiled through every second
5. Join the key/value pairs into one payload with commas separated
6. Add the measurement name to the payload
7. Send the data to a topic
Once the data is published to a topic, you will be ready for the next step (preparing the Integrations).

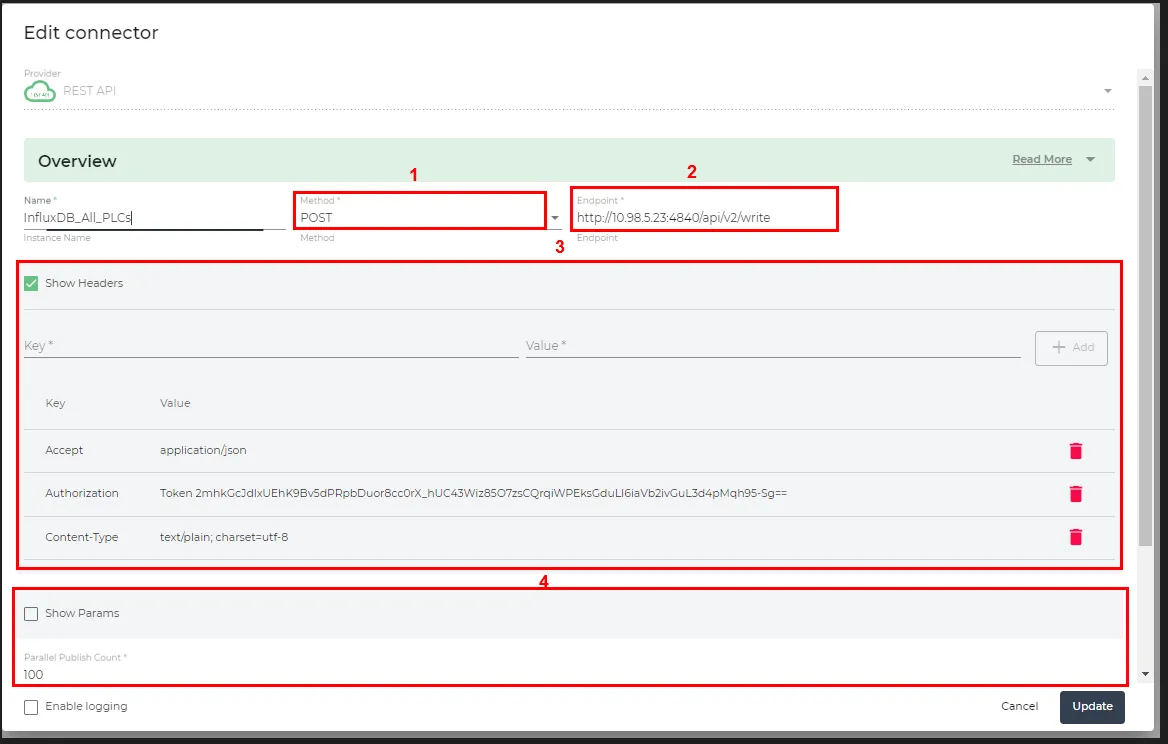

1. Method: Choose POST
2. Endpoint: http://<IP_Address>:<Port>/api/v2/write
3. Headers (key : value pair):
  - Accept : application/json
  - Authorization: Token YOUR_API_TOKEN
  - Content-Type: text/plain; charset=utf-8
4. The following information could be either in the Params or in the topic of the Integrations
  - bucket (bucket that your system is set up with, eg. PLC_Data)
  - org (org name that your InfluxDB is set up with, eg. litmus)
  - precision: (s for seconds, ns for nanoseconds)
Note: alternatively you can input the information in the Remote Topic of the Integrations. The topic can be set up as follows:
- http://<IP_Address>:<Port>/api/v2/write?org=litmus&bucket=PLC_Data&precision=s

You are now set up to send data to InfluxDB v2.x via API calls!
