Kafka Integration
4min
Follow these steps to set up the integration with Kafka connector.
You will need the following:
- The CA certificate and other required authentication parameters needed to access the broker.
To configure Kafka integration in Litmus UNS:
- Navigate to Integrations from the side menu. The Integration pane appears.
To add a new configuration or edit an existing configuration, click Edit. The Edit Kafka Connector dialog box appears.

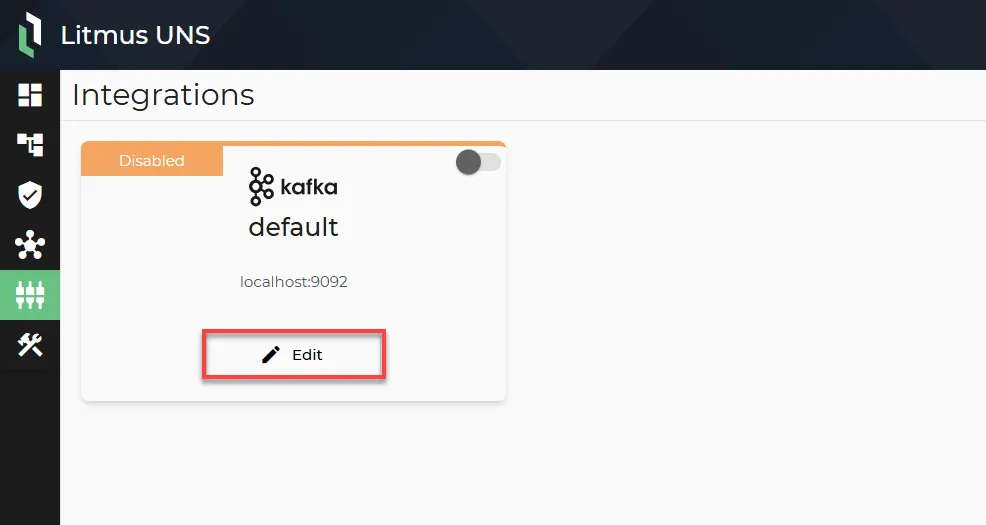

Integration pane- Enter the following connection details:
- Brokers List: Add the Kafka broker address (e.g., 10.17.10.49:9092).
- Enable Toggle: Turn the connector on or off.
- SASL Mechanism: Choose the type (None, SASL Plain, SCRAM-SHA-256, SCRAM-SHA-512).
- Username and Password: Add these if the broker requires them.
- Timeout (seconds): Set how long to wait when connecting.
- Compression: Choose a method (None, Gzip, Lz4, Snappy, Zstd).
- Required Acks: Pick acknowledgment settings (None, All, Leader).
- Turn on the Require SSL option if needed for secure communication.
- Topic Mapping: Click the + icon and add MQTT topics with Kafka topics. Wildcards can be used.
Click Save to apply the settings.

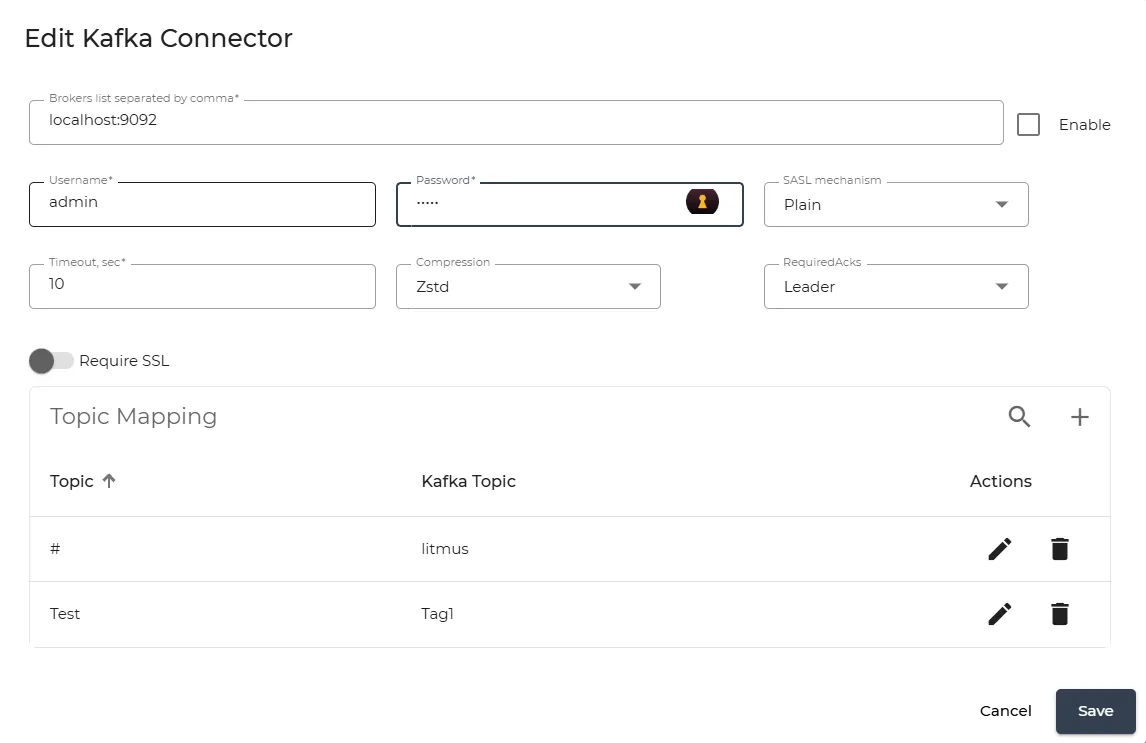

Edit Kafka Connector dialog box
After adding the connector, click the toggle in the connector tile to enable it.

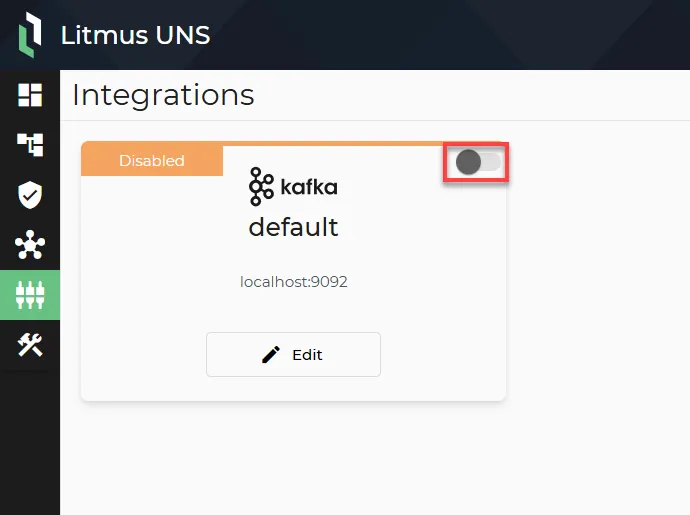

Kafka Connector
Access the Kafka broker and verify that Litmus UNS is successfully sending data.
