Unified

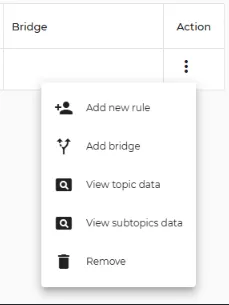

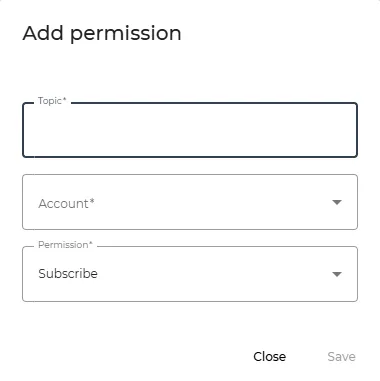

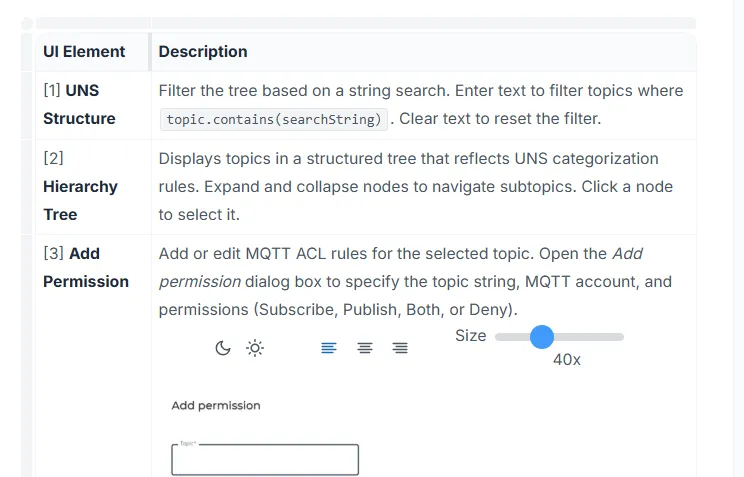

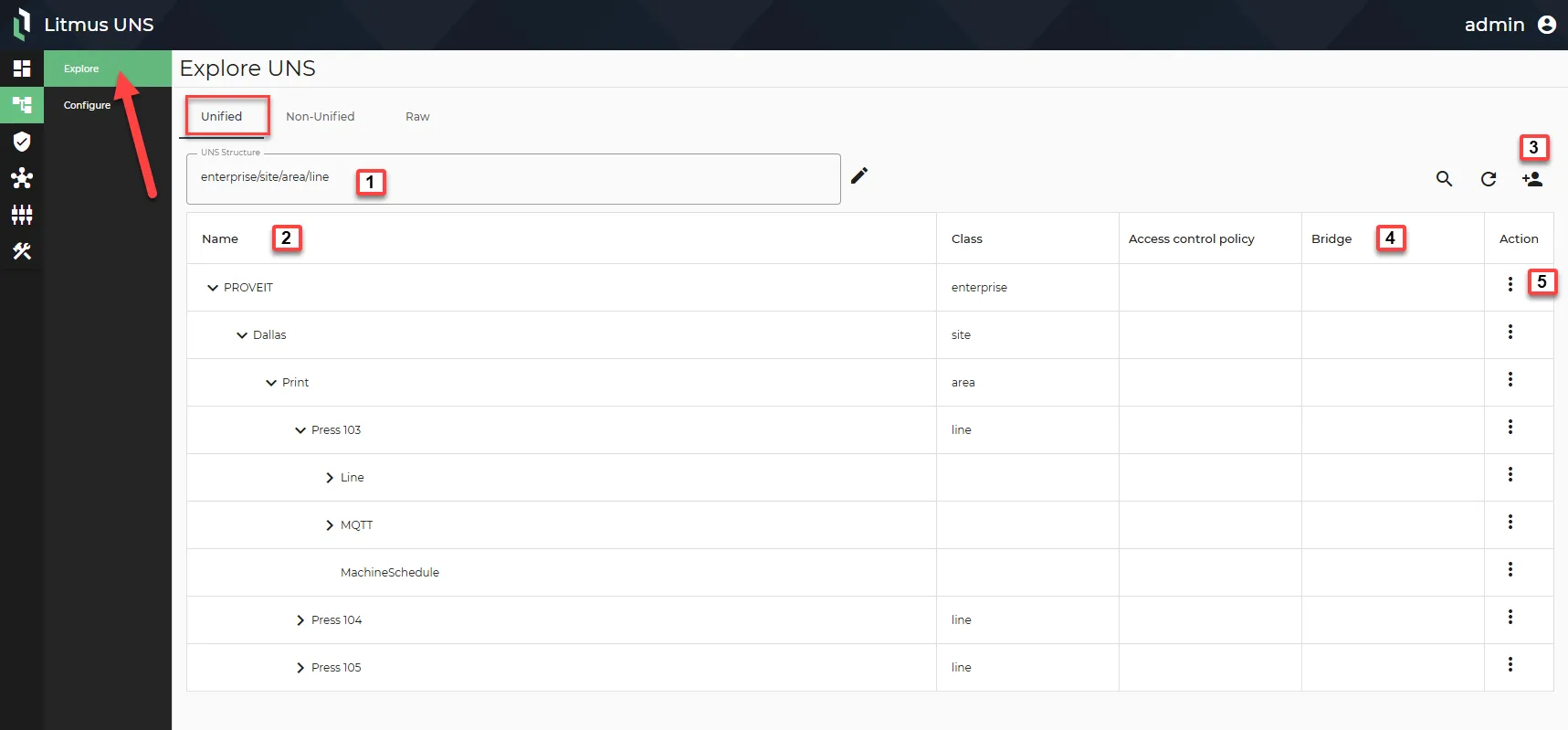

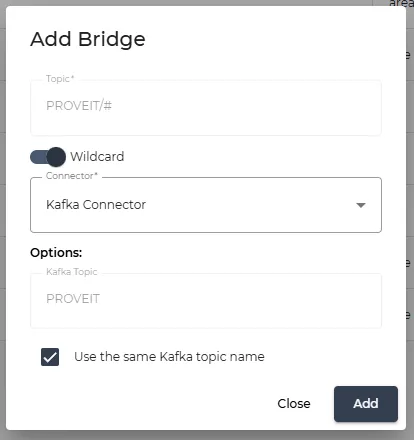

the unified feature in litmus uns provides a dynamically generated hierarchical tree of topics that reflects data organization rules that you defined in the configure docid\ mvgreuymwhpustdhwhsco section on unified page, you can filter the hierarchy tree to quickly find relevant topics automatically generate and display a unified data hierarchy manage mqtt account permissions (acl) for specific topics bridge selected topics to external connectors or integrations view real time topic or subtopic data through the mqtt client tool manually add new mqtt account permissions remove unwanted topics and their child nodes before you begin ensure you have a running instance of litmus uns and have access to its web interface ensure the hierarchy tree is generated based on rules defined in the configure docid\ mvgreuymwhpustdhwhsco section confirm these configurations are set appropriately if you plan to add or modify mqtt permissions, make sure you have at least one mqtt account configured access the unified ui log in to the uns platform and navigate to the explore section from the top of the explore page, select the unified tab here you can filter and navigate the tree hierarchy, modify permissions for a topic, bridge a topic to an external connector or integration, and perform additional action on a selected topic ui element description \[1] uns structure filter the tree based on a string search enter text to filter topics where topic contains(searchstring) clear text to reset the filter \[2] hierarchy tree displays topics in a structured tree that reflects uns categorization rules expand and collapse nodes to navigate subtopics click a node to select it \[3] add permission add or edit mqtt acl rules for the selected topic open the add permission dialog box to specify the topic string, mqtt account, and permissions (subscribe, publish, both, or deny) \[4] add bridge configure an external connector or integration for the selected topic specify connector details (for example, endpoint or credentials) and validate bridging topic strings open the add bridge dialog from the action menu \[5] action select a specific topic in the tree and open the action menu action menu options add new rule add a mqtt acl rules for the selected topic add bridge configure bridging settings for external integrations view topic data open the mqtt client with the selected topic as subscription view subtopic data opens the mqtt client with topic + “#” as subscription remove remove the selected topic and its children, after confirmation
