Licenses

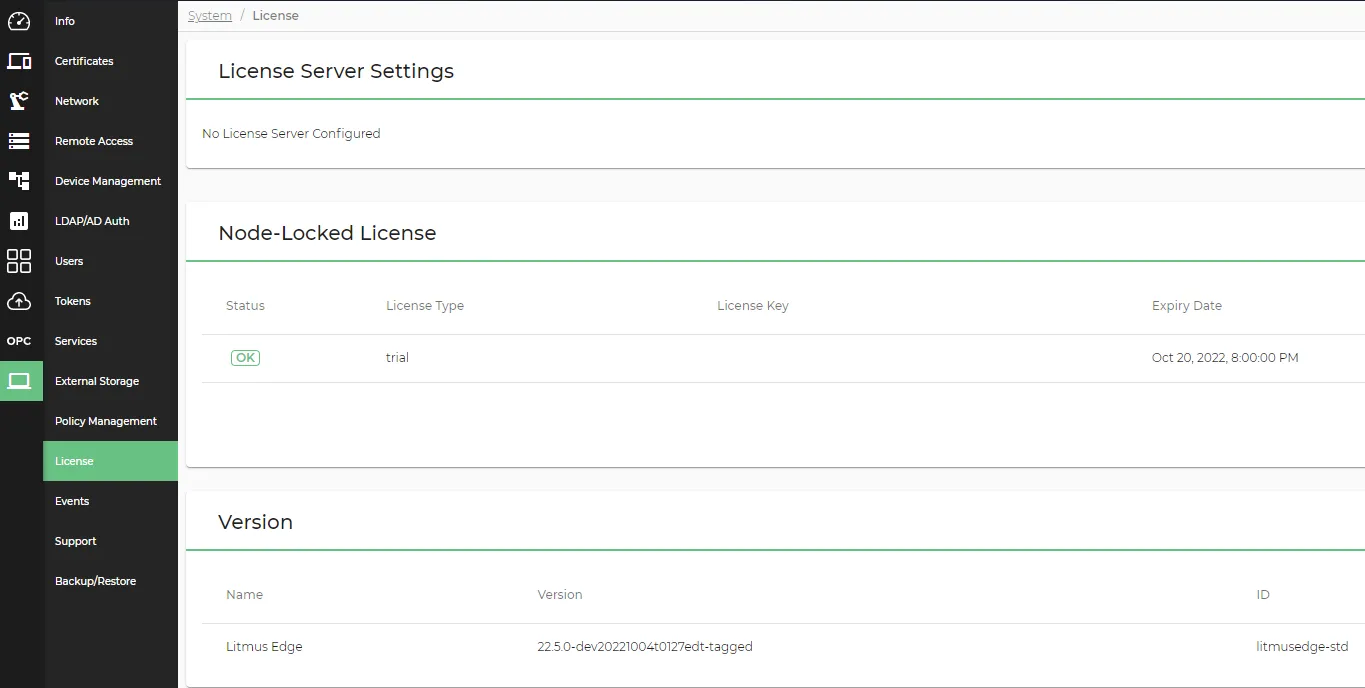

litmus edge supports two types of licenses node locked license each license is locked to an edge device site license activated with a license server embedded in litmus edge manager during the edge device activation, this server can provision a site license, which offers an unlimited usage of devices (except for configurable tag limits and reservations) you can define the limit (upper limit) and reservation (lower limit) of assets, such as tags, per site license see activate an edge device docid\ tdj648wjgatvqzyx79uwb to learn more for even more detailed information on the two type of licenses, see site and node locked license overview for litmus edge docid\ nbx0o6c5ylsh qvy0sdjc the license pane includes the following sections license server settings allows you to configure license server settings node locked license allows you to add a standard node locked license to replace the trial license, upgrade a license, add additional licenses to increase the number of devices and tags, or add new modules, as well as to remove licenses by default litmus edge comes with a 15 day node locked trial license all features are available with a trial license except backup/restore and template version allows you to view the current litmus edge version and license id features allows you to view the currently installed modules, as well as view and configure the number of devices and tags allowed under your license for site license note backup/restore docid\ q mfoxtlo2fahvhw1jcef are not available under the trial license contact your litmus representative to request a license key node locked license a standard node locked license is valid for one year the license type, license key, and expiration date are visible from system > license the license key is 16 digits, for example 2411 3629 5461 7935 you must include all the dashes in the license multiple licenses can be purchased, added, and activated to increase the number of device and tags or for products in addition to the standard core license when a standard core license expires, you cannot access any modules except the license section in system furthermore, the expired license could use up the cpu, thereby unnecessarily wasting computing resources a banner appears in system > license that lets you know which license has expired you must contact your admin to add a new license expiration dates apply to core and additional licenses you can upgrade an existing core license to replace it notes for a standard core license, see activate a node locked license offline docid\ g1c lr4pvtrxoqx dxyn to learn how to activate a license without being connected to the internet a license can be upgraded but not deactivated a license can be used on the same edge device (same host id) any number of times as long as it is within the valid date of expiration a license remains active until midnight on the expiration date and can be extended by up to 8 hours due to cache ttl litmus edge does not require ethernet or an internet connection during installation the installation works completely offline however, ethernet (not internet) is required during the first bootup after the installation is complete important for cloud deployment before activating the license, ensure all hardware / vm configuration steps that can modify the mac address (add/replace a network interface controller (nic) card) are finalized the license host id depends on the media access control (mac) address for the device the mac address identifies the devices on a network changing the mac address will invalidate the license access license ui to access the license pane log in to litmus edge from the navigation panel, navigate to system > license the license pane appears next steps set a license server docid\ o7eild y ianlsjktasli remove a license server docid\ pf486tapbnejyzridr hg online node locked license activations docid\ z0jnahi3yyxsagyxgt3ol offline node locked license activations docid\ tjfnxqxgbihqqhhthsopq remove a node locked license docid\ qyveevveoyfepwarykyi4 time synchronization issues docid\ nz0hjoda3xw0tdfm8xdj5
