Mitsubishi QJ71E71 (Gen1)
Important: This driver was deprecated in Litmus Edge version 3.3.2. We recommend using Mitsubishi QJ71E71.
Review the following information for setting up and configuring the Mitsubishi QJ71E71 (Gen1) PLC.
Driver type | Ethernet |
|---|---|
Validated devices/series | Mitsubishi QJ71E71 |
Replaced with Gen 2 driver |
To set up and configure this device in Litmus Edge, you will need to do the following:
- Step 1: Set up and Configure the PLC Device
- Step 2: Set up the PLC Device in Litmus Edge DeviceHub
- Step 3: Configure the List of Registers
Note: Only one connection is allowed per port defined in the PLC. See the steps below to view and edit the open ports on the PLC.
If the device is configured for Ethernet access, find its network parameters. Otherwise, follow the steps below.
To configure your device:

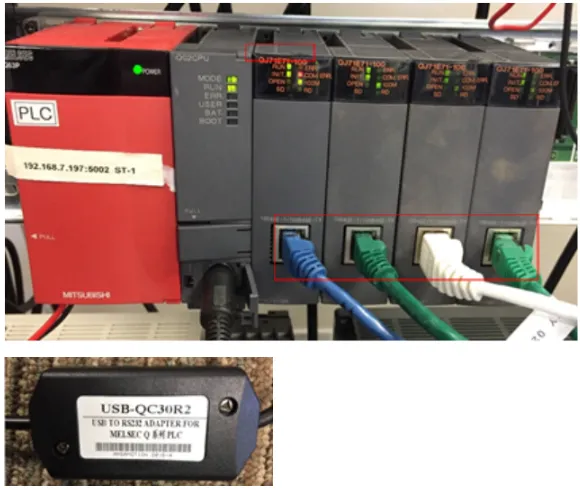

Note down the following information and refer to it as needed. Device: Mitsubishi Q02CPU+Q71E71-100 Communication I/F: Ethernet. Refer to the following figure.
Reference image of device- Launch GX Works2 v1.560J software, click Create a project, and then click Connection1 in the navigation panel.
- Set up communication parameters, and then click Connect.
- Set up the network parameters. The Station Number cannot be duplicated.
- Click Operation Setting to set up IP for modules.
- Click Online > Write to PLC, and then reboot the device to activate the settings.
- Click Connection1 in the navigation panel.
Use the following parameters/values when you Connect a Device with this driver:
Parameter | Value |
|---|---|
Type | Mitsubishi |
Driver | Mitsubishi QJ71E71-(Gen1) |
Network Address | The device address you defined in Step 1 |
Port | 5002 |
Station ID | 0 |
Show Device Security | Enabled |
Enable Alias Topics | Enabled |
Enable Data Store | Enabled |
When you Add Tags to the connected device, use the following tag/register mapping table.
Name | Value Type | Address Format | Min Address | Max Address | Description |
|---|---|---|---|---|---|
X | bit | DDDD | 0 | 9999 | Input Relay |
Y | bit | DDDD | 0 | 9999 | Output Relay |
M | bit | DDDDD | 0 | 65535 | Internal Relay |
SM | bit | DDDD | 0 | 2047 |
|
L | bit | DDDDD | 0 | 32237 | Latch Relay |
F | bit | DDDDD | 0 | 32237 | Annunciator |
V | bit | DDDDD | 0 | 32237 | Edge Relay |
B | bit | DDDDD | 0 | 32237 | Link Relay |
TS | bit | DDDDD | 0 | 25471 | Timer Contact |
TC | bit | DDDDD | 0 | 25471 | Timer Coil |
SS | bit | DDDDD | 0 | 25471 | Retentive Timer Contact |
SC | bit | DDDDD | 0 | 25471 | Retentive Timer Coil |
CS | bit | DDDDD | 0 | 25471 | Counter Contact |
CC | bit | DDDDD | 0 | 25471 | Counter Coil |
SB | bit | DDDDD | 0 | 32237 | Special Link Relay |
S | bit | DDDD | 0 | 8191 | Step Relay |
DX | bit | DDDD | 0 | 8191 | Direct Input |
DY | bit | DDDD | 0 | 8191 | Direct Output |
CN | word | DDDD | 0 | 1023 | Counter current |
D | word | DDDD | 0 | 9999 | Data Register |
W | word | DDDD | 0 | 8191 | Link Register |
TN | word | DDDDD | 0 | 25471 | Timer Current Value |
SN | word | DDDD | 0 | 25471 | Retentive Timer Current Value |
SD | word | DDDD | 0 | 2047 |
|
R | word | DDDD | 0 | 9999 | File Register |
ZR | word | DDDDDD | 0 | 999999 | File Register |
Z | word | DD | 0 | 20 | Index Register |
