Install Litmus Excel Add-ins

7min

To install the Litmus Excel Add-ins, you need to download the file, run the installer, and ensure the add-in is enabled in Microsoft Excel.

Before You Begin

Ensure you meet the following requirements:

  • You need admin rights on your system to install the add-ins.
  • The minimum Litmus Edge version needed to connect Excel with the Litmus Excel Addins is 3.16.5.
  • A stable internet connection is required to download the Litmus_Excel_Addins.exe installer file.

Installation Steps

Step 1: Download the Litmus Excel Add-ins

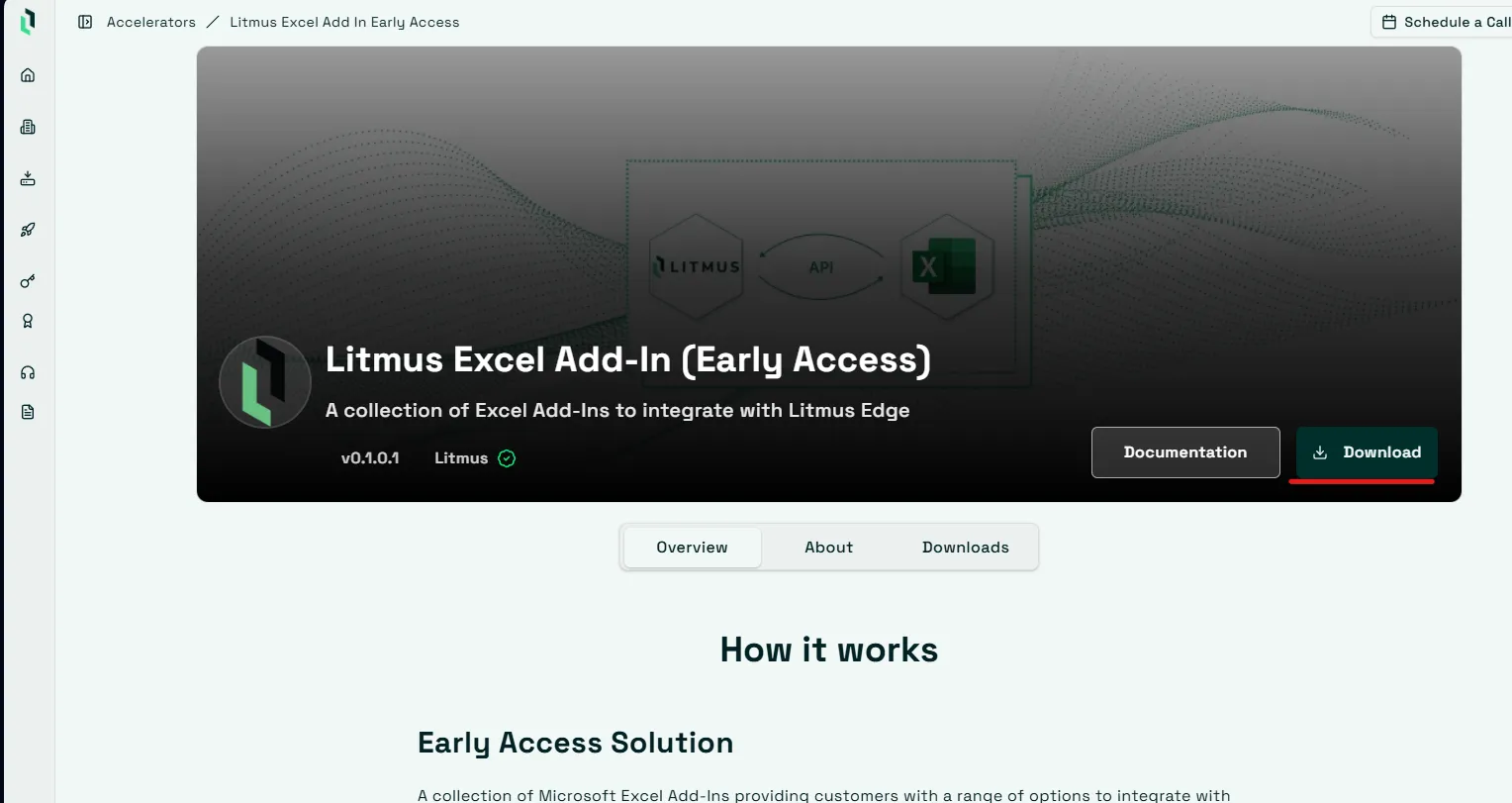

  1. Navigate to Litmus Excel Add-ins solution.

  2. Click the Download button.

    Document image

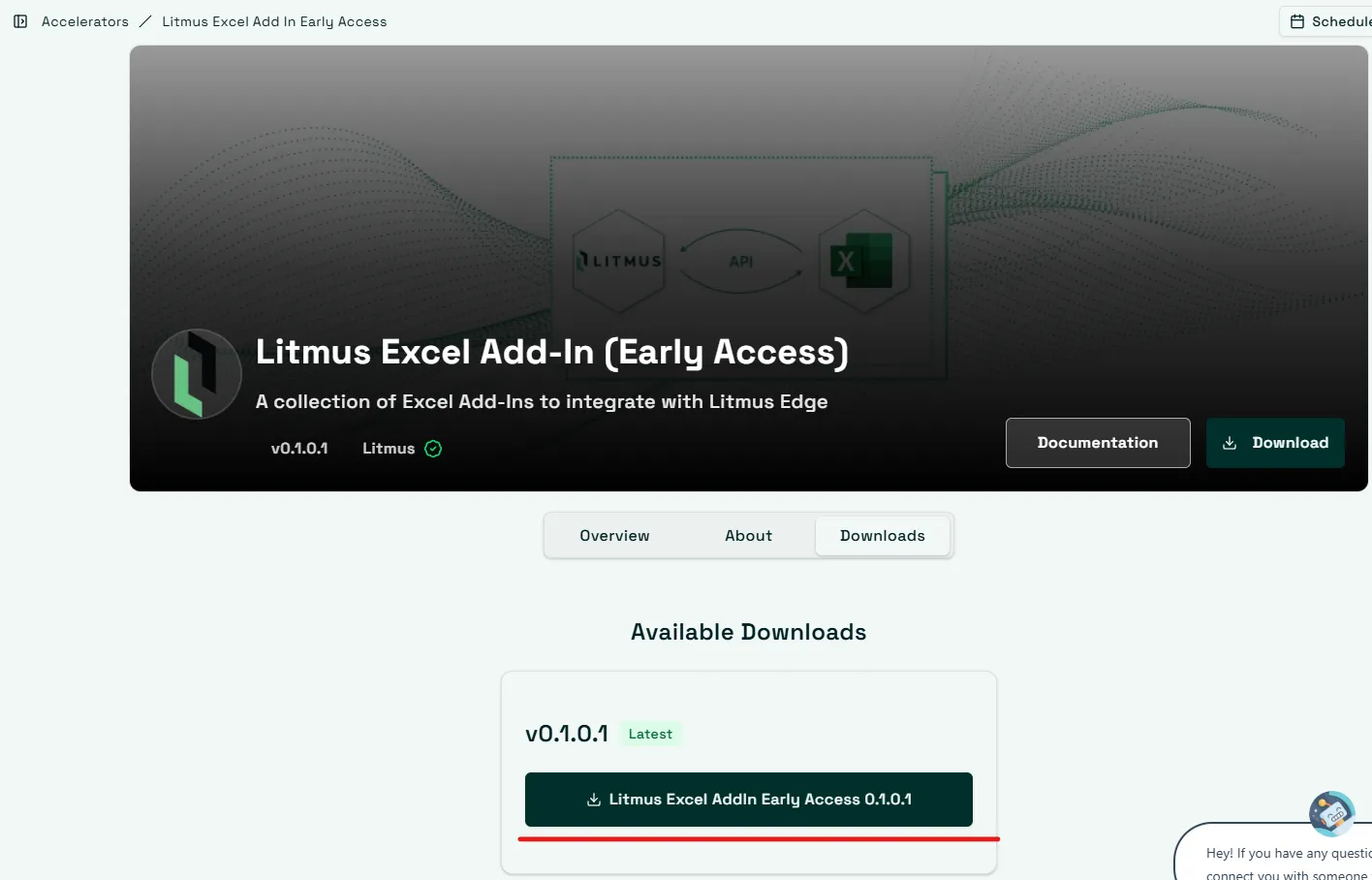

  3. You will be redirected to the Litmus Central Portal where you can download the installer.

    Document image

  4. Download the Litmus_Excel_AddIns.exe file to your computer.

Step 2: Run the Installer

  1. Double-click the Litmus_Excel_AddIns.exe file to launch the installation.

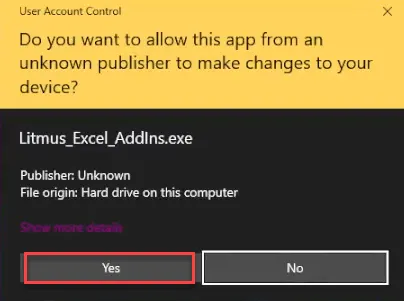

  2. Grant Administrator Access when prompted.

    Document image


Step 3: Follow the Installation Wizard

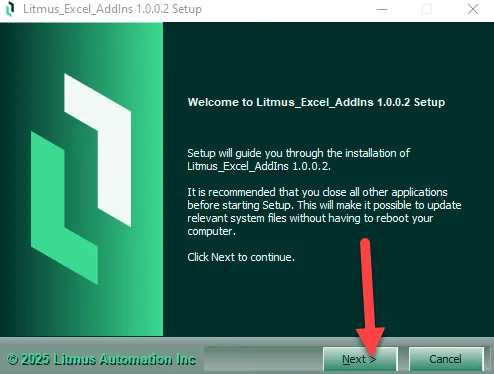

  1. Click Next to proceed.

    Document image

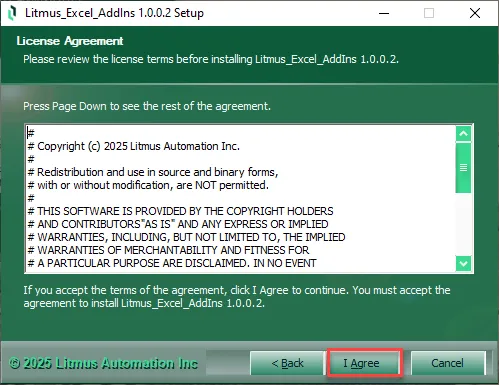

  2. Click I Agree to accept the License Agreement.

    Document image

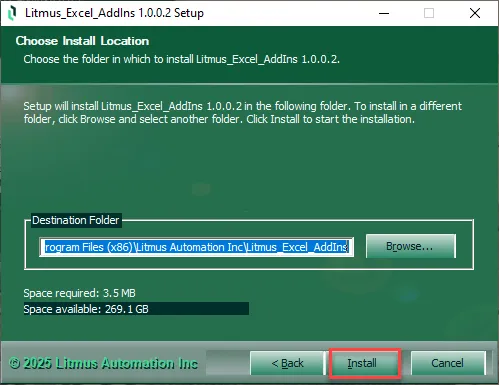

  3. Choose the installation location. Default: C:\Program Files (x86)\Litmus Automation Inc\Litmus Excel Add-ins).

  4. Click Install.

    Document image

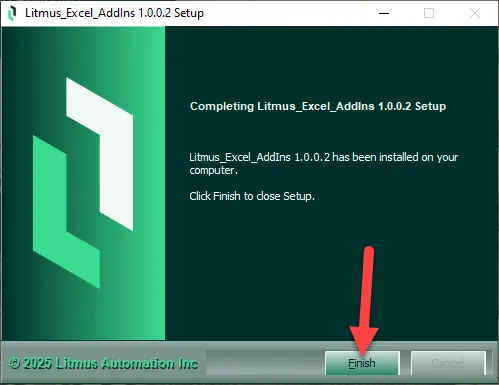

  5. Once the installation is complete, click Finish.

    Document image


Fonts Installation

  • The installer automatically installs two fonts:
    • Inter
    • Space Grotesk
  • The fonts are preinstalled during the add-in installation process and do not require a separate manual setup.

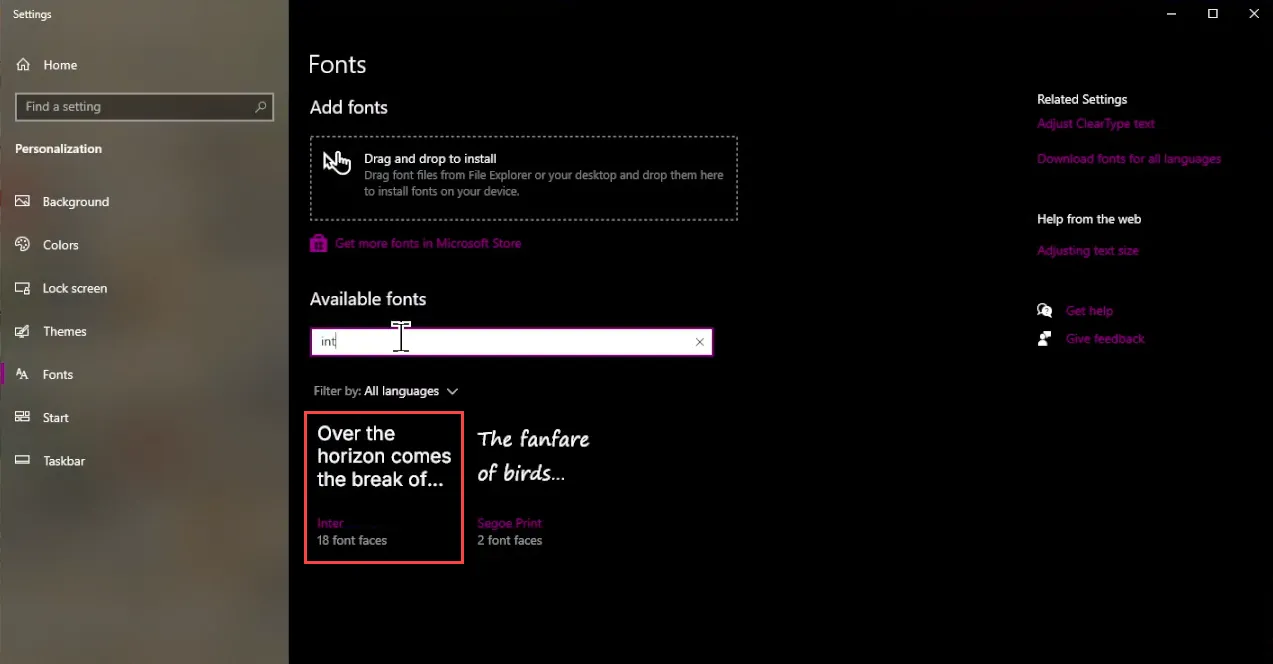

  • To verify that the fonts are installed, navigate to Settings > Personalization > Fonts on Windows and search for Inter or Space Grotesk.
Document image


Step 4: Verify Add-in Activation in Excel

  1. Open Microsoft Excel.

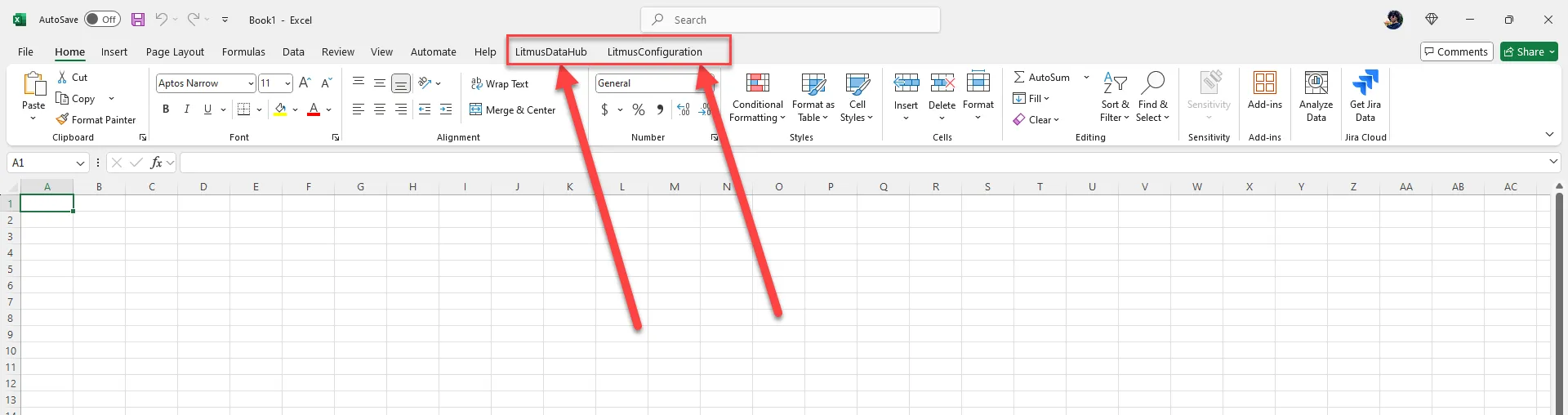

  2. You should see two new tabs:

    Document image

    • LitmusDataHub: Provides access to data integration and management features, allowing users to connect and analyze data efficiently.
    • LitmusConfiguration: Contains settings and customization options to configure the add-ins according to specific edge device requirements.
  3. If the tabs are not visible, enable the add-ins manually:
    • Go to File > Excel Options > Add-ins.

    • In the Manage dropdown, select Excel Add-ins and click Go.

      Document image

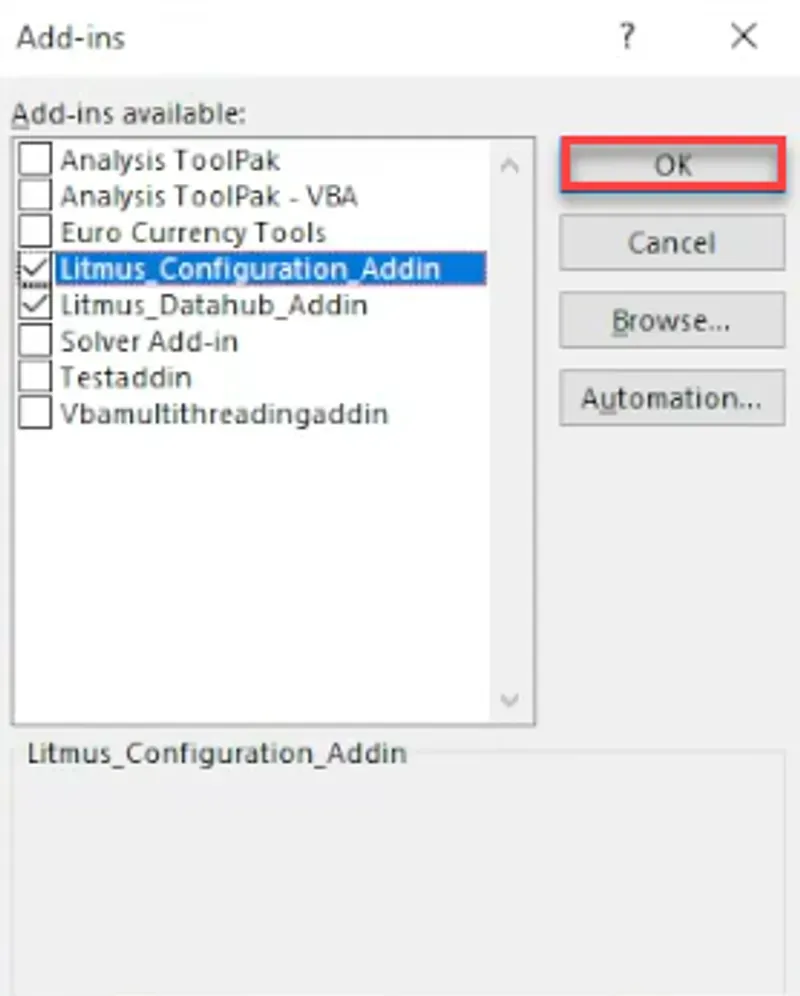

    • Enable the Litmus Add-ins and click OK.

      Document image


Summary

The installation procedure guarantees the simultaneous installation of all requisite add-ins. Users are not required to install multiple files individually. By default, all add-ins are automatically enabled; however, they may be manually activated or deactivated through the Excel settings if necessary.
