Setup InfluxDB 2.x via Docker with Presets

15min

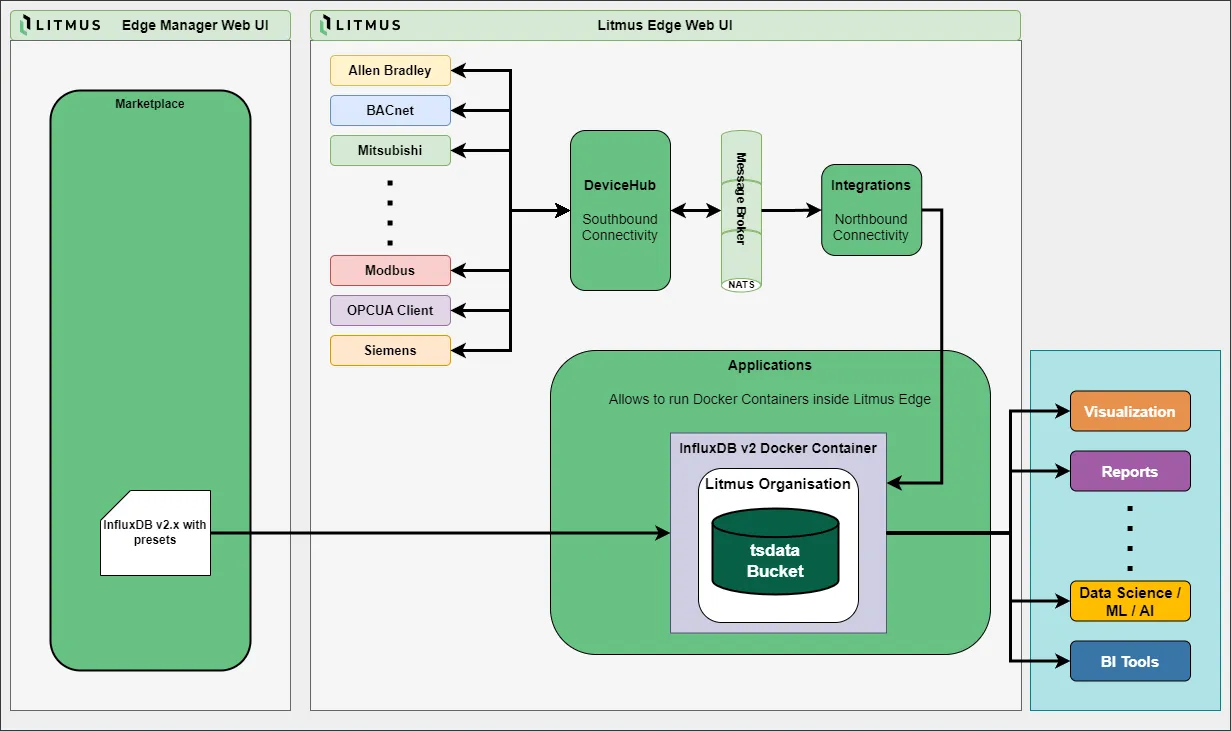

Overview
﻿
How to deploy InfluxDB 2.x via Docker with presets
Here is an example to run InfluxDB 2.x with Presets with Docker :
IMPORTANT: Litmus has currently verified version 2.5.1, which is why the docker run command will not use the "latest" tag. If a user does decide to choose latest or a later version, the docker run command may have to be adopted in case the vendor influxdata has introduced changes to their product. Therefore, please consult the official docker hub page for potential changes.
Note: The example uses docker running on Ubuntu, as we do not recommend to use Litmus Edge for this.
docker run -itd -p 8086:8086
      -v $PWD/data:/var/lib/influxdb2
      -v $PWD/config:/etc/influxdb2
      -e DOCKER_INFLUXDB_INIT_MODE=setup
      -e DOCKER_INFLUXDB_INIT_USERNAME=admin
      -e DOCKER_INFLUXDB_INIT_PASSWORD=litmusedge-s3cr3t!
      -e DOCKER_INFLUXDB_INIT_ORG=Litmus
      -e DOCKER_INFLUXDB_INIT_BUCKET=tsdata
      -e DOCKER_INFLUXDB_INIT_RETENTION=1w
      -e DOCKER_INFLUXDB_INIT_ADMIN_TOKEN=z0bsqi47j0ifnz6982mylpyo2f2r9lq9
      influxdb:2.5.1

InfluxDB docker image is available at https://hub.docker.com/_/influxdb﻿
⚠️ When using Docker, the following environment variables can be set before running the container to presetup InfluxDB 2.x.
Environment variables
Description
Sample value
Type

DOCKER_INFLUXDB_INIT_MODE

Used for bootstrap to set the container initial the setup mode.

setup


String


DOCKER_INFLUXDB_INIT_USERNAME

The username to set for the system's initial super-user (Required).
admin

String


DOCKER_INFLUXDB_INIT_PASSWORD

The password to set for the system's initial super-user (Required).

litmusedge-s3cr3t!


String


DOCKER_INFLUXDB_INIT_ORG

The name to set for the system's initial organization (Required)

Litmus


String


DOCKER_INFLUXDB_INIT_BUCKET

The name to set for the system's initial bucket (Required).

tsdata


String


DOCKER_INFLUXDB_INIT_RETENTION

The duration the system's initial bucket should retain data. If not set, the initial bucket will retain data forever.

1w (1 week or 168 hours)


String


DOCKER_INFLUXDB_INIT_ADMIN_TOKEN

The authentication token to associate with the system's initial super-user. If not set, a token will be auto-generated by the system.
To get a token, use any system you have available to generate these.
One option is to use LE Tokens option.

z0bsqi47j0ifnz6982mylpyo2f2r9lq9


String

There are additional options to for example:
persist data to the current working directory in the host file system
-v $PWD/data:/var/lib/influxdb2
persist config to the current working directory in the host file system
-v $PWD/config:/etc/influxdb2
(Optional) How to add the InfluxDB 2.x via Docker with presets solution to Litmus Edge Manager marketplace
Note: This is an optional way to deploy the InfluxDB 2.x with presets on a Litmus Edge. Which is not a recommended way of deploying a time series database for long term storage. This should only be done for development or validation purposes and then replaced by an implementation in a data center or as SaaS.
This deployment requires that a Litmus Edge is connected to a deployed Litmus Edge Manager.
The user also should have experience in adding applications to the LEM Marketplace.
Step 1:
Download the file InfluxDB_2_x_with_presets.json through the Download button, to import the application to LEM Marketplace.
Step 2:
Access the LEM User UI via your browser.
Step 3:
Access your company and project and select the Features menu. ​
﻿
Step 4:
Select the Marketplace option.​​
﻿
Step 5:
Select the catalog you want to use.​​
﻿
Step 6:
Select the Add or Import an Application icon.​
﻿
Step 7:
Import the downloaded json file. ​
﻿
​Step 8:
The application is now part of the catalog. ​​
﻿
(Optional) How to deploy InfluxDB 2.x via Docker with presets from Litmus Edge Manager marketplace
Note: This is an optional way to deploy the InfluxDB 2.x with presets on a Litmus Edge. Which is not a recommended way of deploying a time series database for long term storage. This should only be done for development or validation purposes and then replaced by an implementation in a data center or as SaaS.
This deployment requires that a Litmus Edge is connected and that the solution has been added to a LEM Marketplace catalog previously.
It is expected, that users are knowledgeable about how applications and solutions are deployed from LEM.
Deploying InfluxDB 2.x with presets from LEM requires a series of parameters to be provided.
﻿
Parameter
Description
Sample value
Type
USERNAME
The username to set for the system's initial super-user (Required). -> used to set environmental variable DOCKER_INFLUXDB_INIT_USERNAME
admin
String
PASSWORD
The password to set for the system's initial super-user (Required). -> used to set environmental variable DOCKER_INFLUXDB_INIT_PASSWORD
litmusedge-s3cr3t!
String
ORGANIZATION
The name to set for the system's initial organization (Required) -> used to set environmental variable DOCKER_INFLUXDB_INIT_ORG
Litmus
String
BUCKET
The name to set for the system's initial bucket (Required). -> used to set environmental variable DOCKER_INFLUXDB_INIT_BUCKET
tsdata
String
RETENTIONTIME
The duration the system's initial bucket should retain data. If not set, the initial bucket will retain data forever. -> used to set environmental variable DOCKER_INFLUXDB_INIT_RETENTION
1w (1 week or 168 hours)
String
ADMIN_TOKEN
The authentication token to associate with the system's initial super-user. If not set, a token will be auto-generated by the system. -> used to set environmental variable DOCKER_INFLUXDB_INIT_ADMIN_TOKEN
To get a token, use any system you have available to generate these.
One option is to use LE Tokens option.
z0bsqi47j0ifnz6982mylpyo2f2r9lq9
String
RESTART
Defines the restart option for the container. Options are: no, always, on-failure
always
String
PORT
Used to set the port command -p <PORT>:8086.
As by default port 8086 is already be used by the internal Litmus Edge influxDB, port 8086 can not be used.




⚠️ This implementation does not provide parameters for the persistent data and configuration.
How to access the newly deployed InfluxDB 2.x
After the container is deployed (use docker ps-a to check).
﻿
A browser can be used to access the standard Influx DB 2.x UI.
Step 1:
Open a browser and enter the URL for the InfluxDB 2.x UI.
URL: http://<IP of Influx DB>:8086
Example: http://192.168.2.54:8086
﻿
Step 2:
Use the username and password from the docker run command to logon.
Step 3:
You will now log on to the organization provided in the docker run command.
﻿
How to publish data to the newly deploy InfluxDB 2.x
There are several choices for users to send data from Litmus Edge directly to the newly deployed InfluxDB 2.x
Use the Litmus Edge DataHub External option.
Use the Litmus Edge Integration for Influx DB 2.x.
Use the Litmus Solution LE-Native To InfluxDB v2.
Use the Litmus Solution LE-MQTT To InfluxDB v2.
Note: All of them will require the API key used in the docker run command, as well as the organization and bucket used in the docker run command.
How to use FluxQL to query data from InfluxDB 2.x
﻿FluxQL is the new query language developed by influxdata to access data from InfluXDB 2.x.
This is a query example taken from Grafana:
from(bucket: "tsdata")  |> range(start: v.timeRangeStart, stop:v.timeRangeStop)  |> filter(fn: (r) =>    r._measurement == "PLC_RC1_CCS_08.5477562D-FEA6-4D43-9376-8F77B01C21D9" and    r._field == "HTR_HTG_SCTemp_PV"  )
To query data with FluxQL, it is required to provide the bucket, which is the same bucket taken from the docker run command.

from(bucket: "tsdata")
The range is sued to query a specific time period and will depend on the application used. In the example, the start and end time is set automatically set by Grafana based on the time period set in the dashboard.
﻿
range(start: v.timeRangeStart, stop:v.timeRangeStop)
The filter basically acts as an equivalent to the from and where clause from InfluxQL.
Where the r._measurement is taking in the role of the from clause and basically can be understood as "table" from a relational DB
The r._field is acting as a kind of where clause and could be seen as equivalent to "Where tag = 'xyz'".
filter(fn: (r) =>    r._measurement == "PLC_RC1_CCS_08.5477562D-FEA6-4D43-9376-8F77B01C21D9" and    r._field == "HTR_HTG_SCTemp_PV"  )
Note: To assist with the development of FluxQL queries, the InfluxDB 2.x UI offers a nice tool in the form of their Data explorer.
﻿
This offers a simple way to navigate the time series and build queries using simple selecting of measurements and fields.
﻿
Optional filters are possible.
﻿
The Script Editor then allows to show the actual FluxQL query.
﻿
﻿

Environment variables	Description	Sample value	Type
DOCKER_INFLUXDB_INIT_MODE	Used for bootstrap to set the container initial the setup mode.	setup	String
DOCKER_INFLUXDB_INIT_USERNAME	The username to set for the system's initial super-user (Required).	admin	String
DOCKER_INFLUXDB_INIT_PASSWORD	The password to set for the system's initial super-user (Required).	litmusedge-s3cr3t!	String
DOCKER_INFLUXDB_INIT_ORG	The name to set for the system's initial organization (Required)	Litmus	String
DOCKER_INFLUXDB_INIT_BUCKET	The name to set for the system's initial bucket (Required).	tsdata	String
DOCKER_INFLUXDB_INIT_RETENTION	The duration the system's initial bucket should retain data. If not set, the initial bucket will retain data forever.	1w (1 week or 168 hours)	String
DOCKER_INFLUXDB_INIT_ADMIN_TOKEN	The authentication token to associate with the system's initial super-user. If not set, a token will be auto-generated by the system. To get a token, use any system you have available to generate these. One option is to use LE Tokens option.	z0bsqi47j0ifnz6982mylpyo2f2r9lq9	String

Parameter	Description	Sample value	Type
USERNAME	The username to set for the system's initial super-user (Required). -> used to set environmental variable DOCKER_INFLUXDB_INIT_USERNAME	admin	String
PASSWORD	The password to set for the system's initial super-user (Required). -> used to set environmental variable DOCKER_INFLUXDB_INIT_PASSWORD	litmusedge-s3cr3t!	String
ORGANIZATION	The name to set for the system's initial organization (Required) -> used to set environmental variable DOCKER_INFLUXDB_INIT_ORG	Litmus	String
BUCKET	The name to set for the system's initial bucket (Required). -> used to set environmental variable DOCKER_INFLUXDB_INIT_BUCKET	tsdata	String
RETENTIONTIME	The duration the system's initial bucket should retain data. If not set, the initial bucket will retain data forever. -> used to set environmental variable DOCKER_INFLUXDB_INIT_RETENTION	1w (1 week or 168 hours)	String
ADMIN_TOKEN	The authentication token to associate with the system's initial super-user. If not set, a token will be auto-generated by the system. -> used to set environmental variable DOCKER_INFLUXDB_INIT_ADMIN_TOKEN To get a token, use any system you have available to generate these. One option is to use LE Tokens option.	z0bsqi47j0ifnz6982mylpyo2f2r9lq9	String
RESTART	Defines the restart option for the container. Options are: no, always, on-failure	always	String
PORT	Used to set the port command -p <PORT>:8086. As by default port 8086 is already be used by the internal Litmus Edge influxDB, port 8086 can not be used.
