Static Attributes Wizard
Static Attributes displays the metadata values for the model the instance belongs to.
You can customize the attribute values for the instance.
To assist with the definition of the Static Attributes and ensure that the JSON Object is correctly formatted, the DT Instance Management Tool provides a Static Attribute Wizard.
Access the Static Attribute Wizard
Notes:
To access the Static Attribute Wizard it is required that:
- The entry in Column Static Attributes is not empty.
- A Model Name is selected
- An Instance Name is defined
Select the respective cell in Column Static Attrbiute for the Instance you want to customize the Static Attribute for.

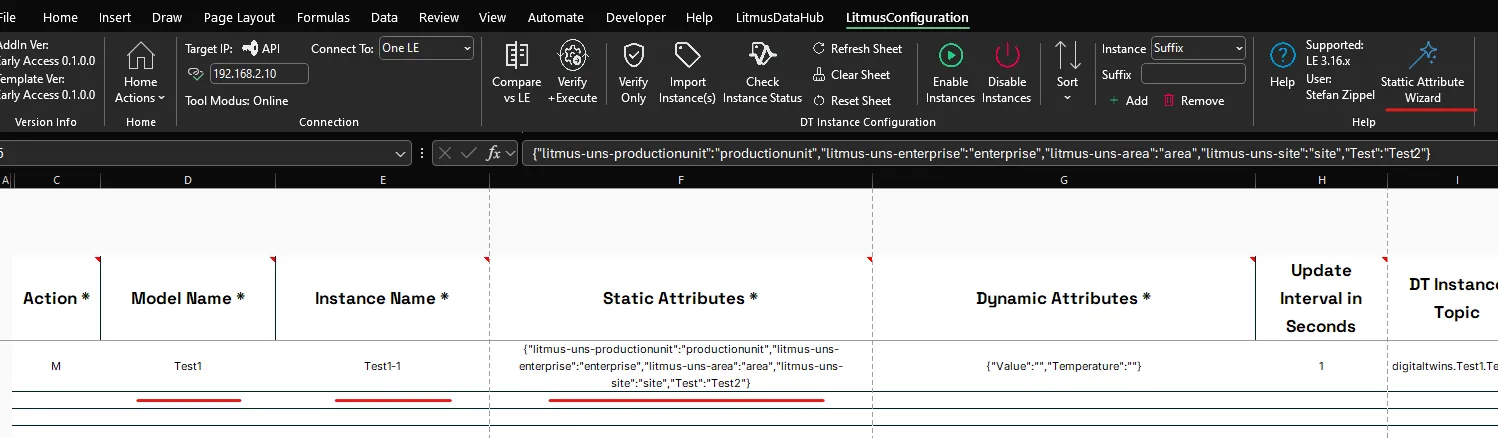

If all conditions are met, the Static Attribute Wizard button is shown in the Help section of the LitmusConfiguration ribbon.
Open the Static Attribute Wizard by pressing the Static Attribute Wizard button.

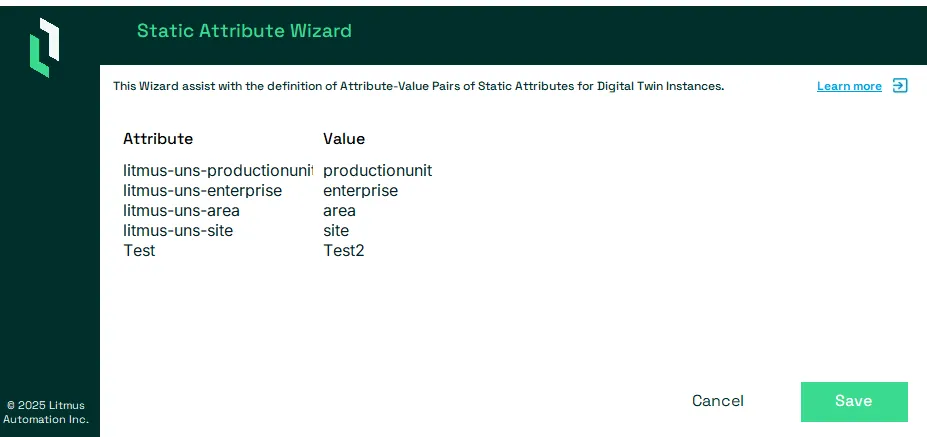

The Static Attribute wizard will show.
Edit a Static Attribute Key-Value Pair

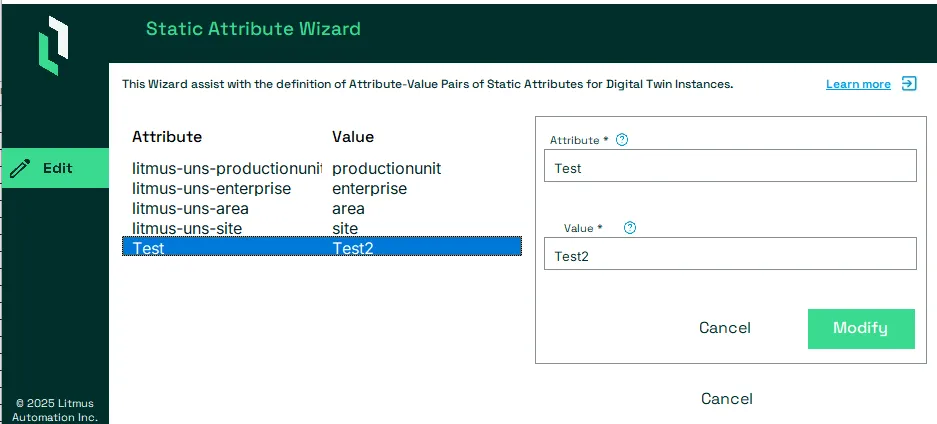

Select the Key-Value pair you want to edit to open its Edit screen.

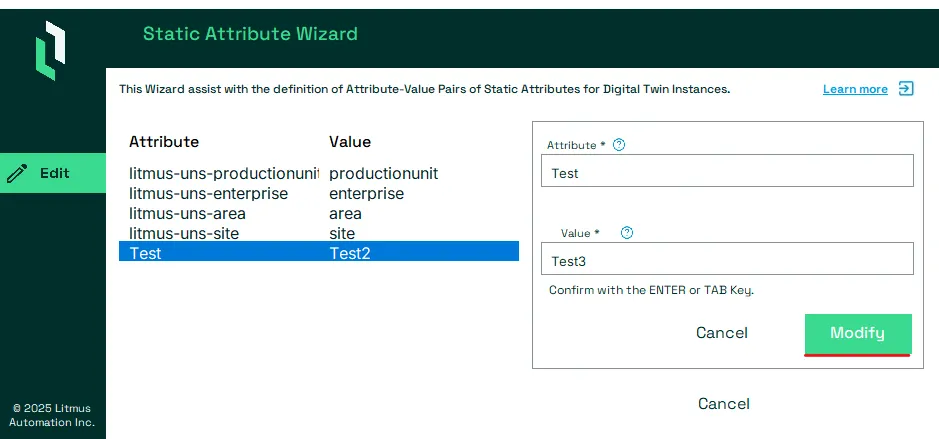

Edit the Value and press the Modify button.
Notes:

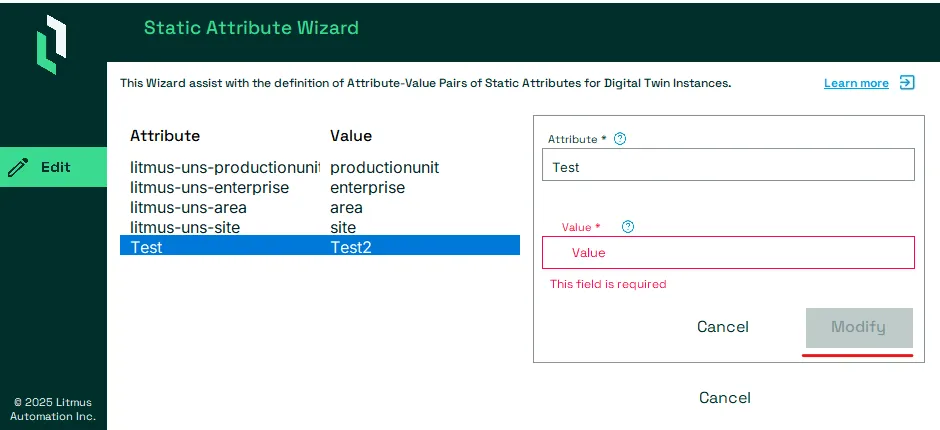

If not both Name and Value are provided, the Modify button will remain grayed out and the Key-Value pair can not be saved.
The wizard also performs a verification for each entry and will show any violation in red. In this case the Modify button will also be grayed out to prevent the saving of any invalid Key-Value pair.
Save the Static Attributes

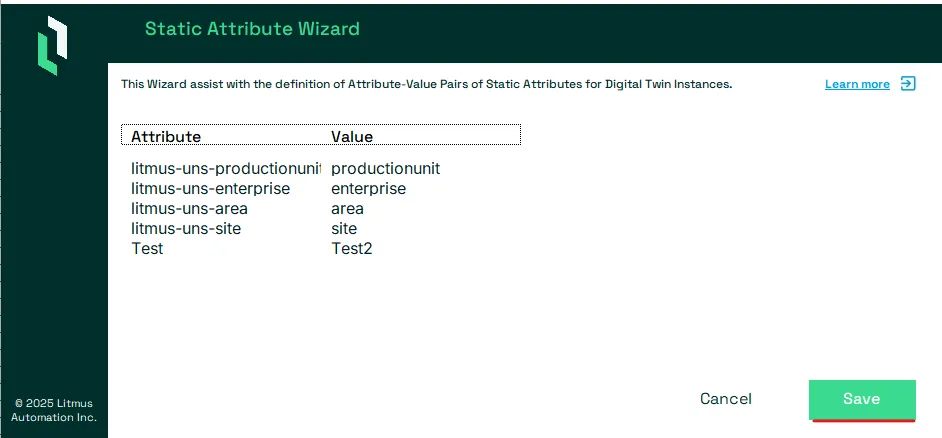

To save all the defined Key-Value pairs as a new Static Attributes JSON Object, press the Save button.

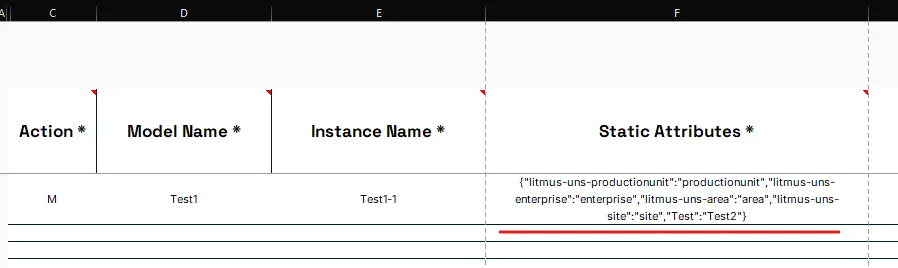

This will create the correctly formatted Static Attributes JSON Object and store it in column Static Attributes for the Instance.
Important: This will overwrite the current value in column Static Attributes.

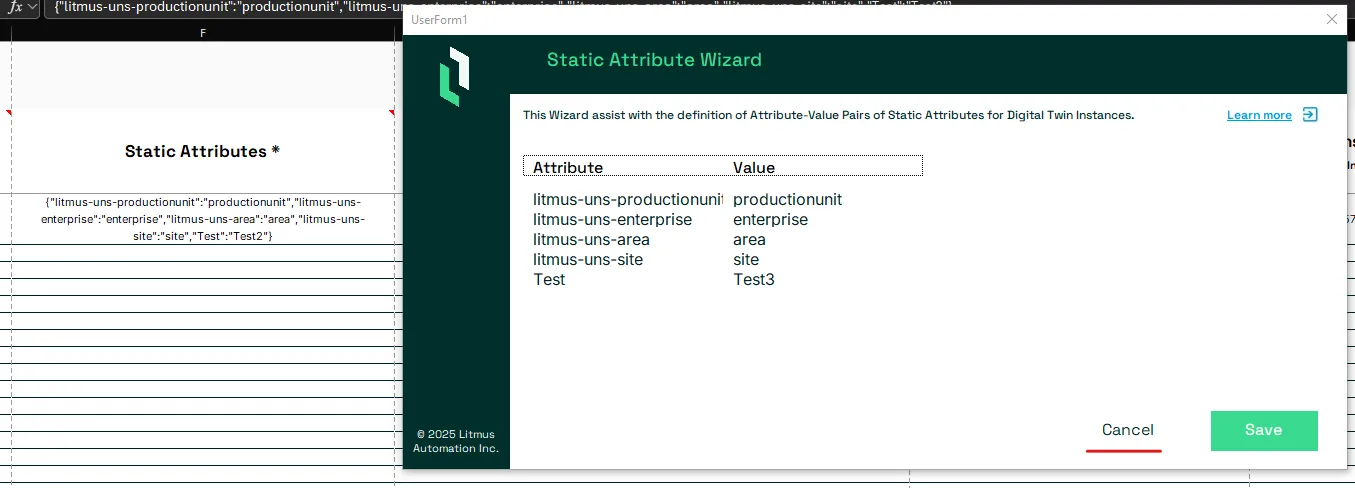

Cancel the Static Attribute Wizard
If a user decides to not save the current Static Attribute Wizard configuration, they can press the Cancel button.
Notes:
This will not overwrite the current value in column Static Attributes.
