Tag Browse Wizard
14 min

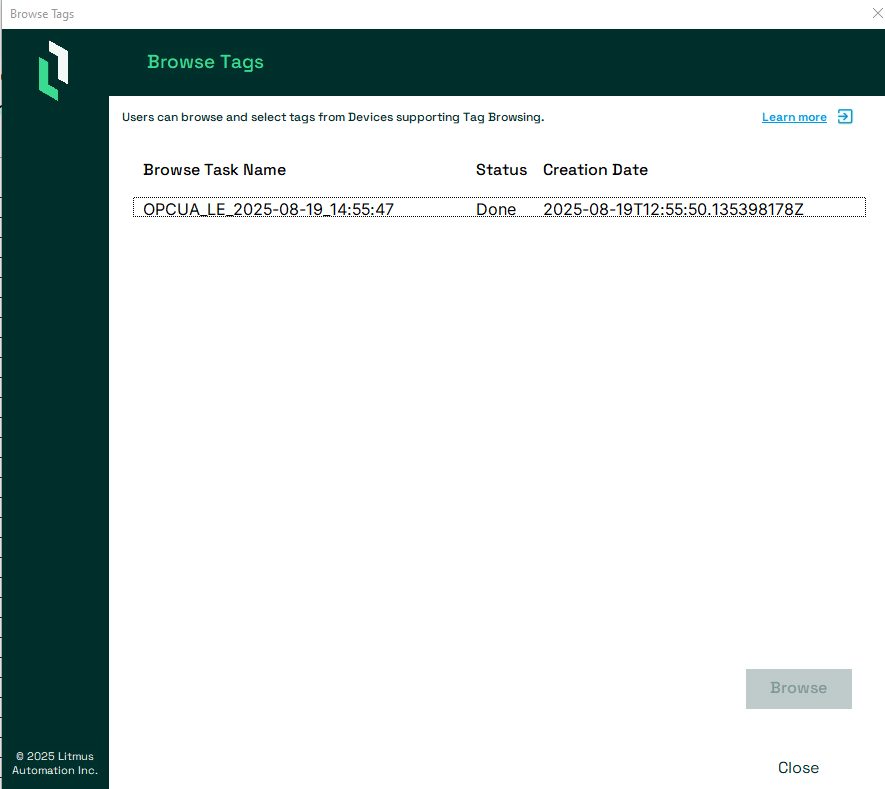

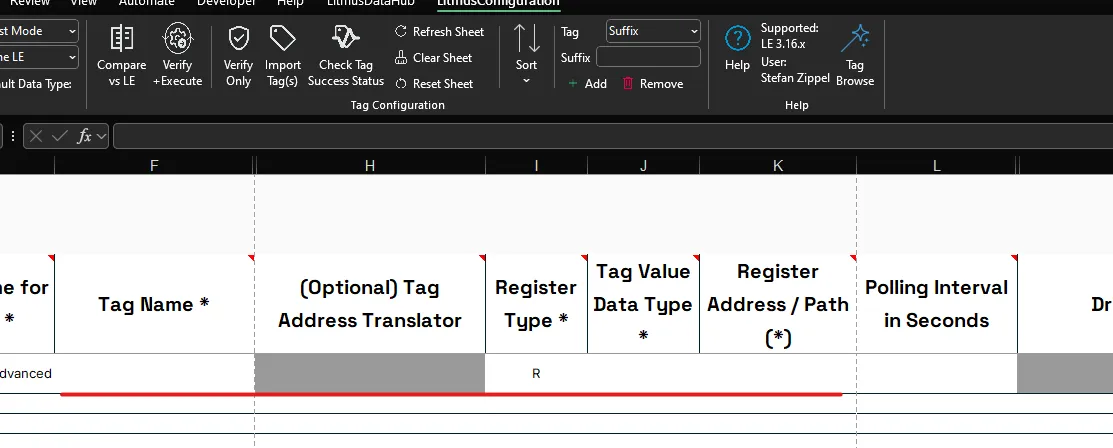

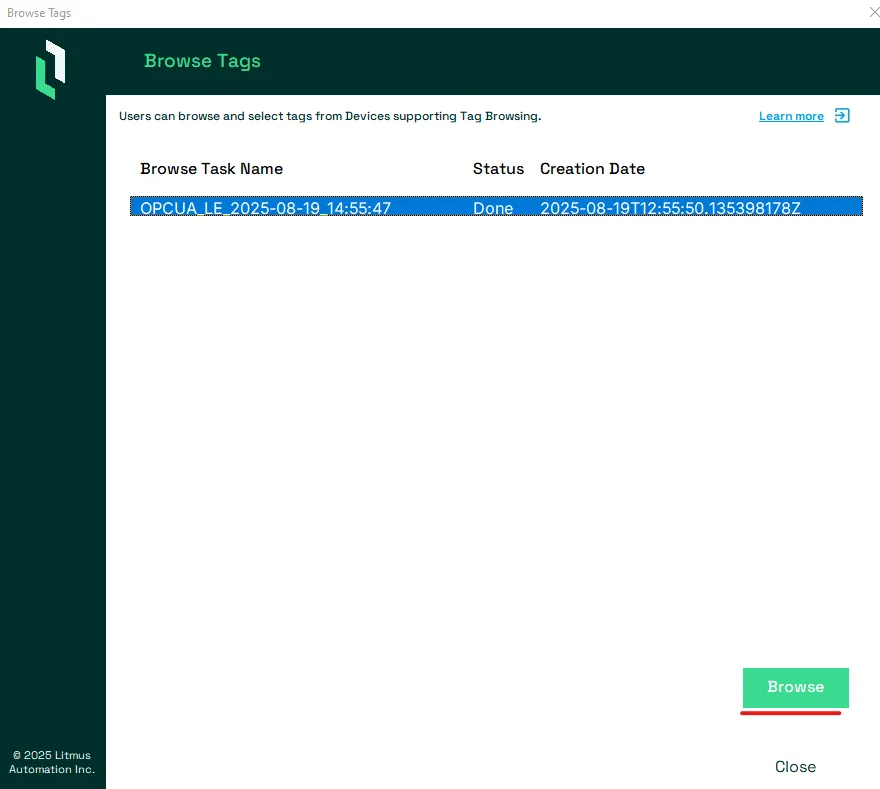

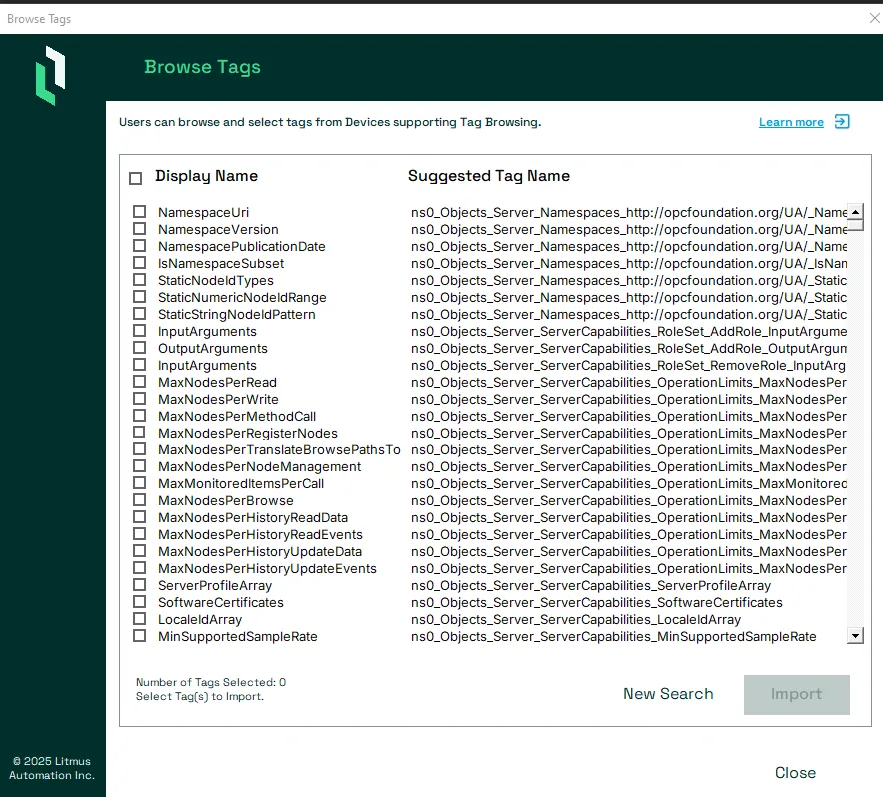

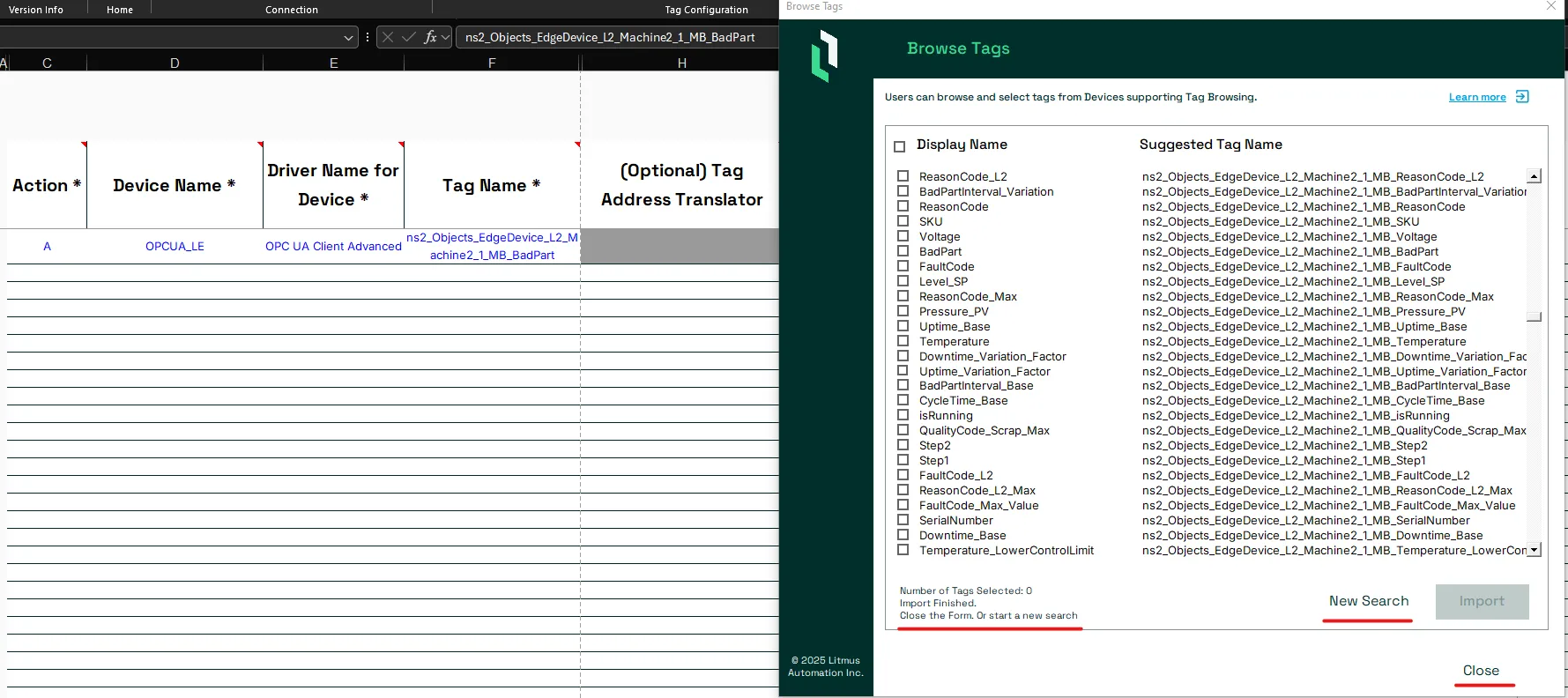

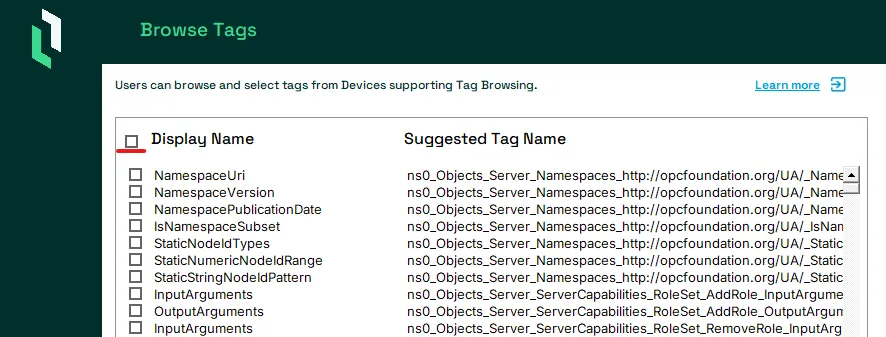

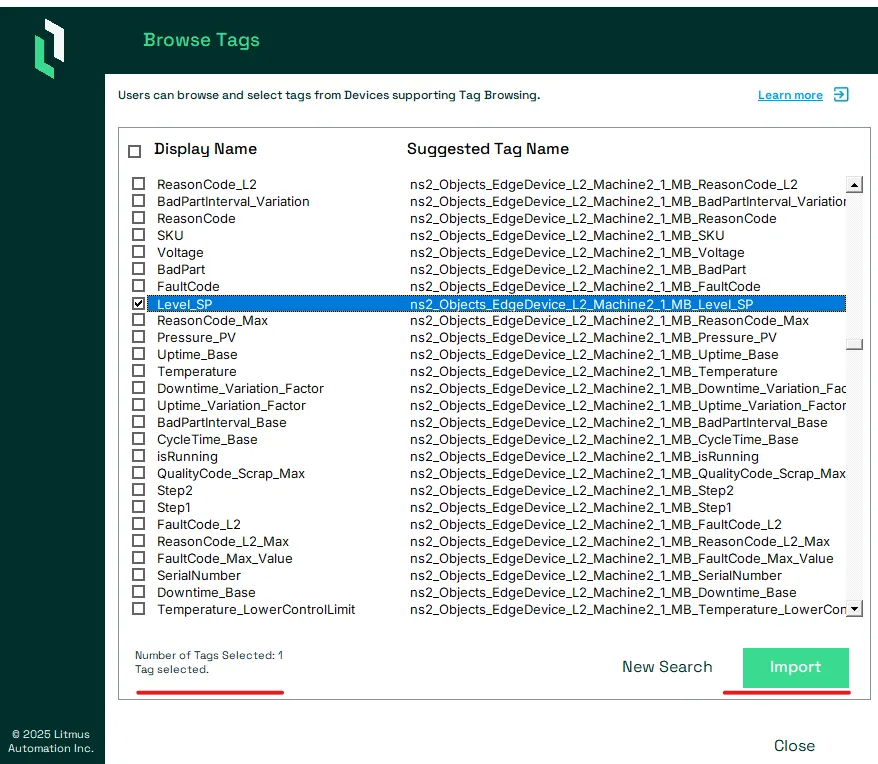

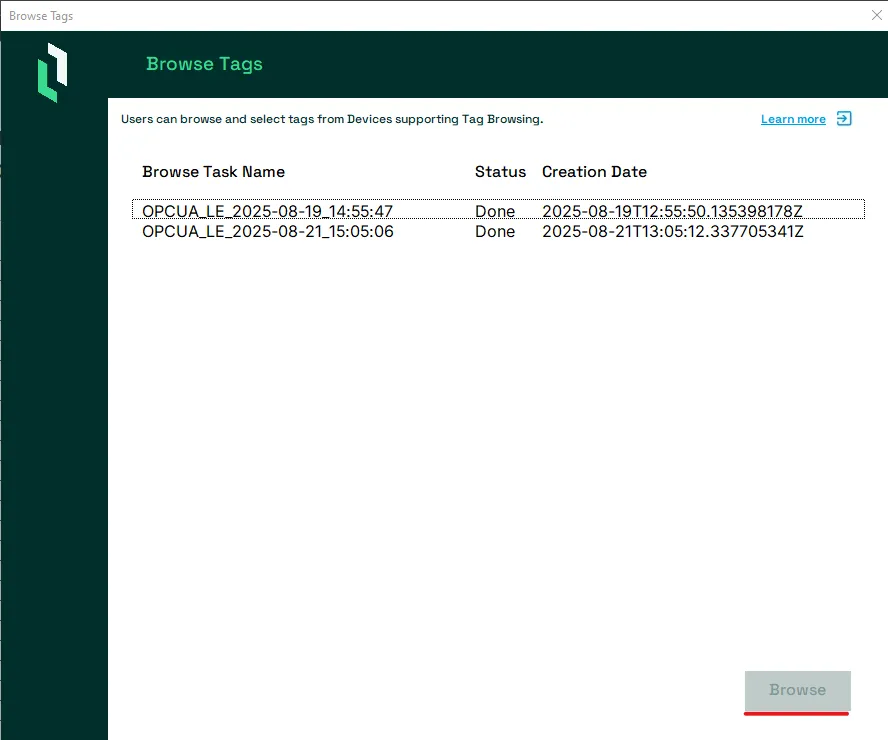

for the opc ua client advanced driver and litmus edge versions after 3 16 x provide the option to browse for tags against the opcua server and import them this reduces the number of steps required to setup a tag as well as allowing to setup multiple tags at once before you begin before you will be able to browse for tag with the excel tool, you will need to setup at least one browse for tags (after 3 16 x) docid\ i3ezgnliqb29yycpnkfzs and have it being completed access the tag browse wizard notes to access the tag browse wizard it is required that a driver name for device is the opc ua client advanced driver litmus edge runs a version higher than 3 16 x select a cell in any of the columns tag name , tag address translator , register type , tag value data type , register address / path for a row with the opc ua client advanced driver if all conditions are met, the tag browse wizard button is shown in the help section of the litmusconfiguration ribbon open the tag browse wizard by pressing the tag browse wizard button setting up the browse select the browse task select from the list of browse task(s) with the status done , which browse task to use notes browse tasks need to be status done to be able to be used browse tasks which are still updating on litmus edge will not show in the list initiate the browse if a browse task is selected, the browse button will change to green to initiate the browse press the green browse button notes if no browse tags is selected the browse button stayes grayed out importing tag(s) after the browse has been initiated, the results are shown in a list box the user will see the display name as well as the suggested tag name notes in case a browse task returned no tag(s), the user can initiate a new search selecting all tags to select all tags for import, check the checkbox of the header row unselecting all tags to unselect all tags for import, uncheck the checkbox of the header row select individual tag(s) to select individual tag(s) for import, check their respective row or checkbox unselect individual tag(s) to unselect individual tag(s) for import, uncheck their respective checkbox or row import tag(s) if at least one tag has been selected from the list, the import button will change to green and an import can be initiated important this will overwrite any previous value in column tag name to initiate an import press the green import button if no tag(s) have been selected, the import button will be greyed out notes the tag browse wizard will show how many tag(s) have been selected in the left lower corner after an import finished once all the selected tag(s) have been imported, the user is informed about the result and has three further options close the wizard this will end the import and the user can proceed with their desired actions on the sheet select another tag browse wizard /#select the browse task to execute a new search tag browse wizard /#import tags from the list they previously hadn't selected for another import
