Import Model(s) Wizard
17 min

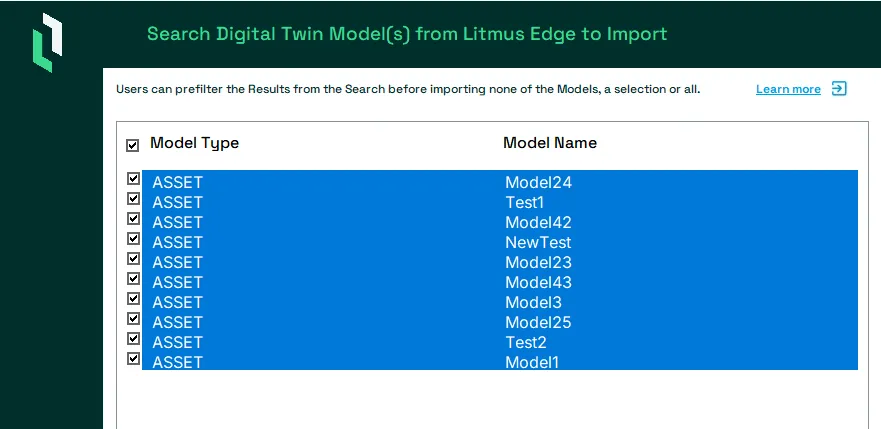

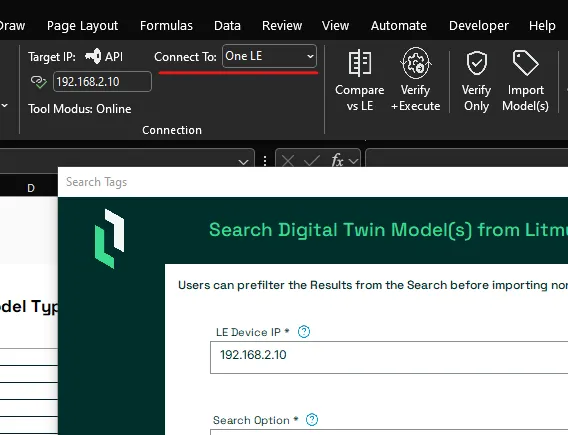

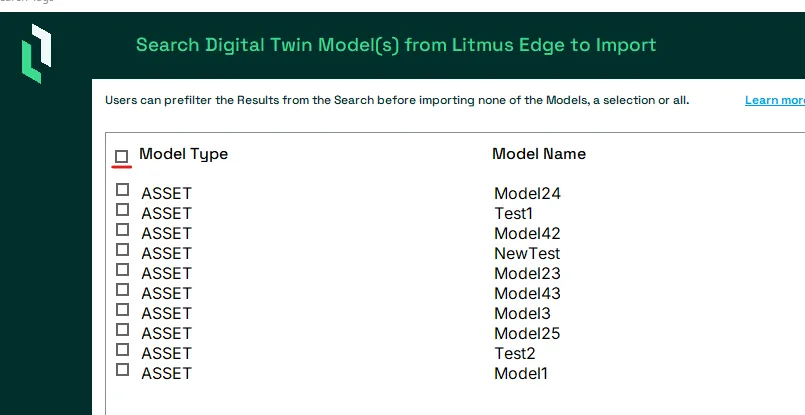

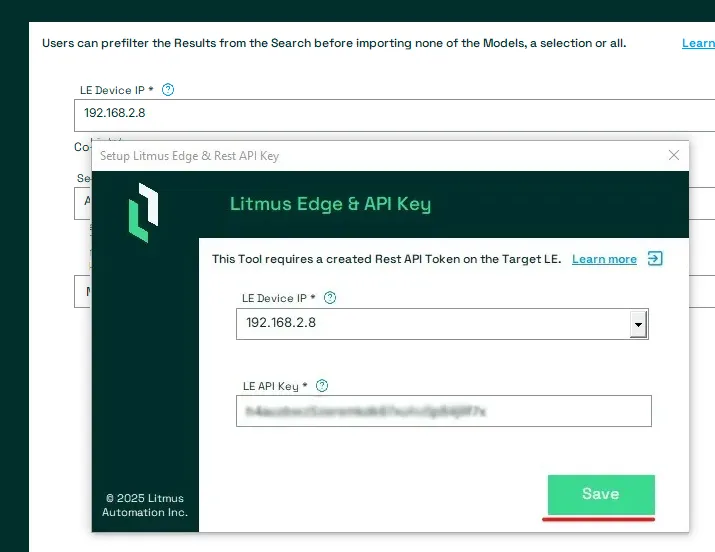

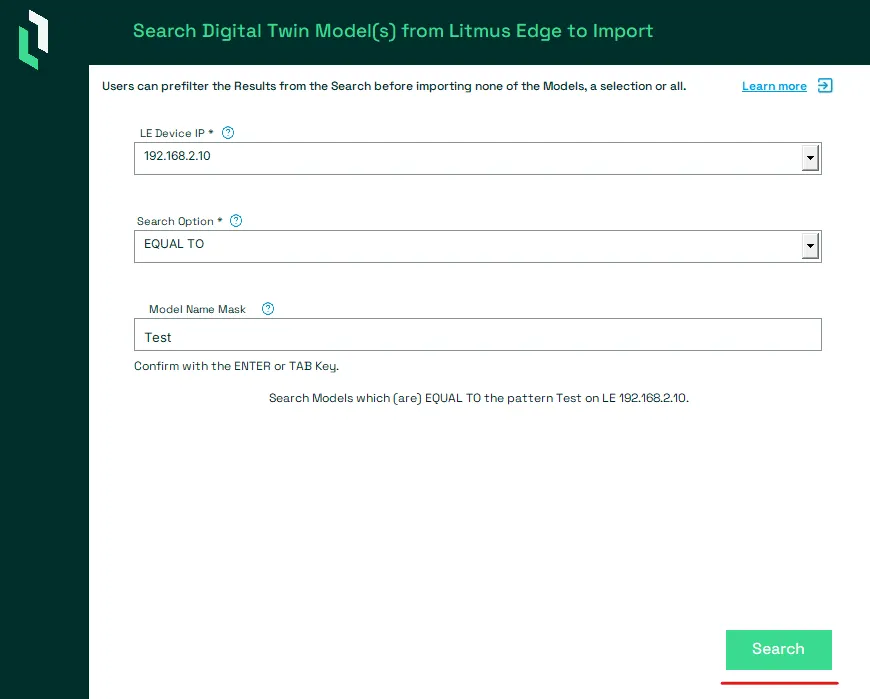

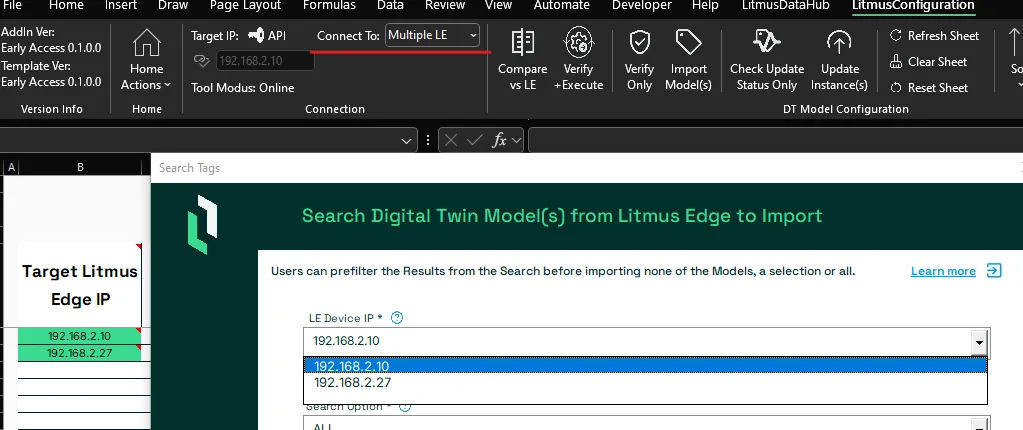

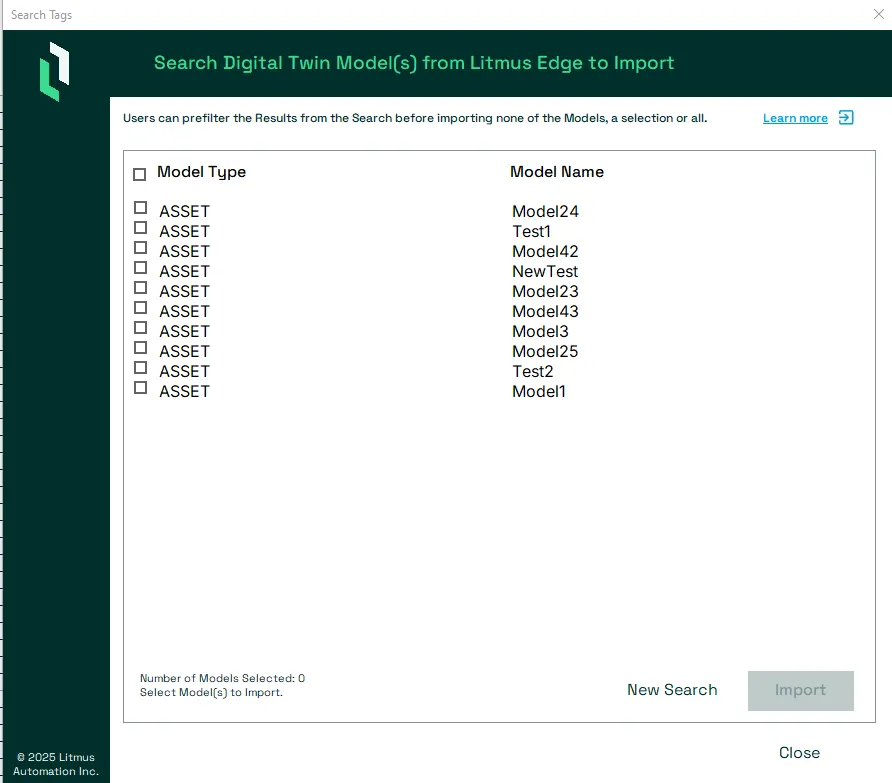

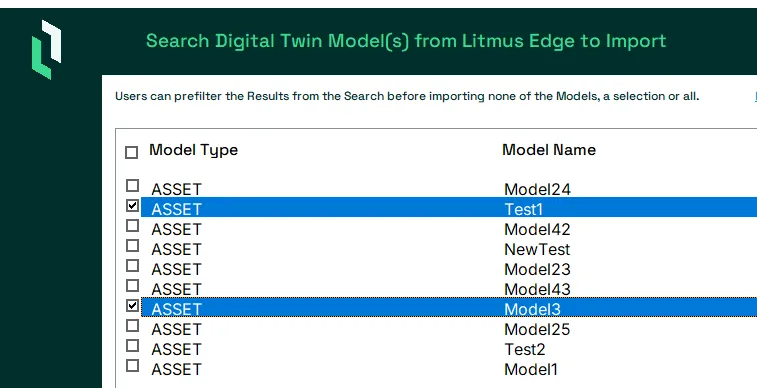

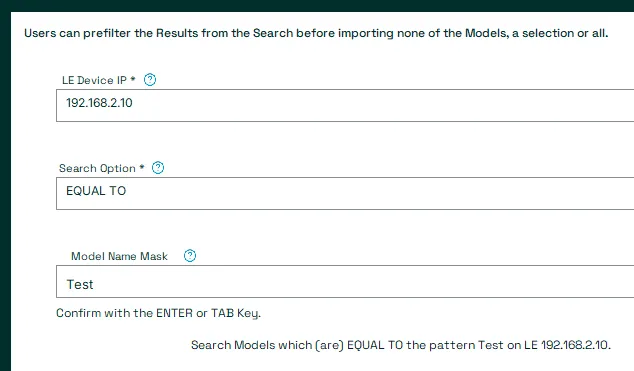

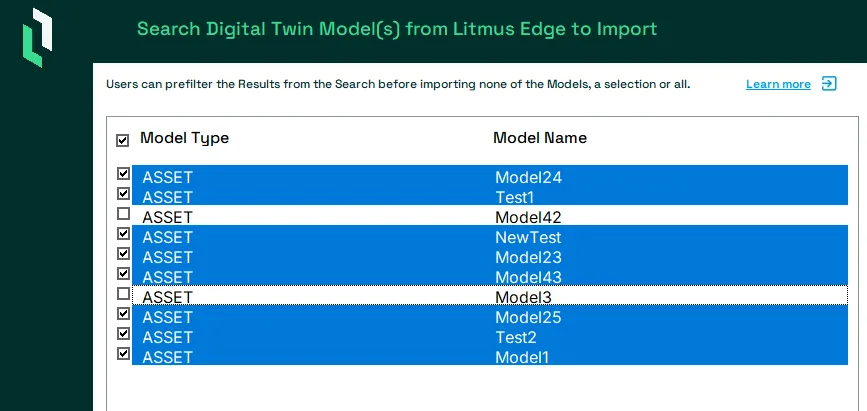

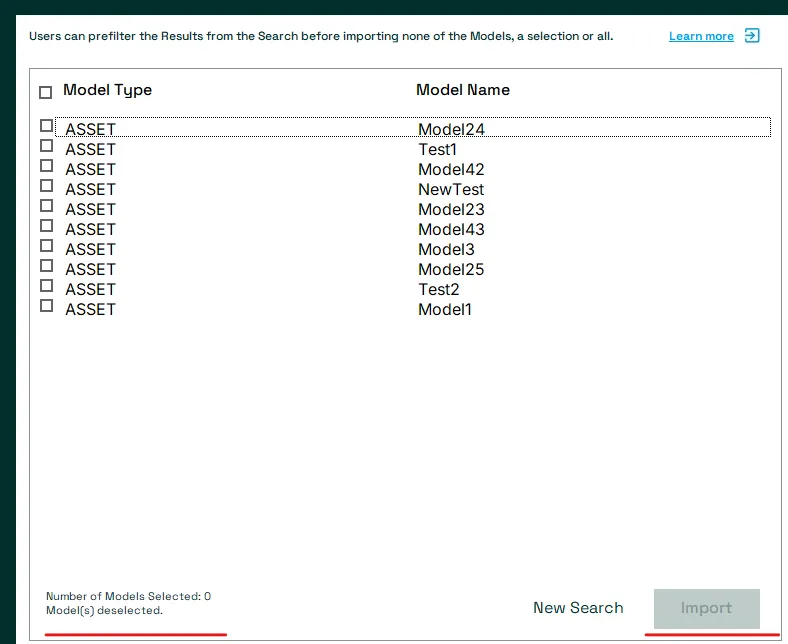

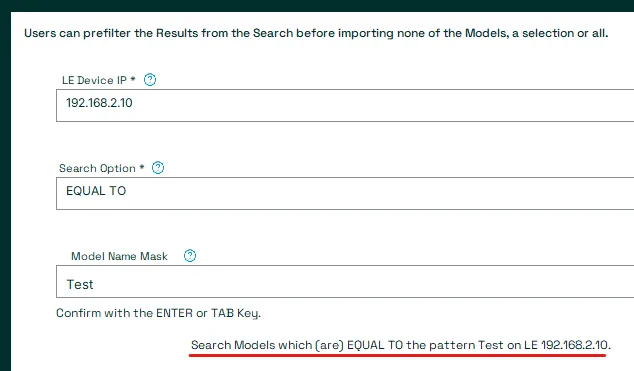

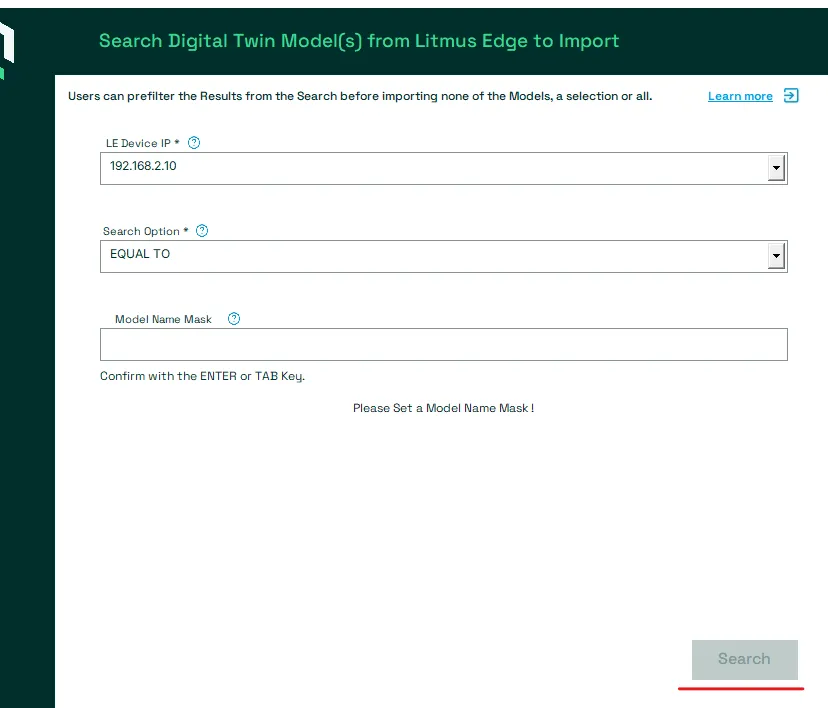

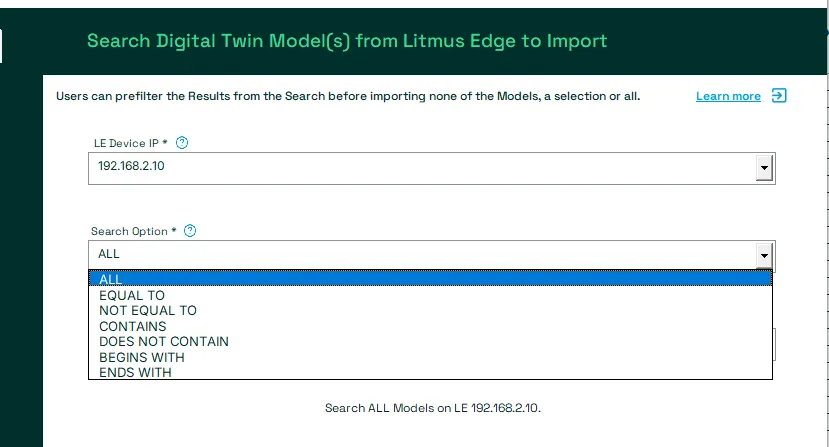

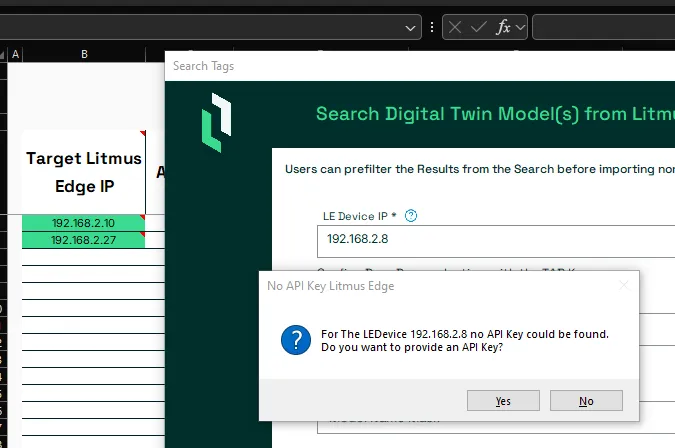

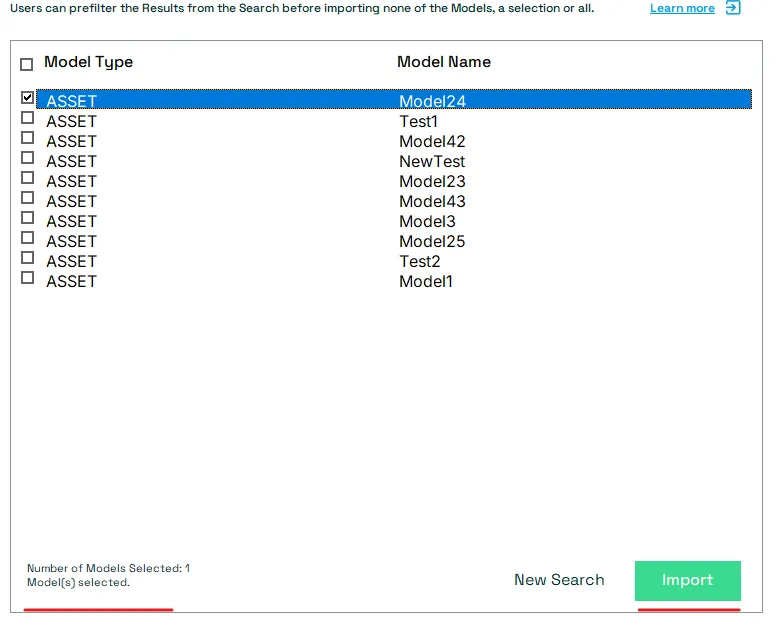

the import model(s) wizard allows users to search for digital twin models on a litmus edge and select which of these model(s) they want to import the model settings into the dt model management tool open the import model(s) wizard to open the import model(s) wizard, press the import model(s) button from the litmusconfiguration ribbon notes to open the import model(s) wizard, the tool will verify that it is not in the status offline digitaltwin not responding no le set no api key if the tool found to be in one of these states, a message is displayed setting up the search filter to search for digital twin model(s), the user can setup a filter to apply to the search this allows them to reduce the list for potentially imports to only the model(s) they are truly interested in select the le device ip tool set to one le if the tool is set to connect to one le , the user will not be able to change or select the le device ip tool set to multiple le if the tool is set to connect to multiple le, the user can select which litmus edge to search for, provided that more than one target litmus edge ip has been defined additionally users can also enter a litmus edge ipv4 which is not yet present in the sheet the tool will check if it does have an api key for the litmus edge ipv4 address if no api key is found, it will notify the user and request the api key press the yes button, provide the api key and press the save button set search option the tool provides a number of filter options the user can select from the include all do not apply any filter and return all model(s) defined in digitaltwin on the selected litmus edge equal to select all model(s) whith a model name equal to my import model(s) wizard /#define the model name mask not equal to select all model(s) whith a model name not equal to my import model(s) wizard /#define the model name mask contains select all model(s) where the model name contains the value from my import model(s) wizard /#define the model name mask does not contain select all model(s) where the model name does not contain the value from my import model(s) wizard /#define the model name mask begins with select all model(s) where the model name begins with the value from my import model(s) wizard /#define the model name mask ends with select all model(s) where the model name ends with the value from my import model(s) wizard /#define the model name mask notes all search options except all , require a value for the import model(s) wizard /#define the model name mask define the model name mask for any search option except all , a mask is required to apply to the model name example selected search option set to equal to and model name mask set to test the import wizard will show what filter will be applied initiate the search if all settings are correctly set, the search button will be set to green and allows to initiate the search to initiate the search press the green search button notes if the filter is invalid, the search button will be grayed out and can not be used example no model name mask has been defined for the search option equal to importing model(s) after the search has been initiated, the results are shown in a list box the user will see the model type as well as the model name notes in case a filter returned no model(s), the user is informed and can initiate a new search selecting all model(s) to select all model(s) for import, check the checkbox of the header row unselecting all model(s) to unselect all model(s) for import, uncheck the checkbox of the header row select individual models to select individual models for import, check their respective row or checkbox unselect individual models to unselect individual models for import, uncheck their respective checkbox or row import model(s) if at least one model has been selected from the list, the import button will change to green and an import can be initiated to initiate an import press the green import button if no model(s) have been selected, the import button will be greyed out notes the import wizard will show how many model(s) have been selected in the left lower corner after an import finished once all the selected model(s) have been imported, the user is informed about the result and has three further options close the wizard this will end the import and the user can proceed with their desired actions on the sheet set up a new import model(s) wizard /#setting up the search filter to execute a new search import model(s) wizard /#importing models from the list they previously hadn't selected for another import
